Husqvarna PPRT5KA (1995) Tiller

Model: PPRT5KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

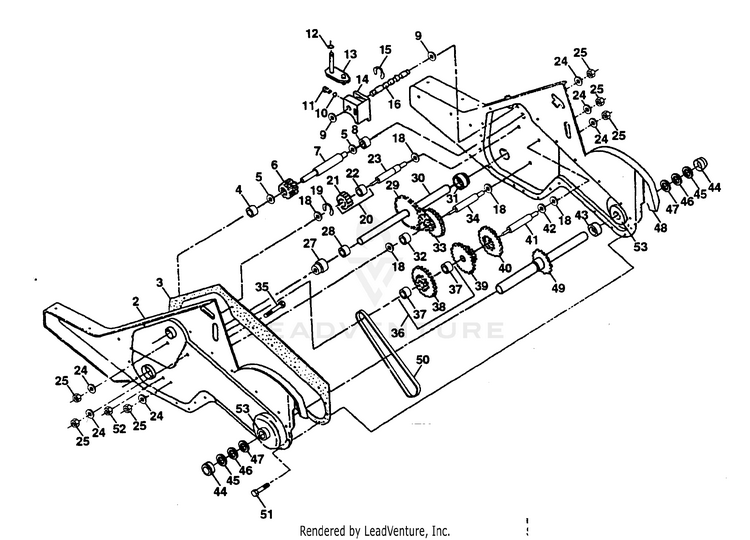

TRANSMISSION

...
...
1
TRANSMISSON.SERV.TILLER HUS-532181098
...
2
TRANSMISSON.SERV.TILLER HUS-532181098
...
3
GASKET, GEARCASE HUS-532431022
...
4
Bearing, Needle HUS-532005020
...
5
Washer, Thrust 5/8 x 1.10 x 1/32 HUS-532001370
...
6
Pinion, Input HUS-532137335
...
7
Shaft, Input HUS-532102110
...
8
BEARING HUS-532004895
...
9
Washer, Seal HUS-532102136
...
10
HUS-532100482
...
11
Spring, Shift, Fork HUS-532100371
...
12
O-Ring HUS-532106160
...
13
Arm, Shift HUS-532142145
...
14
Fork, Shift HUS-532008353
...
15
Ring, Klip HUS-812000039
...
16
SHAFT.SHIFTER.TILLER HUS-532154466
...
18
Washer HUS-532004358
...
19
Ring, Klip HUS-812000040
...
20
Gear, Assembly, Reverse Idler (Includes Key Nos. 21 and 22) HUS-532102114
...
21
Gear, Reverse Idler HUS-532102115
...
22
Bearing, Needle HUS-532006803
...
23
Shaft, Reverse Idler HUS-532102111
...
24
LOCKWASHER.7/16 HUS-539990247
...
25
Nut, Hex 7/16-20 HUS-873610700
...
27
BEARING.GROUND.DRIVE HUS-532431219
...
28
Spacer 0.765 x 1.125 x 1.23 HUS-532106390
...
29
Chain #35-50 Pitch HUS-532102134
...
30
GROUND SHAFT ASS'Y HUS-532150737
...
31
Bearing, Shaft, Ground Drive R.H. HUS-532143008
...
32
Spacer 0.70 x 1.00 x 1.150 HUS-532106388
...
33
Sprocket and Gear Assembly HUS-532102121
...
34
Shaft, Reduction (2nd) HUS-532102112
...
35
Screw, Whiz, Lock 5/16-18 x 3-1/2 HUS-532102101
...
36
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) HUS-532137300
...
37
BEARING HUS-532004422
...
38
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) HUS-532137300
...
39
CLUSTER GEAR KIT HUS-532131527
...
40
Gear, Reverse HUS-532105346
...
41
Shaft, Reduction (1st) HUS-532008358
...
42
Washer, Thrust HUS-532004220
...
43
Spacer 1.01 x 1.75 x 0.760 HUS-532106146
...
44
SEAL ASM, OIL HUS-532155236
...
45
Ring, Spiral HUS-532102144
...
46
Seal, Ring, Rubber HUS-532140576
...
47
OIL SEAL HUS-532007393
...
48
GEARCASE RH W/BRG HUS-532150700
...
49
KIT.TINE.SHAFT.SERVICE HUS-532432058
...
50
Chain, Roller #50-50 Pitch HUS-532106147
...
51
HCS.1/4-20.X1/2 HUS-539990071
...
52
Nut, Hex 5/16-18 HUS-873220500
...
53
BEARING KIT HUS-532165140
...
xx
Grease, Plastilube #1 Not Shown. HUS-532006066
