Husqvarna PPRT5KA (1995) Tiller

Model: PPRT5KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

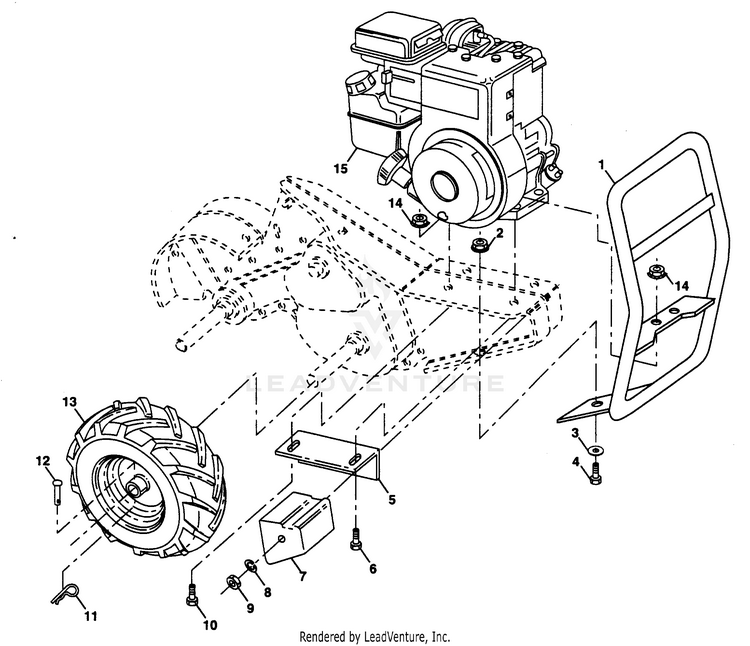

MAINFRAME, RIGHT SIDE

...
...
1
BUMPER ASM TILLER HUS-532146934
...
2
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
3
WASHER - 15X7.3X1.6 HUS-734116301
...
4
HCS.5/16-18X3/4 HUS-539976934
...
5
Bracket, Reinforcement HUS-532102332
...
6
Bolt, Hex 5/16-18 x 2 HUS-874760532
...
7
Counter Weight, R.H. HUS-532102173
...
8
WASHER.3/8 HUS-539990118
...
9
Nut, Hex 3/8-16 HUS-873220600
...
10
HCS.5/16-18X1 1/2.GR5 HUS-539976935
...
11
RETAINER M HUS-532004497
...
12
Rivet, Drilled HUS-532126875
...
13
Tire HUS-532005015
...
xx
Rim HUS-532128952
...
xx
Stem Valve HUS-532065139
...
14
Nut Lock Hex W/Ins. 5/16-18 Unc P Standard Hardware, obtain locally. HUS-873800500
