Husqvarna PPRT55C (1998) Tiller

Model: PPRT55C (1998)

Back To Assemblies

Save Part Not Listed?
product name

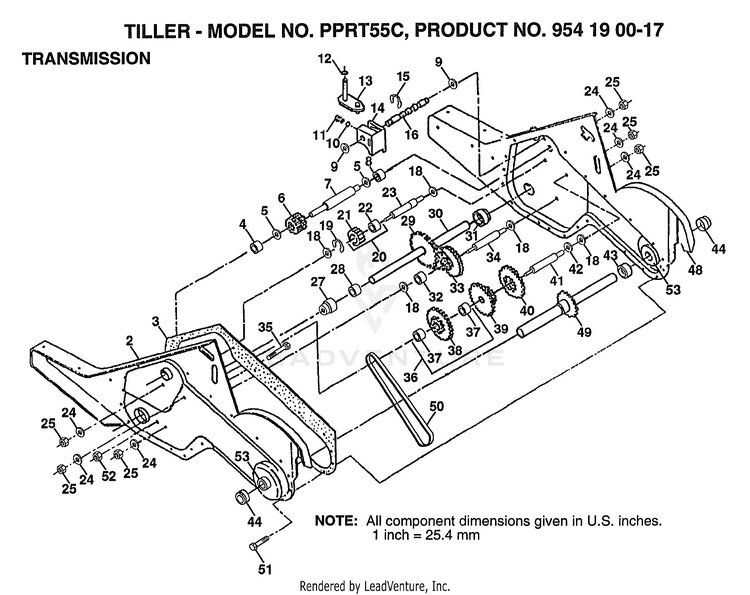

TRANSMISSION

...
...
1
SUB= 165805 HUS-154354
...
2
GEARCASE LH W/BRG HUS-150698
...
3
GASKET TI HUS-106211X
...
4
NEEDLE BRNG LT HUS-5020J
...
5
"T, BEARING" HUS-1370H
...
6
GEAR PINION INPUT HUS-137335
...
7
"SHAFT.INPUT.""D""" HUS-145101
...
8
"TI, BEARING" HUS-4895H
...
9
WASHER SEAL HUS-154467
...
10
SUB= 100482K HUS-7392M
...
11
SPRING-SHIFT CRT HUS-100371K
...
12
O-RING TI HUS-106160X
...
13
BRACKET ASM SHIFT HUS-142145
...
14
SHIFT FORK TI HUS-8353J
...
15
KLIP RING HUS-12000039
...
16
SHAFT.SHIFTER HUS-154466
...
18
WASHER HUS-4358J
...
19
KLIP RING HUS-12000040
...
20
GEAR ASSY CRT HUS-102114X
...
21
GEAR-REV IDLR CRT HUS-102115X
...
22
NEEDLE BEARING TI HUS-6803J
...
23
SHAFT CRT HUS-102111X
...
24
LOCKWASHER HUS-10040700
...
25
NUT.ASF.HEX.7/16 HUS-73610700
...
27
BEARING.SHAFT.LH. HUS-143009
...
28
BUSHING TI HUS-106390X
...
29
CHAIN CRT HUS-102134X
...
30
GROUND SHAFT ASSY HUS-150737
...
31
BEARING.SHAFT.RH. HUS-143008
...
32
SPACER TI HUS-106388X
...
33
SPRCKT 8 GEAR CRT HUS-102121X
...
34
SHFT 2ND RED. CRT HUS-102112X
...
35
SCRW WHIZ LOK CRT HUS-102101X
...
36
SPROCKET.ASM.W/BR HUS-154355
...
37
BEARING HUS-4422J
...
38
SUB= 154355 HUS-154356
...
39
GEAR TI HUS-105345X
...
40
GEAR TI HUS-105346X
...
41
REDUCTION SHFT TI HUS-8358J
...
42
BRNG RACE HUS-4220R
...
43
SPACER TI HUS-106146X
...
44
SEAL ASM-OIL HUS-155236
...
48
GEARCASE RH W/BRG HUS-150700
...
49
TINE SHAFT HUS-132688
...
50
CHAIN.50 LINK TI HUS-106147X
...
51
SCREW HUS-17720408
...
52
NUT.HEX.5/16-18 HUS-73220500
...
53
SUB= 918122204X HUS-122204X
...
xx
GREASE PREMIUM-1 HUS-6066J
