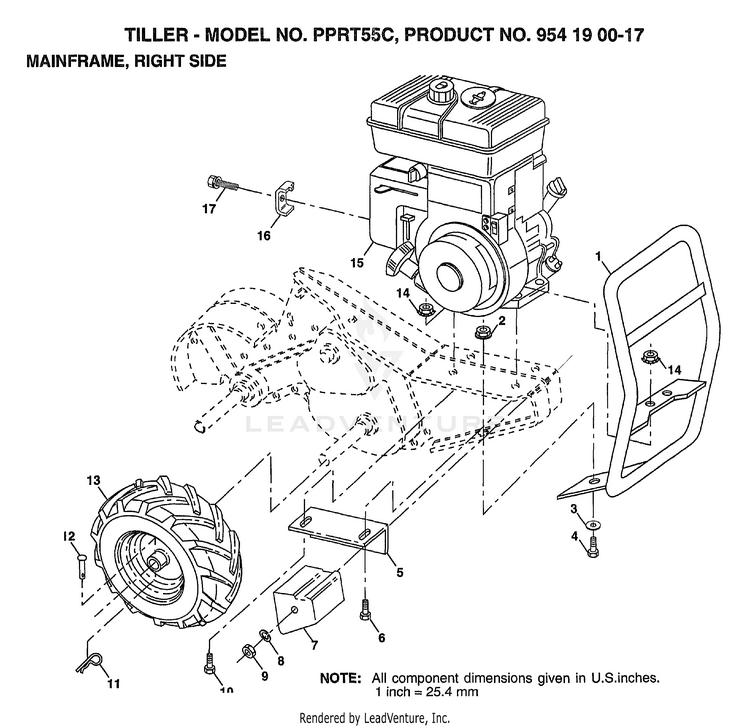

Husqvarna PPRT55C (1998) Tiller

Model: PPRT55C (1998)

Back To Assemblies

Save Part Not Listed?
product name

MAINFRAME, RIGHT

...
...
1
BUMPER HUS-162385
...
2
LOCKNUT TI HUS-73970500
...
3
WASHER HUS-19111116
...
4
BOLT HUS-74760512
...
5
BRACKET RH CRT HUS-102332X
...
6
BOLT HUS-74760532
...
7
COUNTERWEIGHT CRT HUS-102173X
...
8
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
9
NUT.HEX.3/8-16UNC HUS-73220600
...
10
BOLT.HEX.5/16-1.5 HUS-74760524
...
11
RETAINER M HUS-4497H
...
12
RIVET DRILLED HUS-126875
...
13
TIRE TI HUS-5015J
...
13
SUB= 128952 HUS-124366X
...
13
SUB= 65139 HUS-795R
...
14
NUT HUS-73510500
...
16
CLAMP HUS-221535
...
17
SCREW HUS-94906
