Husqvarna PPRT55A (1997) Tiller

Model: PPRT55A (1997)

Back To Assemblies

Save Part Not Listed?
product name

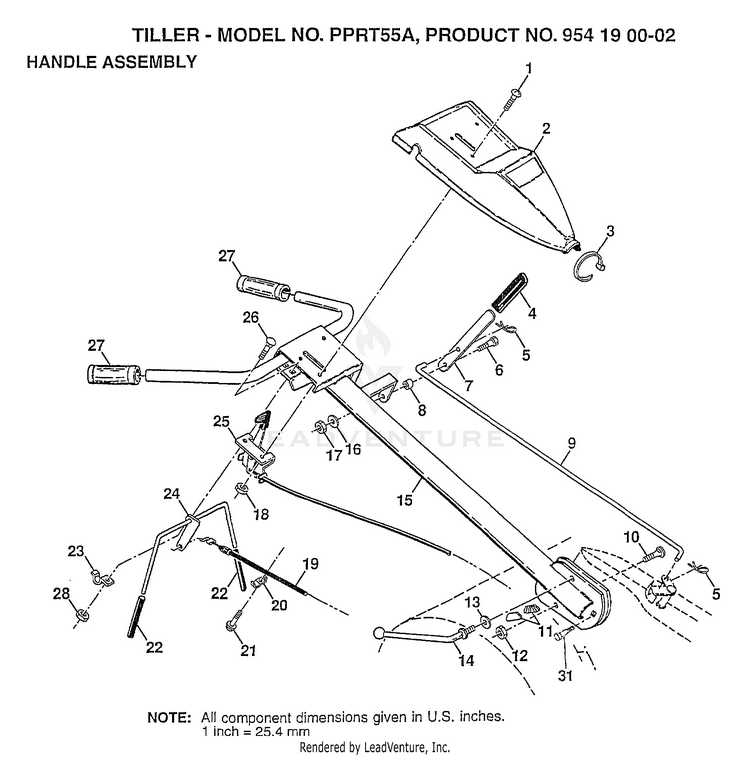

HANDLE ASSEMBLY

...
...
1
SCREW.PNHD.10-24 HUS-71191008
...
2
PANEL, CONTROL HUS-126951
...
3
TIE, CABLE HUS-104164
...
4
GRIP HANDLE HUS-124797X
...
5
SUB= 4497H HUS-124788X
...
6
SHOULDER BOLT ST HUS-81328
...
7
SUB= 109335X HUS-109335
...
8
GROMMET, RUBBER HUS-109313
...
9
ROD SHIFT HUS-109337
...
10
BOLT D HUS-72110608
...
11
LOCK, HANDLE HUS-109229
...
12
LOCKNUT HUS-73930600
...
13
WASHER CRT HUS-19131611
...
14
LEVER, LOCK HANDLE HUS-109228
...
15
SUB= 150256X431 HUS-150256
...
16
LOCKWASHER HUS-10040400
...
17
SUB= 50675 HUS-73220400
...
18
NUT HUS-73731000
...
19
CABLE.CLUTCH.48.Z HUS-147668
...
20
CONDIUT CLIP T HUS-9484R
...
21
SUB= 750097 HUS-86777
...
22
GRIP BAR CONTROL HUS-102604
...
23
CLAMP BAR CONTROL HUS-102744
...
24
BAR ASSEMBLY CONTROL HUS-105216
...
25
CONTROL THROTTLE HUS-127012
...
26
BOLT HUS-72140404
...
27
SUB= 624A78 HUS-9266R
...
28
NUT HUS-73510400
...
31
BOLT PIVOT HUS-150696
