Husqvarna PPRT55 (1999 & Before) Tiller

Model: PPRT55 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

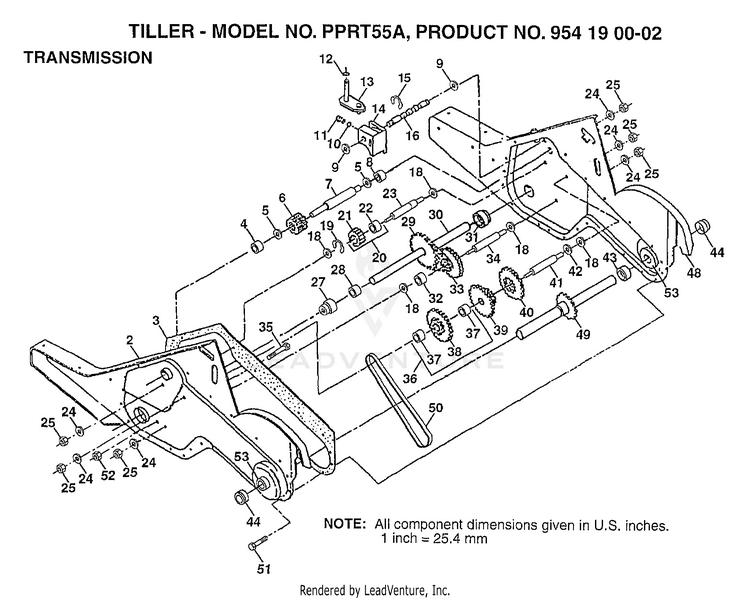

TILLER TRANSMISSION

...
...
1
SUB= 165805 HUS-154354
...
2
GEARCASE LH W/BRG HUS-150698
...
3
GASKET, GEARCASE HUS-106211
...
4
NEEDLE BRNG LT HUS-5020J
...
5
"T, BEARING" HUS-1370H
...
6
GEAR PINION INPUT HUS-137335
...
7
"SHAFT.INPUT.""D""" HUS-145101
...
8
BEARING NEEDLE HUS-124792X
...
9
WASHER SEAL HUS-154467
...
10
BALL, STEEL HUS-124697X
...
11
SPRING SHIFT FORK HUS-100371
...
12
O-RING HUS-106160
...
13
BRACKET ASM SHIFT HUS-142145
...
14
SHIFT FORK TI HUS-8353J
...
15
KLIP RING HUS-12000039
...
16
SHAFT.SHIFTER HUS-154466
...
18
WASHER HUS-4358J
...
19
KLIP RING HUS-12000040
...
20
GEAR ASSEMBLY HUS-102114
...
21
GEAR REVERSE IDLER HUS-102115
...
22
NEEDLE BEARING TI HUS-6803J
...
23
SHAFT, REVERSE IDLER HUS-102111
...
24
LOCKWASHER HUS-10040700
...
25
NUT.ASF.HEX.7/16 HUS-73610700
...
27
BEARING.SHAFT.LH. HUS-143009
...
28
SPACER HUS-106390
...
29
CHAIN HUS-102134
...
30
GROUND SHAFT ASSY HUS-150737
...
31
BEARING.SHAFT.RH. HUS-143008
...
32
SPACER HUS-106388
...
33
SPROCKET AND GEAR ASSEMBLY HUS-102121
...
34
SHAFT REDUCTION HUS-102112
...
35
SCREW WHIZ LOCK HUS-102101
...
36
SPROCKET.ASM.W/BR HUS-154355
...
37
BEARING NEEDLE HUS-124791X
...
38
SUB= 154355 HUS-154356
...
39
GEAR CLUSTER RED 1ST AND 2ND HUS-105345
...
40
GEAR REVERSE HUS-105346
...
41
REDUCTION SHFT TI HUS-8358J
...
42
BRNG RACE HUS-4220R
...
43
SPACER HUS-106146
...
44
SEAL ASM-OIL HUS-155236
...
48
GEARCASE RH W/BRG HUS-150700
...
49
TINE SHAFT HUS-132688
...
50
CHAIN ROLLER HUS-106147
...
51
SCREW HUS-17720408
...
52
NUT.HEX.5/16-18 HUS-73220500
...
53
KIT BEARING HUS-122204
...
xx
GREASE PREMIUM-1 HUS-6066J
