Husqvarna PPRT55 (1999 & Before) Tiller

Model: PPRT55 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

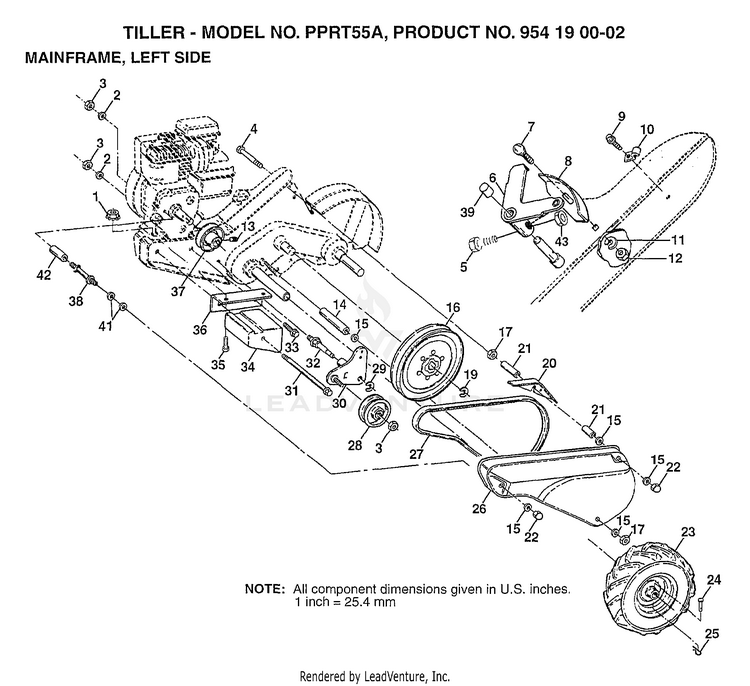

TILLER MAINFRAME LEFT SIDE

...
...
1
NUT HUS-73510500
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
NUT.HEX.3/8-16UNC HUS-73220600
...
4
BOLT TI HUS-74930568
...
5
"SCREW-LEVER,SHI" HUS-154734
...
6
LEVER SHIFT HUS-110111
...
7
BOLT HUS-72110404
...
8
PANEL TI HUS-8700J
...
9
SUB= 750097 HUS-86777
...
10
CONDIUT CLIP T HUS-9484R
...
11
LOCKWASHER HUS-10040400
...
12
SUB= 50675 HUS-73220400
...
13
SET SCREW HUS-23230506
...
14
SPACER, SPLIT HUS-120938
...
15
WASHER HUS-19111116
...
16
SHEAVE, TRANSMISSION HUS-145102X
...
17
NUT.HEX.5/16-18 HUS-73220500
...
19
SUB= 2267J HUS-12000028
...
20
GUARD, PINCH POINT HUS-110653
...
21
SPACER SPLIT HUS-145216X
...
22
NUT CAP HUS-104214
...
23
TIRE TI HUS-5015J
...
23
SUB= 128952 HUS-124366X
...
23
TIRE VALVE HUS-124718X
...
24
RIVET DRILLED HUS-126875
...
25
SUB= 4497H HUS-124788X
...
26
GUARD BELT HUS-125408X
...
27
BELT-V HUS-132801
...
28
PULLEY, IDLER HUS-104679
...
29
KLIP RING HUS-12000032
...
30
BRACKET, IDLER HUS-105611
...
31
BOLT, HEX HUS-102384
...
32
SHAFT, IDLER ARM HUS-102141
...
33
BOLT HUS-74760616
...
34
COUNTERWEIGHT HUS-102383
...
35
BOLT HUS-74760532
...
36
BRACKET, REINFORCEMENT HUS-102331
...
37
ENGINE PULLEY HUS-130812
...
38
STUD.GUARD.BELT HUS-145822
...
39
CAP PLUNGER BLACK HUS-140062
...
41
WASHER HUS-19111610
...
42
SPACER HUS-151004
...
43
LOCKNUT HUS-69180
