Husqvarna PPRT55 (1999 & Before) Tiller

Model: PPRT55 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

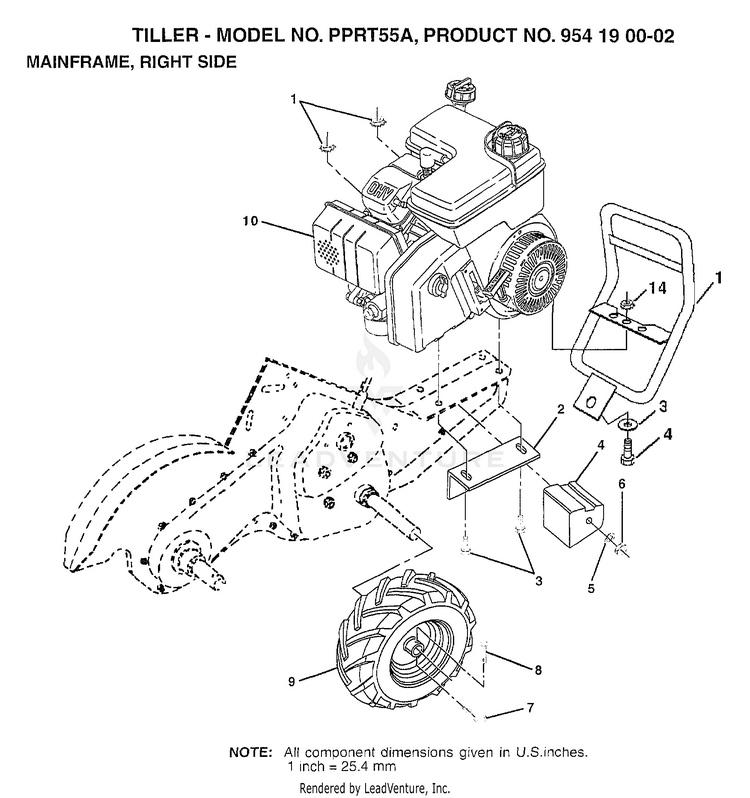

TILLER MAINFRAME RIGHT SIDE

...
...
1
BUMPER HUS-157976
...
2
LOCKNUT TI HUS-73970500
...
3
WASHER HUS-19111116
...
4
BOLT HUS-74760512
...
5
BRKT REINFORCEMENT HUS-102332
...
6
BOLT HUS-74760532
...
7
COUNTER WEIGHT HUS-102173
...
8
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
9
NUT.HEX.3/8-16UNC HUS-73220600
...
10
BOLT.HEX.5/16-1.5 HUS-74760524
...
11
SUB= 4497H HUS-124788X
...
12
RIVET DRILLED HUS-126875
...
13
TIRE TI HUS-5015J
...
13
SUB= 128952 HUS-124366X
...
13
TIRE VALVE HUS-124718X
...
14
NUT HUS-73510500
