Husqvarna PPRGT20H50A (1999) Tractor

Model: PPRGT20H50A (1999)

Back To Assemblies

Save Part Not Listed?
product name

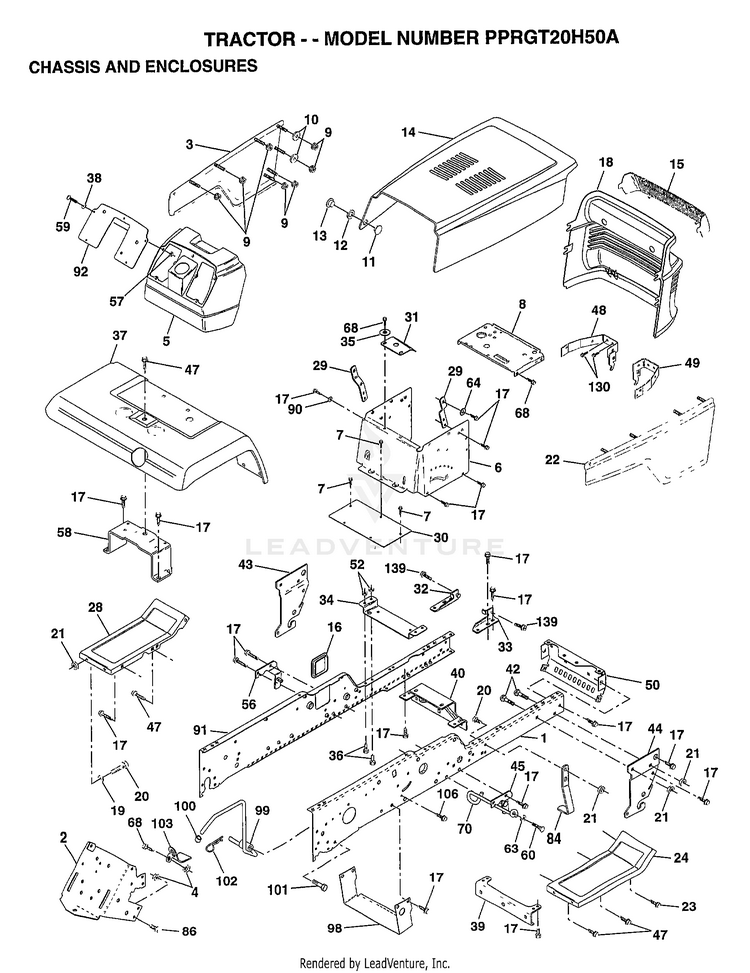

CHASSIS/ENCLOSURES

...
...
1
"RAIL,FRAME RH" HUS-150253
...
2
DRAWBAR GT HUS-140506
...
3
PANEL.ASM.SIDE.LHG HUS-136671X428
...
4
NUT GTV HUS-73680700
...
5
DASH.PLASTIC.BLK HUS-145203
...
6
DASH LOWER HUS-157882
...
7
SCREW HUS-17720408
...
8
SUPPORT.DASH.BTRY HUS-145166
...
9
PAL NUT LT HUS-108067X
...
10
WASHER HUS-19092016
...
11
RIVET.RATCHET.MAL HUS-137270
...
12
WASHER.NYLON HUS-137269
...
13
RIVET.RATCH.FEMAL HUS-137271
...
14
HOOD.ASM.PNT HUS-136673X428
...
15
LENS.YT.GT.SEARS HUS-136374X599
...
16
COVER ACCESS HUS-121794X
...
17
SCREW HUS-17490612
...
18
SUB= 136375 HUS-136373X428
...
19
WASHER HUS-19131312
...
20
BOLT HUS-74760616
...
21
NUT HUS-73800600
...
22
PANEL ASM, SIDE RH HUS-136670X428
...
23
SCREW GTV HUS-17490616
...
24
FOOTREST.RH.LT/GT HUS-145243X428
...
28
FOOTREST PNT LH HUS-145244X428
...
29
BRACKET.SUPT.DASH HUS-145349
...
30
SADDLE.HYDRO.95 HUS-145052
...
31
BRKT SUPT 1-PC VG HUS-161419
...
32
BKRT.PIVOT.CHASSIS.LH HUS-161327
...
33
BKRT.PIVOT.CHASSIS.RH HUS-161326
...
34
BRACKET.ENG.SUPT. HUS-142131
...
35
WASHER HUS-19111116
...
36
BOLT HUS-74780512
...
37
FENDER HUS-167287X428
...
38
WASHER PM HUS-19091216
...
39
BRACKET.AXLE.FRT. HUS-136961
...
40
"BRKT SUPPORT,AXLE" HUS-156111
...
42
SUB= 72110608 HUS-72140608
...
43
BRACKET.SUS.FT.LH HUS-136939
...
44
BRACKET.SUS.FT.RH HUS-136940
...
45
BRACKET.SUSP.RH. HUS-154913
...
47
SCREW LT HUS-17490608
...
48
BRKT ASM PIVOT LH HUS-157105
...
49
BRKT ASM PIVOT RH HUS-157107
...
50
"BRKT CHASSIS,FRNT" HUS-152728
...
52
SUB= 73690500 HUS-73680500
...
56
BRACKET.SUSP.LH. HUS-154914
...
57
NUT HXKEP 1/4X20 HUS-73640400
...
58
BRKT.ASM.FENDER HUS-137113
...
59
SCREW HUS-74180412
...
60
SCREW HUS-17490620
...
63
WASHER HUS-19131614
...
64
WASHER.SERRATED. HUS-144283
...
68
SCREW LT HUS-17490508
...
70
GUIDE.BELT.MID.SP HUS-137159
...
84
STOP.OVER.CENTER HUS-142992
...
86
BOLT HUS-74760716
...
90
LOCKWASHER HUS-11050600
...
91
"RAIL FRAME,LH" HUS-156586
...
92
PLATE.SIKLSCREEN.DASH HUS-166680X010
...
98
BRACKET SKID CHAS HUS-140503
...
99
ROD BYPASS HUS-140871
...
100
CAP HUS-124236X
...
101
SCREW LT HUS-17490628
...
102
RETAINER M HUS-4497H
...
103
LOCK BYPASS BRKT HUS-142273
...
106
SUB= 157722 HUS-138776
...
120
WASHER HYT HUS-19131616
...
130
"SCREW,HWHD.HI-LO#13-16X3/4" HUS-164863
...
139
BOLT.SHOULDER.5/16-18 HUS-161330
...
xx
PLUG-DASH T HUS-8022J
