Husqvarna PPR20H46STA (1999) Tractor

Model: PPR20H46STA (1999)

Back To Assemblies

Save Part Not Listed?
product name

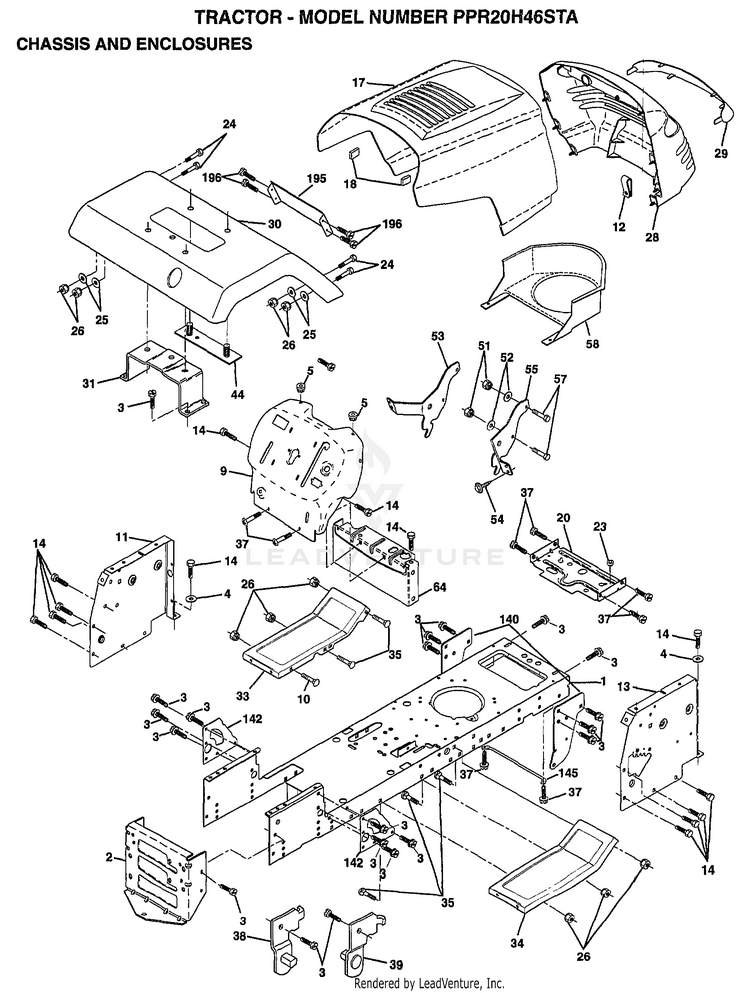

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.STLT.STAMPING HUS-166819
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
BUMPER-HOOD/DASH HUS-155272
...
9
DASH SLKSCR HUS-154793X010
...
10
SUB= 72110608 HUS-72140608
...
11
"PANEL-DASH,LH" HUS-155927
...
12
CLIP.TINNERMAN HUS-145660
...
13
PANEL.ASM.DASH.RH HUS-169118
...
14
SCREW LT HUS-17490608
...
17
"HOOD W/TRIM,MS428" HUS-159639X428
...
18
SUB= 532126938 HUS-126938X
...
20
"PLATE-MTG,BATT/FU" HUS-156437
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILL HUS-157428
...
29
GRILLE.LENS HUS-146654X599
...
30
FENDER.PNT.YTGT.WS. HUS-167270X428
...
31
BRKT.ASM.FENDER HUS-137113
...
33
FOOTREST PNT LH HUS-145244X428
...
34
FOOTREST.RH.LT/GT HUS-145243X428
...
35
BOLT HUS-72110606
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
44
STRAP ASM FENDER HUS-140675
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SCREW.HEX.WS.HD HUS-161464
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
AIR DUCT HUS-162266
...
64
DASH-LOWER HUS-154798
...
140
BRKT SUSPENSION HUS-158418
...
142
PLATE.REINFORCEMENT HUS-165867
...
145
"ROD POVOT,CHASSIS" HUS-156524
...
195
PANEL PNT FENDER YT/GT HUS-166822X428
...
196
SCREW CRT HUS-17580408
