Husqvarna PPR1742STA (1999) Tractor

Model: PPR1742STA (1999)

Back To Assemblies

Save Part Not Listed?
product name

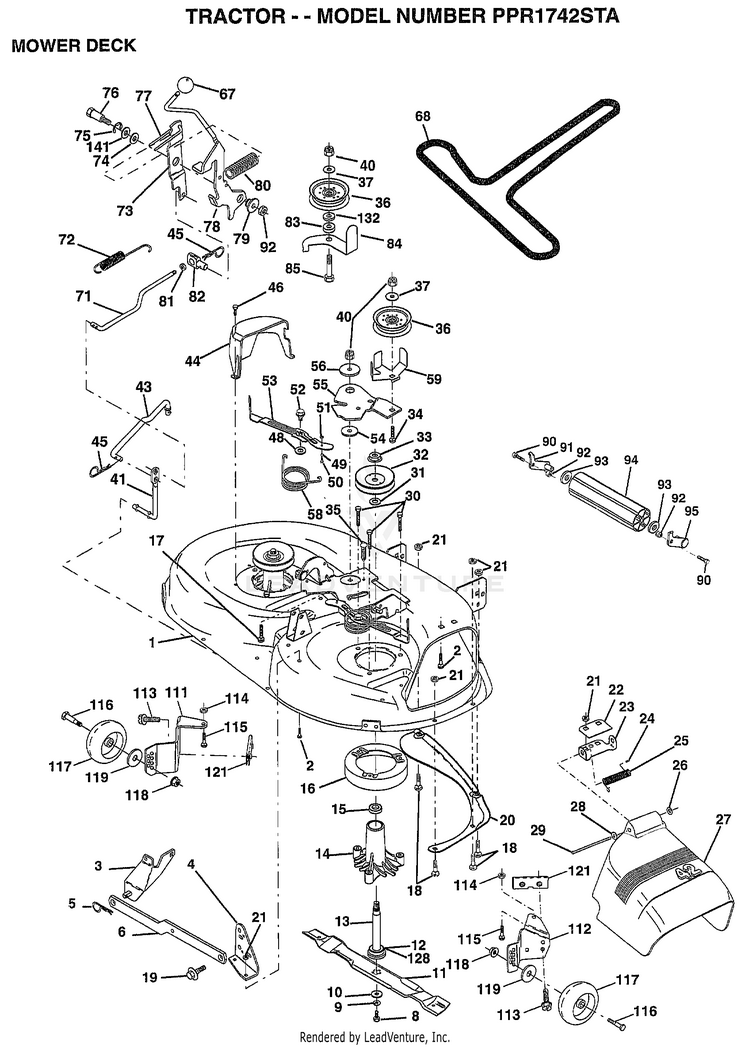

MOWER DECK

...
...
1
"HOUSING ASSY.42""" HUS-164961
...
2
BOLT HUS-72140506
...
3
BRKT ASM SWAY BAR HUS-138017
...
4
BRKT DECK SW BAR HUS-138440
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE.42"" HIPERF" HUS-138498
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
17
BOLT RDHD 3/8-16 HUS-72110610
...
18
BOLT HUS-72140505
...
19
BOLT SHD 5/16-18 HUS-132827
...
20
BAFFLE VORTEX 42 HUS-159770
...
21
SUB= 73690500 HUS-73680500
...
22
STIFFENER BRKT HUS-134753
...
23
DEFLECTOR BRKT HUS-131267
...
24
CAP-SLEEVE LT HUS-105304X
...
25
SPRING TORSION HUS-123713X
...
26
NUT PUSH M HUS-110452X
...
27
DEFLECTOR.SHIELD HUS-130968
...
28
WASHER HUS-19111016
...
29
HINGE ROD HUS-131491
...
30
"SCREW-THD ROLL,WA" HUS-157722
...
31
WASHER HUS-129963
...
32
PULLEY.MANDREL.42 HUS-153535
...
33
SUB= 139729 HUS-137266
...
34
BOLT HUS-72110614
...
35
XMAS TREE FASTNER HUS-133835
...
36
FLAT IDLER PULLEY HUS-131494
...
37
WASHER HUS-19131316
...
40
SUB= 73690600 HUS-73680600
...
41
PIVOT ROD HUS-133551
...
43
ROD CLUTCH W/NIBS HUS-140083
...
44
GUARD MAND LH BLK HUS-140088
...
45
RETAINER M HUS-4497H
...
46
SCREW.1/4-20X5/8 HUS-137729
...
48
HARD SMALL WASHER HUS-133944
...
49
ROLLER ASM-CAM HUS-155066
...
50
SHOULDER BOLT HUS-131340
...
51
LOCKNUT HUS-69180
...
52
BOLT.SHLD.5/16-18 HUS-139888
...
53
BRAKE PAD ARM ASM HUS-131845
...
54
HARDENED WASHER HUS-133943
...
55
ARM-IDLER HUS-155046
...
56
SPACER RETAINER HUS-122052X
...
58
SPRING TORSN BRAK HUS-140086
...
59
GUARD IDLER TUV HUS-141043
...
67
KNOB.RD.7/16-14 HUS-162132
...
68
BELT.V.T-PATH HUS-144200
...
71
ROD CLUTCH 38/42 HUS-142427
...
72
RETURN SPRING HUS-131870
...
73
CLUTCH ARM SECOND HUS-127847
...
74
WASHER HUS-121748X
...
75
RING HUS-12000029
...
76
SHOULDER BOLT HUS-128903
...
77
SPRING KEEPER HUS-127845
...
78
LEVER.ASM.CLUTCH HUS-160570
...
79
BUSHING HUS-127498
...
80
SPRING.CLUTCH.MWR HUS-153701
...
81
NUT HUS-73350600
...
82
TRUNION ADJ HUS-142028
...
83
WASHER HUS-120958X
...
84
"KEEPER-BELT,FIXED" HUS-156084
...
85
BOLT HUS-72140620
...
90
BOLT HUS-74760616
...
91
SUB= 532132274 HUS-132274
...
92
NUT HUS-73800600
...
93
WASHER HUS-19171416
...
94
SUB= 532132264 HUS-132264
...
95
SUB= 532132273 HUS-132273
...
111
BRACKET.GWHL.LH. HUS-155197
...
112
BRACKET.GWHL.RH. HUS-155198
...
113
SCREW HUS-17490512
...
114
NUT HUS-73510500
...
115
SUB= 872110504 HUS-72110504
...
116
BOLT M HUS-4898H
...
117
WHEEL.GUAGE HUS-165746
...
118
LOCKNUT HUS-73930600
...
119
WASHER HUS-19121414
...
121
BRACKET.EXTRD.GWL HUS-143723
...
128
WASHER.FELT. HUS-153390
...
132
WASHER GT HUS-19132203
...
141
WASHER .T HUS-6266H
...
xx
MANDREL ASM HUS-130794
...
xx
"DECK.MOWER SERV.42"" MECH" HUS-164962
