Husqvarna PPR14542A (1999) Tractor

Model: PPR14542A (1999)

Back To Assemblies

Save Part Not Listed?
product name

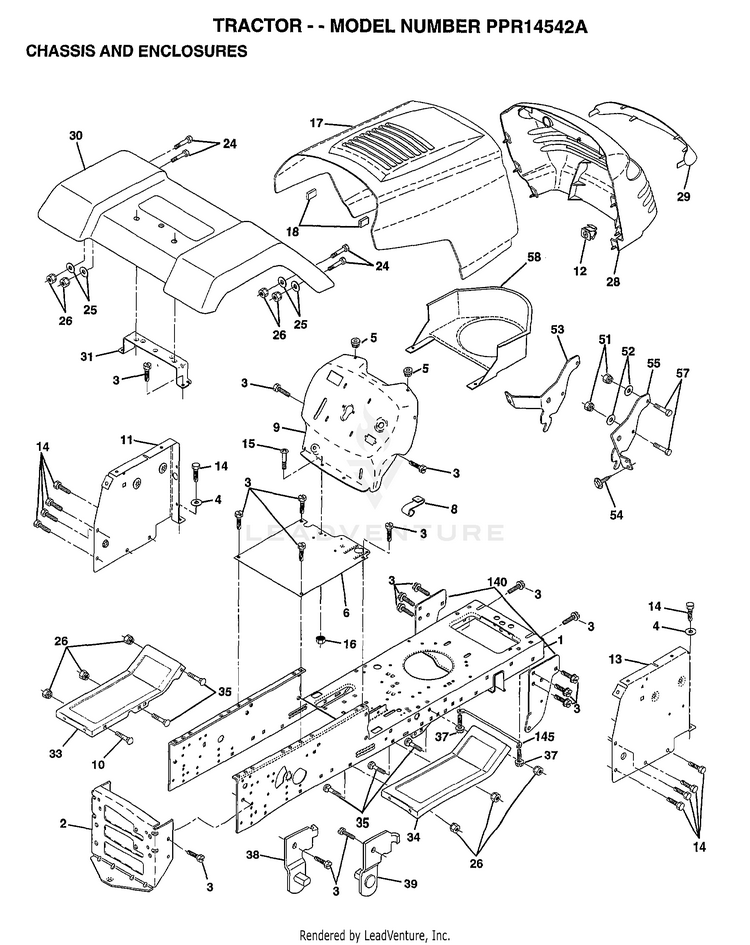

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.STAMPING HUS-165480
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
BUMPER-HOOD/DASH HUS-155272
...
6
SADDLE HUS-155923
...
8
CLIP.RETAINER HUS-155138
...
9
DASH.SILKSCREEN HUS-161938X012
...
10
SUB= 72110608 HUS-72140608
...
11
"PANEL-DASH,LH" HUS-155927
...
12
CLIP.TINNERMAN HUS-145660
...
13
PANEL.ASM.SLKSCR.DASH.RH HUS-169117X010
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
"HOOD W/TRIM,MS428" HUS-159639X428
...
18
SUB= 532126938 HUS-126938X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILL HUS-157428
...
29
GRILLE.LENS HUS-146654X599
...
30
FENDER ASM. HUS-166886X428
...
31
BRKT FENDER HUS-136619
...
33
FOOTREST PNT LH HUS-145244X428
...
34
FOOTREST.RH.LT/GT HUS-145243X428
...
35
BOLT HUS-72110606
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SCREW.HEX.WS.HD HUS-161464
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
AIR DUCT HUS-150127
...
140
BRKT SUSPENSION HUS-158418
...
145
"ROD POVOT,CHASSIS" HUS-156524
...
xx
PLUG BUTTON T HUS-5479J
