Husqvarna PPFT3KA (1995) Tiller

Model: PPFT3KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

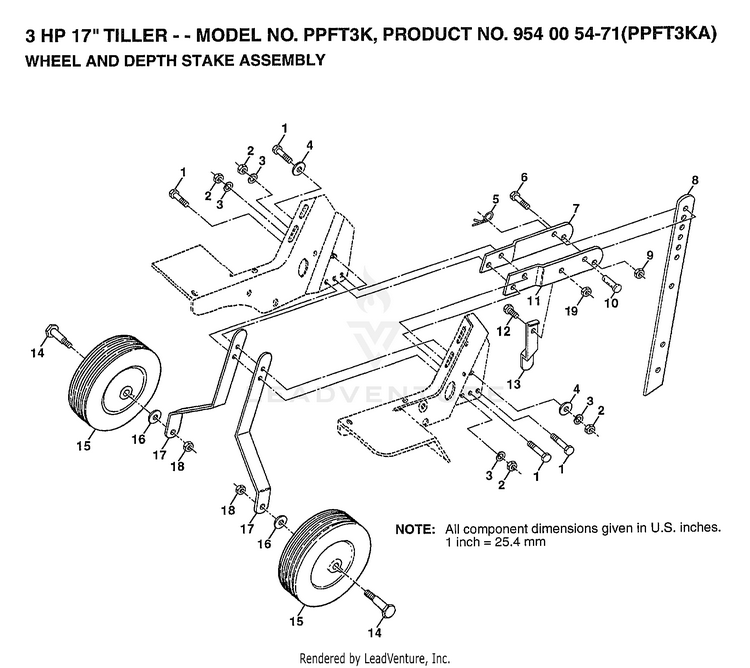

3 HP 17" WHEEL/DEPTH STAKE ASSEMBLY

...
...
1
Bolt 5/16-18 x 1-1/4 HUS-874520520
...
2
NUT, HEX HUS-873220500
...
3
WASHER, LOCK HUS-810040500
...
4
WASHER HUS-734117201
...
5
Retainer Spring HUS-532004921
...
6
BOLT, FIN, HEX 3/8-16 X 1-3/4 HUS-874780628
...
7
SUB= 318J HUS-532000318
...
8
SUB= 9193R500 HUS-532144541
...
9
Nut HUS-873680600
...
10
SUB= 9551R HUS-532009551
...
11
SUB= 317J500 HUS-532000317
...
12
HCS.5/16-18X3/4 HUS-539976934
...
13
SUB= 325J HUS-532000325
...
14
SUB= 121117X HUS-532121117
...
15
SUB= STD333760 HUS-532009186
...
16
WASHER HUS-734117201
...
17
SUB= 9193R500 HUS-532144538
...
18
NUT, CROWNLOCK 3/8-16 HUS-873680600
...
19
LOCKNUT HUS-873800500
