Husqvarna PPFT3KA (1995) Tiller

Model: PPFT3KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

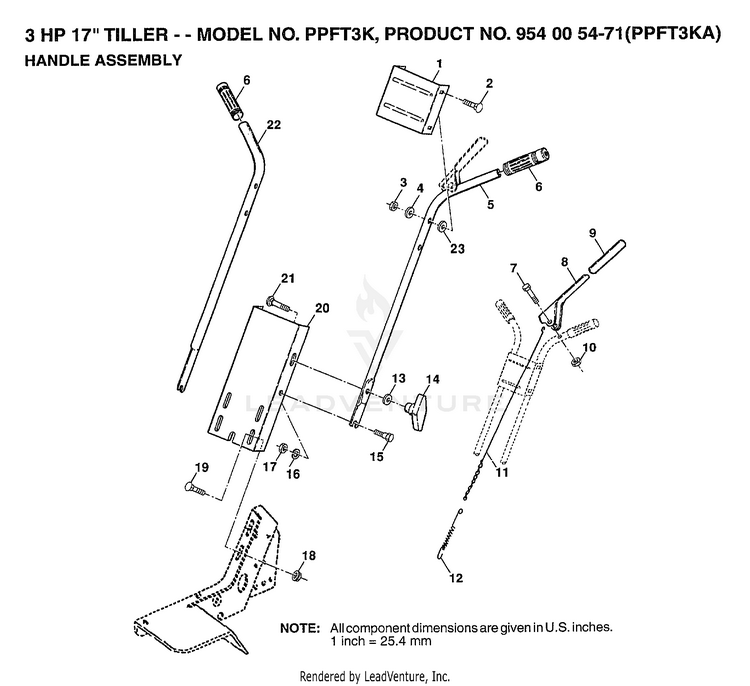

3 HP 17"/HANDLE ASSY

...
...
1
SUB= 137176X421 HUS-532125461
...
2
BOLT, CARRIAGE HUS-872140512
...
3
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
4
WASHER - 15X7.3X1.6 HUS-734116301
...
5
SUB= 154127 HUS-532144539
...
6
SUB= 140536 HUS-532140536
...
7
HCS.5/16-18X1 1/2.GR5 HUS-539976935
...
8
SUB= 3069J HUS-532003069
...
9
GRIP T HUS-532008206
...
10
SUB= 68478 HUS-532124949
...
11
SUB= 100382K HUS-532003067
...
12
SUB= 3070J HUS-532003070
...
13
WASHER HUS-734117201
...
14
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
15
SUB= 471J HUS-532000471
...
16
WASHER, LOCK HUS-810040500
...
17
NUT, HEX HUS-873220500
...
18
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
19
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
20
SUB= 9209R421 HUS-532125462
...
21
BOLT, CARRIAGE 5/16-18 X 1 HUS-872110508
...
22
SUB= 159764 HUS-532144540
...
23
WASHER HUS-734117201
