product name

Husqvarna PPFT35B (1998) Tiller

Model: PPFT35B (1998)

Save Part Not Listed?
product name

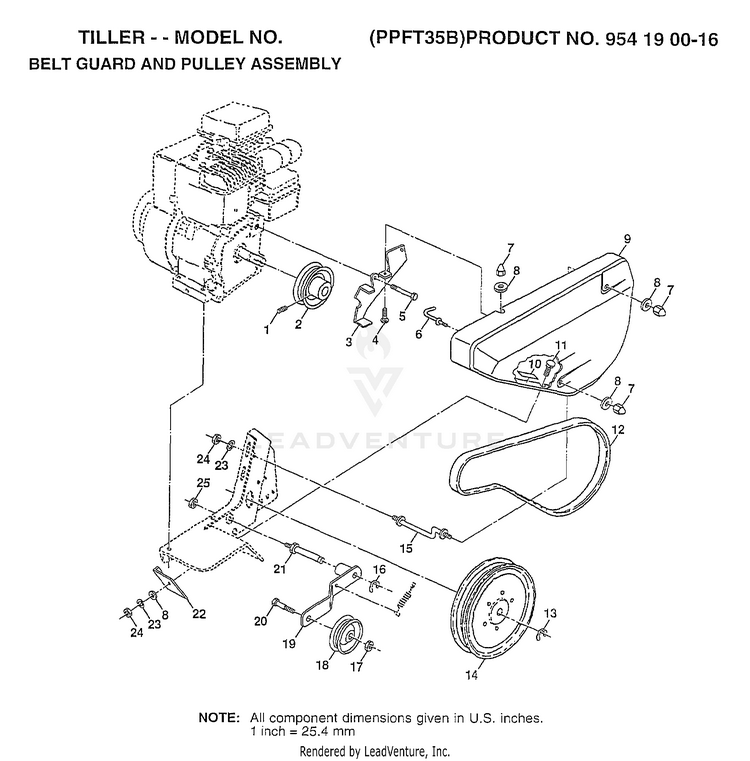

BELT GUARD AND PULLEY ASSEMBLY

...
...
1
SET SCREW HUS-23230506
...
2
SUB= 532130811 HUS-130811
...
3
BRKT ASSY HUS-122955X
...
4
BOLT HUS-72140404
...
5
BOLT.HEX.HEAD HUS-74610812
...
6
KEEPER BELT HUS-121463X
...
7
NUT-CAP TI HUS-104213X
...
8
WASHER HUS-19091016
...
9
BELT GUARD HUS-131157X505
...
10
PAD IDLER TI HUS-109227X
...
11
BOLT T HUS-72140406
...
12
SUB= TH3H390 HUS-9179R
...
13
SUB= 2267J HUS-12000028
...
14
PULLEY.TRANSMISSN HUS-151939
...
15
SUB= 532132213 HUS-132213
...
16
KLIP RING TI HUS-12000036
...
17
NUT HUS-73350600
...
18
"PULLEY,IDLER" HUS-161806
...
19
"ARM, IDLER" HUS-162290
...
20
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
21
SHAFT IDLER TI HUS-106968X
...
22
SHIELD-DIRT TI HUS-105358X
...
23
LOCKWASHER HUS-10040400
...
24
SUB= 50675 HUS-73220400
...
25
JAM NUT TI HUS-73350500

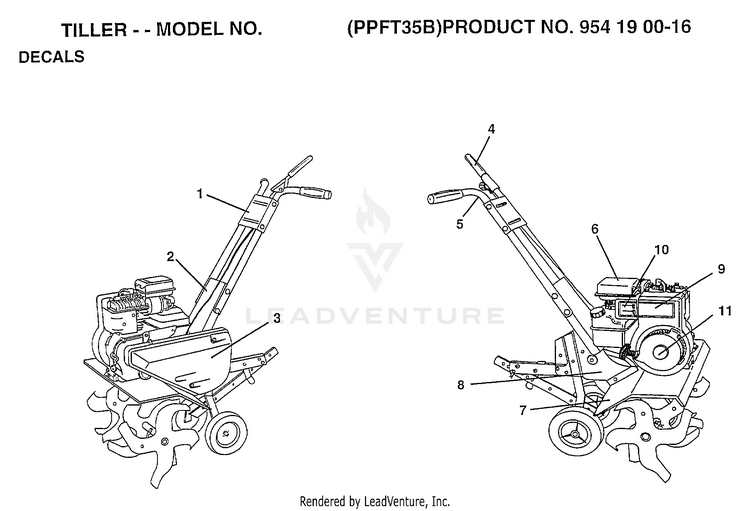

DECALS

...
...
1
DECAL.LOGO.CONTROL HUS-162682
...
2
DECAL.HP.CONTROL HUS-162681
...
3
DECAL.LOGO HUS-162680
...
4
DECAL, TINE CONTROL HUS-110613
...
5
DECAL HAND PLACEMENT HUS-110614
...
6
DECAL.CAUTION HUS-162384
...
7
DECAL WARNING ROTATING TINES HUS-120076
...
8
RETAINER-SPRING HUS-150496
...
9
DECAL-BRIGGS AND STRATTON HUS-273199
...
10
DECAL-SPEED CONTROL HUS-273603
...
11
DECAL-3.5 HP HUS-273714
...
xx
MANUAL.O.PPFT35B HUS-162798
...
xx
MANUAL.O.PPFT35B HUS-162799

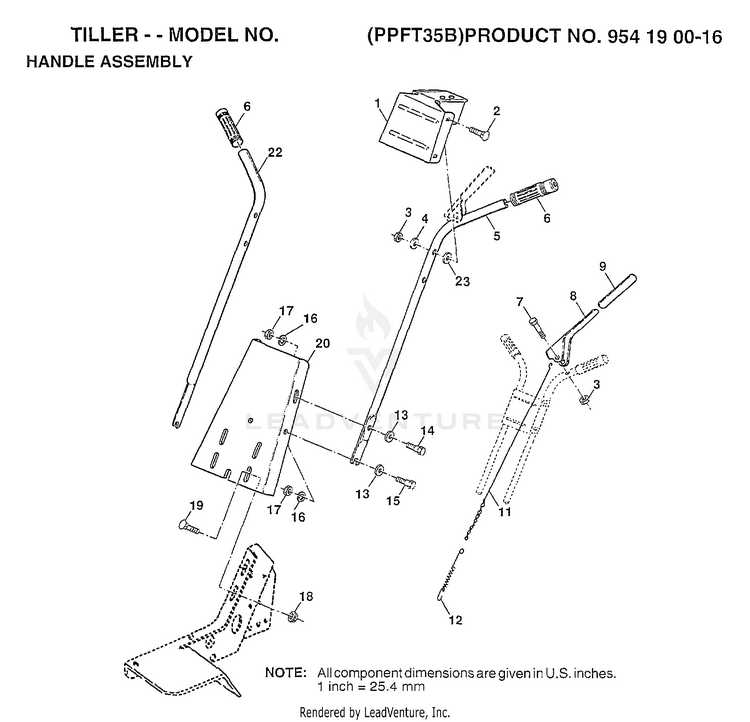

HANDLE ASSEMBLY

...
...
1
HANDLE BRKT HUS-137176X505
...
2
BOLT HUS-72140512
...
3
SUB= 73690500 HUS-73680500
...
4
WASHER HUS-19111116
...
5
HANDLE LH HUS-151473
...
6
SUB= 624A78 HUS-9266R
...
7
BOLT.HEX.5/16-1.5 HUS-74760524
...
8
SUB= 164937 HUS-3069J
...
9
GRIP T HUS-8206H
...
11
SUB= 100382K HUS-3067J
...
12
SPRING EXT TI HUS-3070J
...
13
WASHER HUS-19121414
...
14
SUB= 77394 HUS-74760516
...
15
BOLT HUS-74760512
...
16
LOCKWASHER HUS-10040500
...
17
NUT.HEX.5/16-18 HUS-73220500
...
18
NUT HUS-98000129
...
19
BOLT HUS-72140506
...
20
PANEL. HANDLE HUS-9209R505
...
22
HANDLE RH HUS-151474
...
23
WASHER HUS-19131312

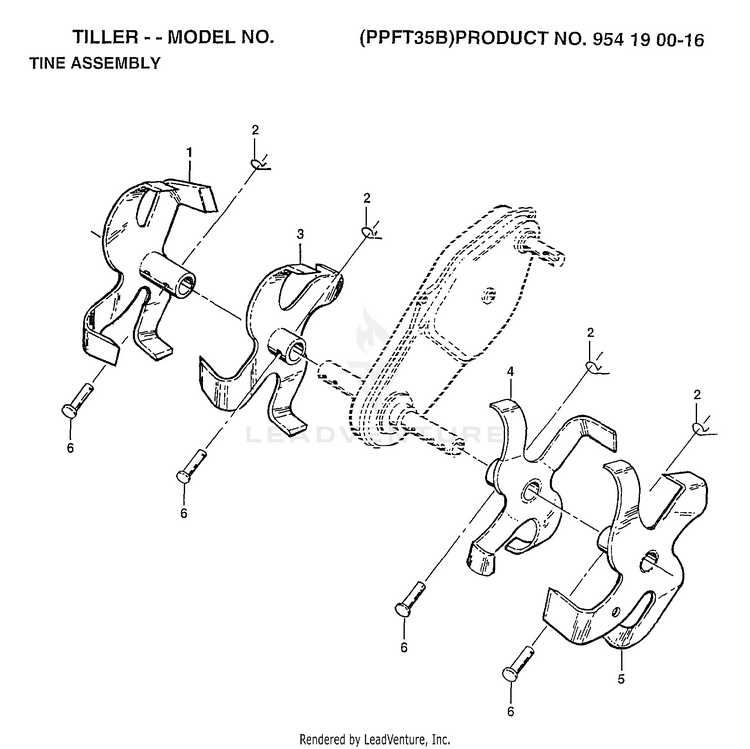

TINE ASSEMBLY

...
...
1
TINE ASSY RH HUS-106860X
...
2
SPRING.RETAINER HUS-4921H
...
3
TINE ASSY RH HUS-106858X
...
4
TINE INN LH TI HUS-106857X
...
5
TINE ASS'Y LH HUS-106859X
...
6
DRILLED RIVET RT HUS-9194R

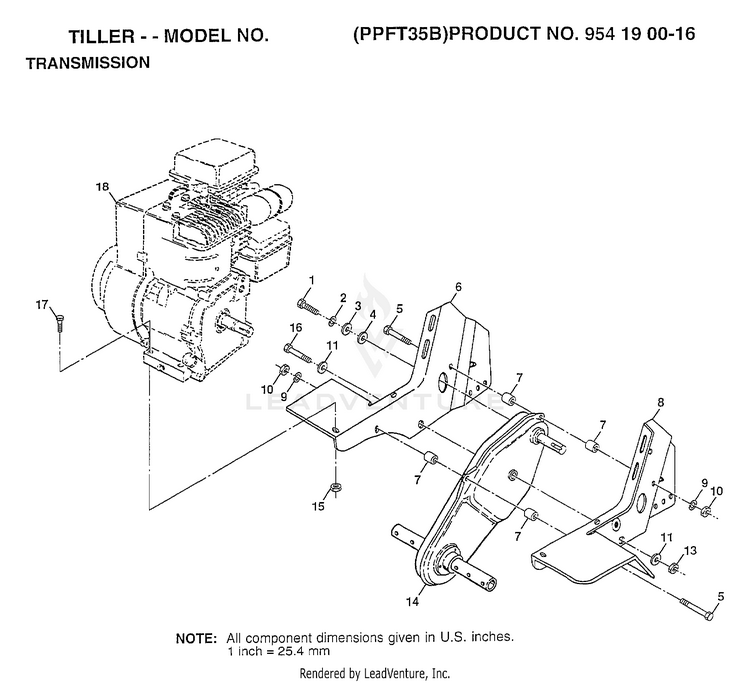

TRANSMISSION

...
...
1
BOLT HUS-74610412
...
2
LOCKWASHER HUS-10040400
...
3
WASHER HUS-19092016
...
4
WASHER HUS-19091412
...
5
SUB= 74780544 HUS-74760544
...
6
ENGINE BRKT RH HUS-2606J505
...
7
SPLIT SPACER RT HUS-9173R
...
8
ENGINE BRKT LH HUS-132212X505
...
9
LOCKWASHER HUS-10040500
...
10
NUT.HEX.5/16-18 HUS-73220500
...
11
WASHER HUS-19131311
...
13
NUT HUS-73800600
...
14
SUB= 165810 HUS-151937
...
15
NUT HUS-73510500
...
16
BOLT HEX 3/8-16 HUS-74780652
...
17
BOLT.HEX.5/16-1.5 HUS-74760524
...
18
CHECK WITH SUPPLIER HUS-SUPPLIER

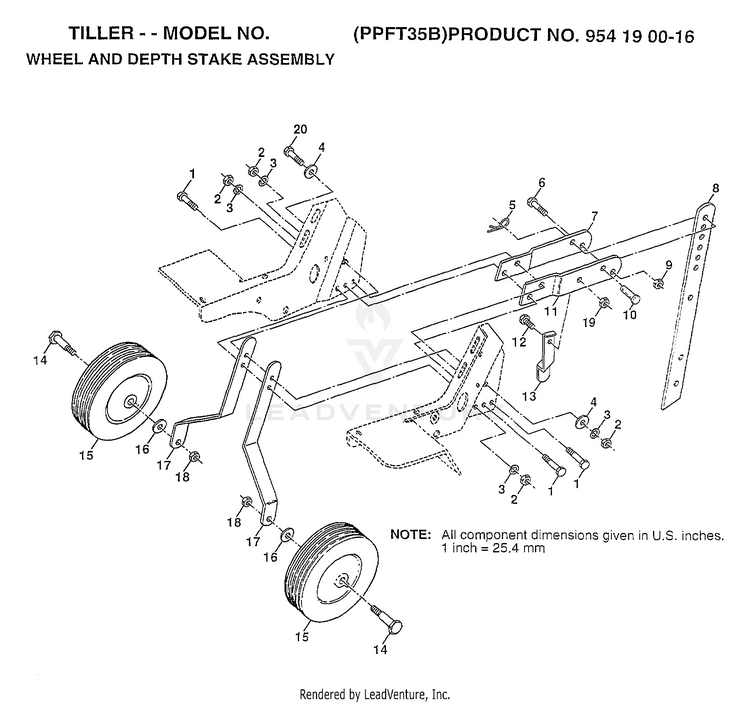

WHEEL AND DEPTH STAKE ASSEMBLY

...
...
1
BOLT HUS-74760520
...
2
NUT.HEX.5/16-18 HUS-73220500
...
3
LOCKWASHER HUS-10040500
...
4
WASHER HUS-19121414
...
5
SPRING.RETAINER HUS-4921H
...
6
BOLT HUS-74780628
...
7
STAKE.SUPT.TILLER HUS-318J
...
8
SUB= 9193R500 HUS-9193R
...
9
NUT HUS-73800600
...
10
DRILLED RIVET RT HUS-9551R
...
11
SUB= 317J500 HUS-317J
...
12
BOLT HUS-74760512
...
13
STAKE SPRING CT HUS-325J
...
14
BOLT SHOULDER HUS-121117X
...
15
WHEEL TI HUS-127858
...
16
WASHER HUS-19131311
...
17
SUB= 674H4 HUS-9189R
...
18
SUB= 73690600 HUS-73680600
...
19
NUT HUS-73800500
...
20
BOLT.HEX.5/16-1.5 HUS-74760524
