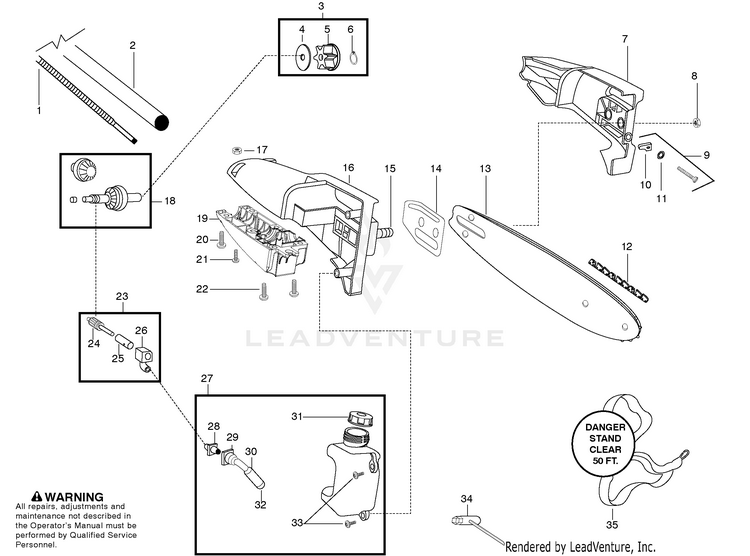

Husqvarna PPB5000P (2009-01) Chain Saw

Model: PPB5000P (2009-01)

Save Part Not Listed?
product name

Product Completed

...
...
1
Flexshaft - lower HUS-545132001
...
2
Assy. - Lower Driveshaft HUS-545092705
...
3
Kit - Sprocket Assy. (Incl. 4,5,6) HUS-530071647
...
4
Washer HUS-530056521
...
5
Sprocket HUS-530056520
...
6
Retainer - Sprocket HUS-530056563
...
7
Assy - Bar Clamp (Incl. 9) HUS-530057100
...
8
Nut - Bar Mounting HUS-530015917
...
9
Kit - Bar Adjust (Incl. 10,11) HUS-530069611
...
10
Pin - Bar Adjust HUS-530015826
...
11
Retainer - Bar Adjust HUS-530038593
...
12
Chain - 8" HUS-530051524
...
13
Bar - 8" HUS-530044908
...
14
Plate - Bar Pad HUS-530056523
...
15
Bolt - Bar HUS-530016133
...
16
Housing - Upper (Incl. 15) HUS-530056513
...
17
Nut HUS-530016284
...
18
Kit - Gear Assy. HUS-530071646
...
19
Housing - Lower HUS-530056514
...
20
Screw HUS-530016312
...
21
Screw HUS-530015886
...
22
Screw HUS-530015886
...
23
Kit - Oil Assy (Incl. 24,25,26,28) HUS-530071645
...
24
Assy. - Gear Plunger HUS-530053764
...
25
Barrel HUS-530053765
...
26
Assy- Oil Block (Incl. 25) HUS-530057347
...
27
ASSY OIL TANK (Incl. 28,29,30,31,32) HUS-530150266
...
28
Fitting - Oil Line HUS-530056524
...
29
Intake - Oil Line HUS-530021160
...
30
Filter-Oil HUS-530056533
...
31
CAP OIL HUS-530150552
...
32
Filter-Oil HUS-530056533
...
33
Screw HUS-530015843
...
34
Wrench - Bar HUS-530031163
...
35
Shoulder Strap HUS-530094417
...
35
Manual Not Shown HUS-545212830
...
35
Decal-shaft warning Not Shown HUS-545003066
...
35
KIT HARNESS CLAMP Not Shown HUS-530071605
...
35
KIT HARNESS CLAMP Not Shown HUS-530071605
...
35
Screw (harness clamp) Not Shown HUS-530016406
...
35
Hanger-Att.(90 deg.) Not Shown HUS-530150031
...
35
Wrench-hex (5/32) Not Shown HUS-530031159
