Husqvarna PPB200E Type 2 (2009-02) Trimmer/Edger

Model: PPB200E Type 2 (2009-02)

Back To Assemblies

Save Part Not Listed?
product name

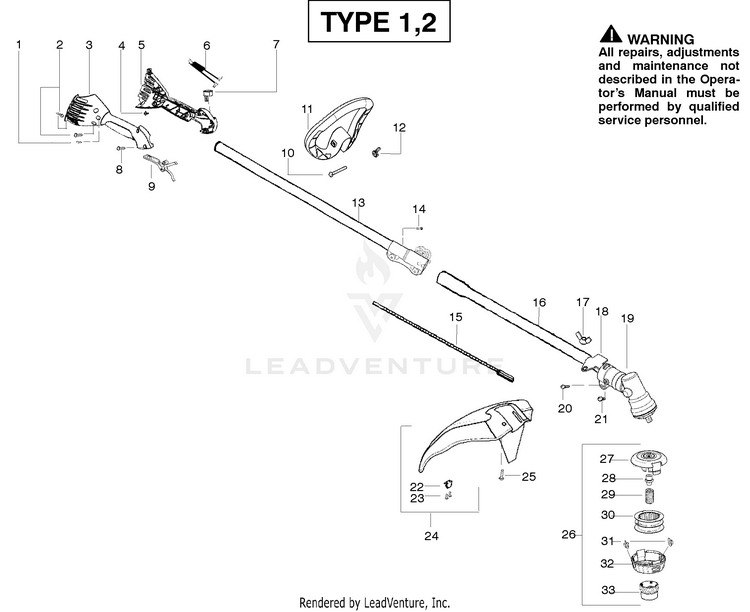

Shaft

...
...
1
Screw HUS-530015886
...
2
Screw HUS-530015886
...
3
Hsg.-Throttle right HUS-530057983
...
4
Screw-Cable Retention HUS-530016326
...
5
Hsg.-Left throttle HUS-530057984
...
6
Assy-Wire HUS-530058843
...
7
Kit-Switch HUS-530069572
...
8
Screw HUS-530015886
...
9
TRIGGER THROTTLE RED HUS-545017701
...
10
Bolt HUS-530015786
...
11
Assy-Handle (Incl. 10,12) HUS-530058583
...
12
Wingnut HUS-530401992
...
13
Kit-Upper Shaft (Incl. flex,clamp & 14) HUS-545006039
...
14
Screw HUS-530016344
...
15
FLEXSHAFT SPLIT BOOM HUS-545173003
...
16
Assy-Lower Shaft HUS-530071790
...
17
Wingnut HUS-530401992
...
18
Bracket-Shield HUS-530057554
...
19
Gearbox HUS-530096099
...
20
Screw HUS-530016014
...
21
Screw HUS-530015775
...
22
Limiter-Line HUS-530052285
...
23
Screw HUS-530015814
...
24
Kit-Shield Assy. (incl. 22,23) HUS-530071765
...
25
Bolt HUS-530015820
...
26
(Incl. 27,28,29,30,31,32,33) HUS-537419211
...
27
Housing HUS-537419302
...
28
Adapter HUS-537419801
...
29
Spring HUS-537338801
...
30
Accy-Wound Spool HUS-952711631
...
31
Kit - Cover and Eyelet HUS-545003365
...
32
Kit - Cover and Eyelet HUS-545003365
...
33
Knob HUS-537419601
...
33
Operator Manual Not Shown HUS-545137274
...
33
Decal-Shaft Warning Not Shown HUS-545176003
...
33
Decal-Upper Shaft Not Shown HUS-530056221
