Husqvarna PP8527ESB (2003) Snow Thrower

Model: PP8527ESB (2003)

Save Part Not Listed?

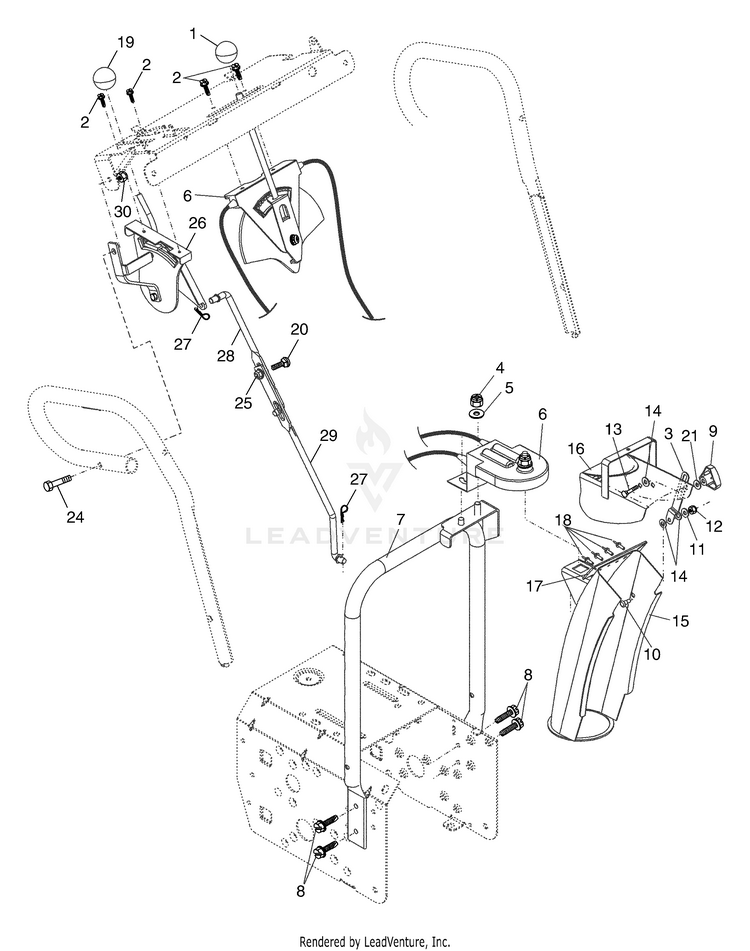

Control Panel / Discharge Chute

Knob, Lever HUS-183334

Screw #10-24 x 5/8 HUS-17501010

Strap, Slotted HUS-179096X479

Nut, Lock 3/8-16 HUS-73800600

Washer, Flat 3/8 HUS-19131316

Control Assembly, Chute Rotater HUS-178659

Support, Pivot HUS-178638X479

Screw, Hex Head 5/16-18 x 3/4 HUS-150078

Knob, Deflector HUS-180453

Bolt, Shoulder HUS-185600

Washer, Flat 1/4 HUS-53847

Nut, Lock 1/4-20 HUS-73800400

Bolt, Carriage 5/16-18 x 5/8 HUS-72270505

Washer, Nylon HUS-179246

Chute Assembly HUS-178628X428

Deflector Assembly HUS-178633X428

Seal, Deflector HUS-179145

Rivet, Blind HUS-128415

Knob, Speed Control Lever HUS-183333

Bolt, Carriage 5/16-18 x 3/4 HUS-72270506

Washer, Flat HUS-155415

Screw, Hex Head 5/16-18 x 1-3/4 HUS-74780528

Nut, Lock 5/16-18 HUS-155377

Lever Assembly, Speed Control HUS-179257

Retainer, Hairpin HUS-169675

Rod, Upper, Speed Control HUS-180445

Rod, Lower, Speed Control HUS-187716

Locknut, Hex 5/16-18 HUS-73800500

Model: 1AHF08390
