Husqvarna PP8527ESA (2003) Snow Thrower

Model: PP8527ESA (2003)

Back To Assemblies

Save Part Not Listed?
product name

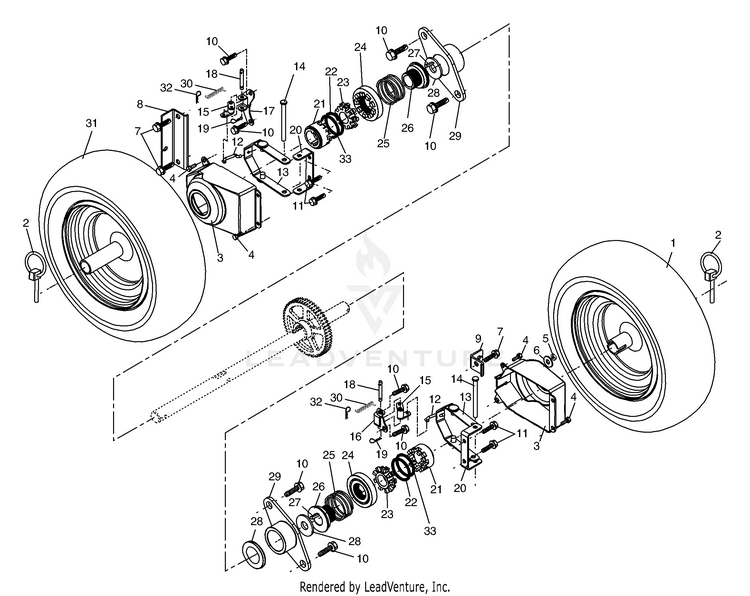

Wheels

...
...
1
Wheel Assembly, 16", Power Steering, LH HUS-187872
...
2
Pin, Klik 1/4 HUS-155443
...
3
Cover, Power Steering HUS-181843
...
4
Screw, Hex Head #10-24 x 1/2 HUS-184471
...
5
Nut, Lock 5/16-18 HUS-73800500
...
6
Washer, Flat 5/16 HUS-155415
...
7
Screw, Hex Head 3/8-16 x 1 HUS-71210616
...
8
Bracket, Steer Cable RH HUS-185603X479
...
9
Bracket, Steer Cable LH HUS-185602X479
...
10
Screw, Hex Head 5/16-18 x 3/4 HUS-146315
...
11
Screw, Hex Head 5/16-18 x 1/2 HUS-17490508
...
12
Link, Steering Lever HUS-184393
...
13
Lever Assembly, Steering HUS-185403X479
...
14
Pin, Steering Lever HUS-182015
...
15
Bellcrank Assembly HUS-184361
...
16
Bracket Assembly, LH Steering HUS-181982
...
17
Bracket Assembly, RH Steering HUS-182063
...
18
Pin, Steering Bellcrank HUS-181847
...
19
Retainer, Hairpin HUS-85179
...
20
Bracket, Lever Assembly HUS-179148X479
...
21
Driver, Wheel HUS-179141
...
22
Ring, Wire Retainer HUS-182466
...
23
Lobe, Wheel HUS-179136
...
24
Slide, Clutch HUS-179138
...
25
Spring, Clutch Slide HUS-179139
...
26
Lobe, Axle HUS-179137
...
27
Key, Square 1/4 HUS-178879
...
28
Washer, Thrust (1") HUS-174697
...
29
Bearing, Axle HUS-179830
...
30
Spring, Return HUS-184453
...
31
Wheel Assembly, 16", Power Steering, RH HUS-187874
...
32
Clip, Retainer HUS-700279
...
33
Ring, Retaining HUS-12000045
