Husqvarna PP4620AVHD (2007-08) Chain Saw

Model: PP4620AVHD (2007-08)

Back To Assemblies

Save Part Not Listed?
product name

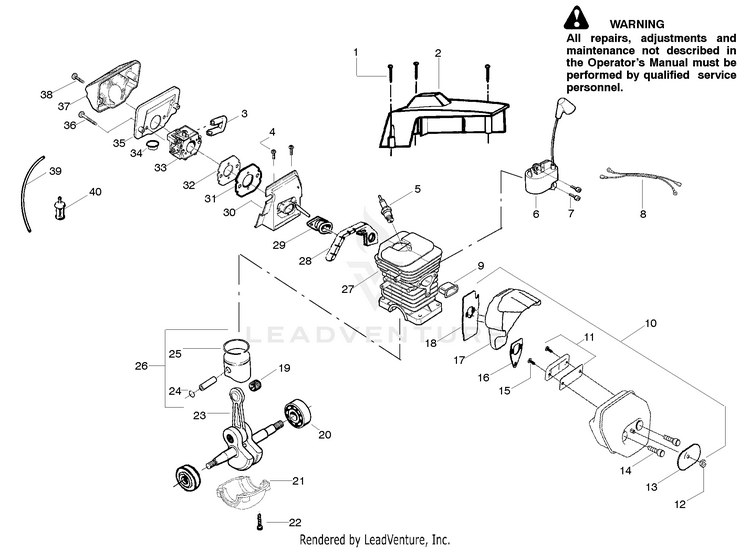

Engine

...
...
1
Screw HUS-530016154
...
2
Kit-Cylinder Shield HUS-530069716
...
3
Grommet -Carb. HUS-530035583
...
4
Screw HUS-530015814
...
5
BPMR7A NGK SPARK PLUG HUS-503235111
...
6
Module-Ignition HUS-545063901
...
7
Screw HUS-545121901
...
8
Assy-Switch Wire HUS-530037467
...
9
Insulator-Heat HUS-530037652
...
10
Kit-Muffler (Incl.11,13,14,15,16,17,18) HUS-530071495
...
11
Kit-Spark Arrestor (Incl.# 15) HUS-530071497
...
12
NUT 10MM BRASS HUS-574266401
...
13
Cover-Bolt HUS-530056061
...
14
Bolt-Muffler HUS-530016338
...
15
Screw-Spark Screen HUS-530016351
...
16
Gasket-Muffler HUS-530055128
...
17
Assy-Muffler Backplate HUS-530055765
...
18
Backplate - Alum. HUS-530055402
...
19
Bearing-Piston Pin HUS-530032117
...
20
Assy-Bearing & Seal HUS-530056363
...
21
Cap-Crankcase HUS-530049794
...
22
Screw HUS-530015897
...
23
HUS-503920801
...
24
Retainer-Piston Pin HUS-530015697
...
25
Ring-Piston HUS-530037380
...
26
Kit-Piston (Incl. 19,24,25 ) HUS-530069548
...
27
Assy-Cyl/Crankcase (Incl.#21) HUS-530071490
...
28
Seal-Super Clean HUS-530019251
...
29
Intake Boot HUS-530035581
...
30
Adapter-Carb. HUS-530053396
...
31
Intake Plate-Carb HUS-530037872
...
32
Gasket-Carb. HUS-530019172
...
33
CARBURETOR HUS-545013503
...
34
Isolator HUS-530036792
...
35
Filter-Air (Bottom) HUS-530059738
...
36
Screw HUS-530015970
...
37
Filter-Air (Top) HUS-545057701
...
38
Screw HUS-530015899
...
39
Kit-Fuel Line (Small) HUS-530069247
...
40
Assy-Fuel Pick-up HUS-530095646
...
40
Manual Not Shown HUS-545123761
...
40
Scrench Not Shown HUS-530031163
...
40
Decal-Warning Not Shown HUS-545056701
