Husqvarna PP4620AV (2008-07) Chain Saw

Model: PP4620AV (2008-07)

Back To Assemblies

Save Part Not Listed?
product name

Starter

...
...
1
Screw HUS-530015957
...
2
Cover-Handle (kit) HUS-530071272
...
3
Trigger-Throttle HUS-530036097
...
4
Lockout-Throttle HUS-530036098
...
5
Lever-Choke HUS-530053443
...
6
Screw HUS-530015937
...
7
Spring-Isolator HUS-530038985
...
8
Handle-Rear (kit) HUS-530071272
...
9
Screw HUS-530015906
...
10
Spring-Isolator HUS-530038986
...
11
Assy-Throttle Cable (Incl. Grommet) HUS-530038471
...
12
Kit-Rope HUS-530069232
...
13
Handle-Starter HUS-530056422
...
14
Kit-Starter EPS (Incl. 15,16,17,50) HUS-530071966
...
15
Spring EPS HUS-530021180
...
16
Hub-Starter EPS HUS-530059677
...
17
Screw-Shoulder HUS-530021179
...
18
Plate-Baffle Fan HUS-530047667
...
19
Nut-Flywheel HUS-530016134
...
20
Washer-Flywheel HUS-530015127
...
21
Assy-Flywheel HUS-530059637
...
22
Plate-Support (Bar Stud) HUS-530036043
...
23
Plug-Vent HUS-530029868
...
24
Valve-Check HUS-530026119
...
25
Nut-Speed HUS-530015922
...
26
Assy-Fuel Cap HUS-530010845
...
27
Assy-Chassis (Incl. 22,23,24,26,43,47 Fuel line and filter) HUS-530037551
...
28
Kit-Switch HUS-530069572
...
29
Worm-Oil Pump HUS-530029833
...
30
PLUNGER & GEAR ASSY HUS-545036801
...
31
Screw HUS-530015896
...
32
Kit-Clutch Drum (Incl. #35) HUS-530069342
...
33
Washer-Clutch HUS-530015611
...
34
Assy-Clutch HUS-530014949
...
35
Bearing-Clutch HUS-530032119
...
36
Washer-Thrust HUS-530015907
...
37
OIL HOSE HUS-545037101
...
38
Pickup-Oil HUS-545047801
...
39
Filter-Oil HUS-530056533
...
40
Screw HUS-530016037
...
41
Screw HUS-530015814
...
42
Chain Catcher HUS-530029850
...
43
Bar Bolt HUS-530015877
...
44
Bar Plate HUS-530047855
...
45
Screw HUS-530016439
...
46
Kit-Spike Assy (incl#45) HUS-530014381
...
47
Assy-Oil Cap HUS-530057236
...
48
Shield-Heat HUS-530055406
...
49
Clip-"U" HUS-530055322
...
50
Screw HUS-530016080
...
51
Kit-Starter Spring HUS-545008013
...
52
Housing-Fan HUS-545008803
...
53
Screw HUS-530015892
...
54
Screw HUS-530015814
...
55
Washer HUS-530015123
...
56
Handle-Front HUS-530038327
...
57
Front Strap-AV HUS-530036113
...
58
Screw-Plate HUS-530015775
...
59
Plate-Isolator HUS-530036101
...
60
Spring-Isolator HUS-530038985
...
61
Screw HUS-530015984
...
62
Chain"- 20" HUS-952051310
...
63
Bar -20" Quick Adjust HUS-952044815
...
64
Assy-ChainBrake HUS-530054819
...
65
Nut-Bar Mounting HUS-530015917

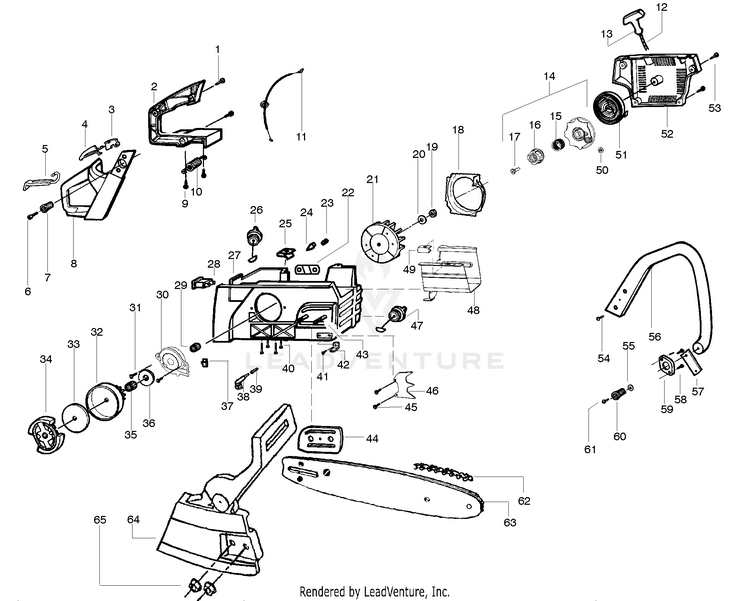

Schematic Image Zoomed
