Husqvarna PP4218AV Type 2 (2008-07) Chain Saw

Model: PP4218AV Type 2 (2008-07)

Save Part Not Listed?
product name

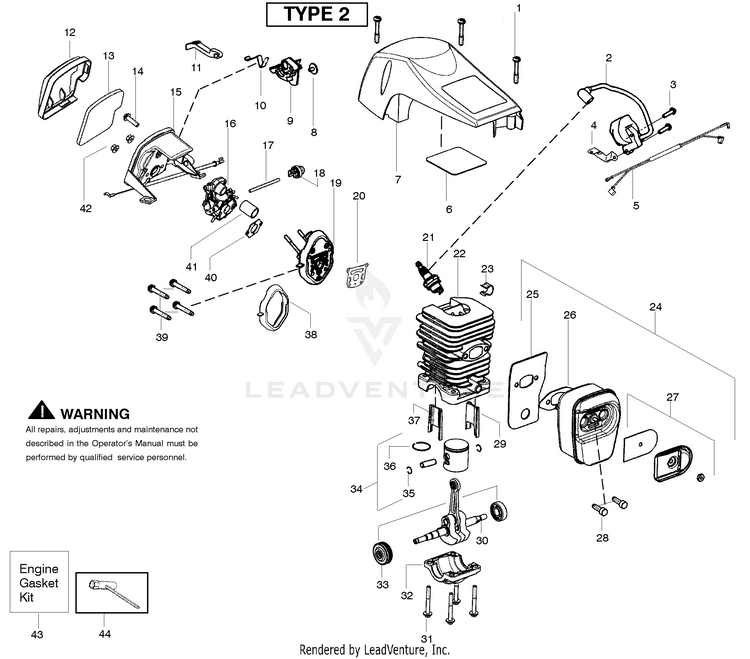

Engine - Type 2

...
...
1
Screw HUS-530016153
...
2
Module-Ignition HUS-530039232
...
3
Screw HUS-530016432
...
4
Strap-Ground HUS-530058661
...
5
Assy-Wire Harness HUS-530057943
...
6
Reflector-Tape HUS-530055698
...
7
Shield-Cylinder (Incl. 1,6) HUS-530057872
...
8
Screw HUS-530016080
...
9
Lever-Ignition Switch HUS-530057891
...
10
Spring-Ignition Switch HUS-530057908
...
11
Knob-Choke HUS-530059399
...
12
Cover-Air Filter HUS-530059001
...
13
Filter-Air HUS-530057869
...
14
Screw HUS-530016425
...
15
Housing-Air Filter w/cable HUS-530150029
...
16
Carb-Zama W-26B HUS-545070601
...
17
Kit-Fuel Line (Small) HUS-530069247
...
18
Bulb-Purge "snap-in" HUS-530047721
...
19
Kit-Carb. Adaptor ( Incl. # 20,38,41) HUS-530071889
...
20
Gasket-cyl. o-ring (kit) HUS-530071894
...
21
BPMR7A NGK SPARK PLUG HUS-503235111
...
22
Kit-Cylinder (Incl. 29,37) HUS-530071885
...
23
Clip-High Tension Lead HUS-530058660
...
24
Kit-Muffler (Incl. 25-28) HUS-545006007
...
25
Backplate-Muffler HUS-530057942
...
26
Gasket-Muffler (kit) HUS-530071894
...
27
Kit-Spark Arrestor HUS-545006056
...
28
Bolt-Muffler HUS-530016338
...
29
Insert-Left (black) Cyl. HUS-545015301
...
30
Assy-Crankshaft/Rod HUS-545112901
...
31
Bolt HUS-530016417
...
32
Cap-Crankcase HUS-530057941
...
33
Assy-Bearing/Seal HUS-530056363
...
34
Kit-Piston (Incl. 35,36) HUS-530071882
...
35
Retainer-Piston Pin HUS-530015697
...
36
Ring-Piston HUS-545160401
...
37
Insert-Right (gray) Cyl. HUS-545015401
...
38
Seal-Adaptor (kit) HUS-530071894
...
39
Screw HUS-530016426
...
40
Gasket-Carb. (kit) HUS-530071894
...
41
Tube-Intake HUS-530057926
...
42
Nut-Carb. HUS-530016101
...
43
Kit-Gasket (Incl . 20,26,38,40) HUS-530071894
...
44
Scrench HUS-530031163
...
44
Manual-Operator Not Shown HUS-545186805
...
44
Decal-Warning Not Shown HUS-530059905

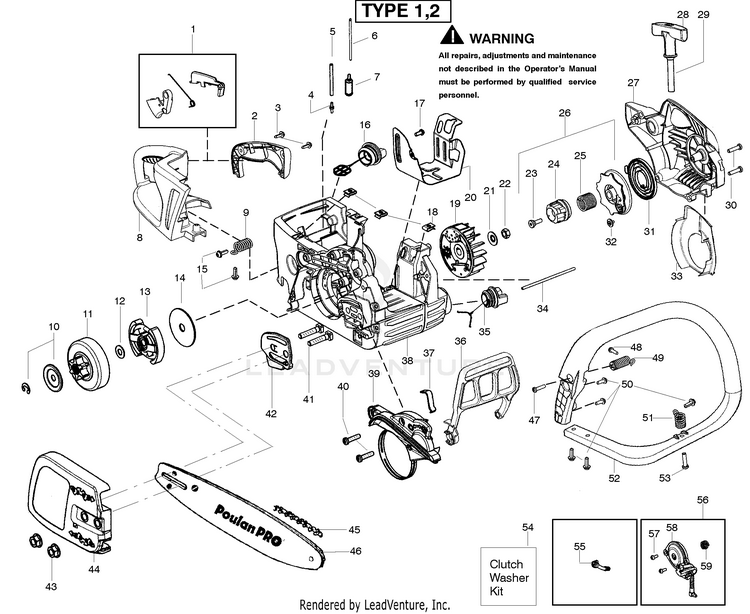

Starter

...
...
1
Kit-Trigger/Lockout HUS-530071927
...
2
Cover-Handle HUS-545011903
...
3
Screw HUS-530016433
...
4
Fitting-Fuel line HUS-530023877
...
5
Kit-Fuel Line (Large) HUS-530069216
...
6
Kit-Fuel Line (Small) HUS-530069247
...
7
Assy-Fuel Pick Up HUS-530095646
...
8
Handle-Rear HUS-545012103
...
9
Spring-Rear Isolator HUS-530059475
...
10
Kit-Clutch Washer HUS-530071945
...
11
Assy-Clutch Drum 3/8" HUS-530057905
...
12
Kit-Clutch Washer HUS-530071945
...
13
Assy-Clutch HUS-530057907
...
14
Washer-Large Clutch HUS-530016419
...
15
Screw HUS-530015906
...
16
FUEL CAP ASSY W/RET HUS-577858501
...
17
SCREW 6-19X.437 HUS-545227101
...
18
Nut-"U" type speed HUS-530015922
...
19
Assy-Flywheel HUS-530039231
...
20
Shield-Heat HUS-530057911
...
21
Washer-Flywheel HUS-530015127
...
22
Nut-Flywheel HUS-530016134
...
23
Screw-Shoulder HUS-530021179
...
24
Starter Hub-EPS HUS-530059677
...
25
Spring-EPS HUS-530021180
...
26
Kit- EPS Starter Pulley (Incl. 23-25, 32) HUS-530071966
...
27
Housing-Fan HUS-545011703
...
28
Handle-Starter HUS-530056402
...
29
Kit-Rope HUS-530069232
...
30
Screw HUS-530016432
...
31
Kit-Starter Spring HUS-545008013
...
32
Screw HUS-530016080
...
33
Baffle HUS-530057868
...
34
Assy-Oil Vent HUS-530058786
...
35
Assy-Oil Cap w/ret. HUS-530057236
...
36
Handguard HUS-530057880
...
37
Spring-Handguard HUS-530016416
...
38
ASSY CHASSIS BLACK W/RET (Incl. 4,5,6,7,9,15,16,17,18,20,34,35,37,41,51, ) HUS-545011813
...
39
Kit-Chainbrake HUS-530071893
...
40
Screw HUS-530016432
...
41
Bolt-Bar HUS-530016133
...
42
Plate-Bar HUS-530057910
...
43
Nut-Bar HUS-530015917
...
44
Assy-Clutch Cover HUS-545012203
...
45
Accy-18" Chain HUS-952051338
...
46
Accy-18" Bar HUS-952044926
...
47
Screw HUS-530016432
...
48
Screw HUS-530016443
...
49
Assy-Rear Iso. Spring HUS-530059480
...
50
Screw HUS-530015906
...
51
Assy-Front Iso. Spring HUS-530059479
...
52
Handle-Front HUS-530057878
...
53
Screw HUS-530016432
...
54
Kit-Clutch Washer (Incl. 10,12) HUS-530071945
...
55
Assy-Oil Pick Up HUS-530057924
...
56
Kit-Oil Pump (Incl. 57,58,59) HUS-530071891
...
57
SCREW 6-19X.437 HUS-545227101
...
58
Assy-Oil Pump HUS-530057931
...
59
Gear-Worm HUS-530037820
