Husqvarna PP4218 Type 2 (2006-07) Chain Saw

Model: PP4218 Type 2 (2006-07)

Back To Assemblies

Save Part Not Listed?
product name

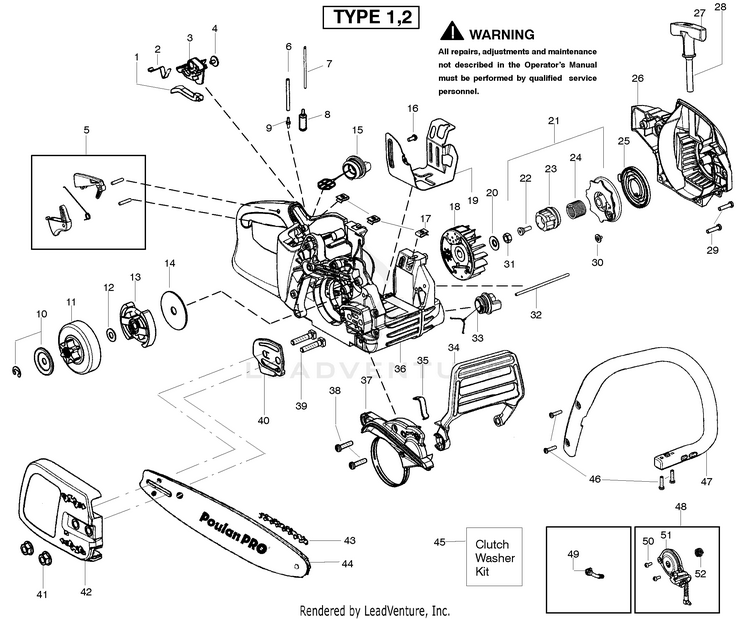

Starter - Type 1-2

...
...
1
Knob-Choke HUS-530057893
...
2
Spring-Ign. Switch HUS-530057908
...
3
Lever-Ign. Switch HUS-530057891
...
4
Screw HUS-530016080
...
5
Kit-Trigger/Lockout HUS-530071888
...
6
Kit-Fuel Line (Large) HUS-530069216
...
7
Kit-Fuel Line (Small) HUS-530069247
...
8
Assy-Fuel Pick Up HUS-530095646
...
9
Fitting-Fuel line HUS-530023877
...
10
Kit-Clutch Washer HUS-530071945
...
11
Assy-Clutch Drum 3/8" HUS-530057905
...
12
Kit-Clutch Washer HUS-530071945
...
13
Assy-Clutch HUS-530057907
...
14
Washer-Large Clutch HUS-530016419
...
15
FUEL CAP ASSY W/RET HUS-577858501
...
16
SCREW 6-19X.437 HUS-545227101
...
17
Nut-"U" type speed HUS-530015922
...
18
Assy-Flywheel HUS-530059635
...
19
Shield-Heat HUS-530057911
...
20
Washer-Flywheel HUS-530015127
...
21
Kit-EPS Starter Pulley (Incl. 22,23,24,30) HUS-530071966
...
22
Screw-Shoulder HUS-530021179
...
23
Hub-EPS HUS-530059677
...
24
Spring-EPS HUS-530021180
...
25
Kit-Starter Spring HUS-545008013
...
26
Housing-Fan HUS-530058811
...
27
Handle-Starter HUS-530056402
...
28
Kit-Rope HUS-530069232
...
29
Screw HUS-530016432
...
30
Screw HUS-530016080
...
31
Nut-Flywheel HUS-530016134
...
32
Assy-Oil Vent HUS-530058786
...
33
Assy-Oil Cap w/ret. HUS-530057236
...
34
Handguard HUS-530057897
...
35
Spring-Handguard HUS-530016416
...
36
Assy-Chassis (Incl. 5,6,7,8,9, 15,16 ,17,19,33,35,39) HUS-530058864
...
37
Kit-Chainbrake HUS-530071893
...
38
Screw HUS-530016432
...
39
Bolt-Bar HUS-530016133
...
40
Plate-Bar HUS-530057910
...
41
Nut-Bar HUS-530015917
...
42
Assy-Clutch Cover HUS-530058915
...
43
Accy-18" Chain HUS-952051548
...
44
Accy-18" Bar HUS-952044926
...
45
Kit-Clutch Washer (Incl. 10,12) HUS-530071945
...
46
Screw HUS-530016432
...
47
Handle-Front HUS-530057888
...
48
Kit-Oil Pump (Incl. 50,51,52) HUS-530071891
...
49
Assy-Oil Pick Up HUS-530057924
...
50
SCREW 6-19X.437 HUS-545227101
...
51
Assy-Oil Pump HUS-530057931
...
52
Gear-Worm HUS-530037820
