Husqvarna PP4000C Type 2 (2009-02) Trimmer/Edger

Model: PP4000C Type 2 (2009-02)

Back To Assemblies

Save Part Not Listed?
product name

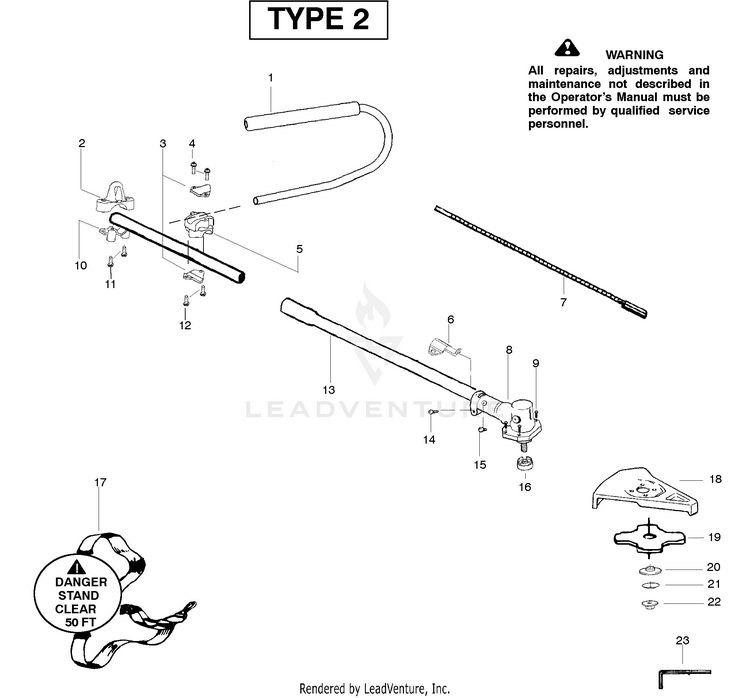

Handle & Controls - Type 2

...
...
1
Kit-Handlebar (incl. grip,cap,decal) HUS-530071394
...
2
KIT HARNESS CLAMP HUS-530071605
...
3
Clamp-Bracket HUS-530058563
...
4
Screw HUS-530015886
...
5
Clamp-Handlebar (7/8") HUS-530058766
...
5
Clamp-Handlebar (1") HUS-530058765
...
6
Bracket-Shield HUS-530095812
...
7
Flexshaft-Split boom HUS-530096183
...
8
Assy-Gearbox HUS-530071585
...
9
Screw HUS-530016312
...
10
KIT HARNESS CLAMP HUS-530071605
...
11
Screw HUS-530016406
...
12
Screw HUS-530015886
...
13
Assy.-Driveshaft HUS-530071860
...
14
Screw HUS-530016014
...
15
Screw-Alignment HUS-530016224
...
16
Dust cup - Blade HUS-530095815
...
17
Shoulder Strap HUS-530094417
...
18
Kit-Blade Shield HUS-530071383
...
19
Accy.-Weed Blade (8") HUS-952711584
...
20
Washer-Blade Retaining HUS-530095816
...
21
Washer-Belleville HUS-530016240
...
22
Nut-Flange HUS-530015793
...
23
Wrench-Hex (5/32") HUS-530031159
...
23
Manual Not Shown HUS-530164830
...
23
Hanger-Attachment Not Shown HUS-530150031
...
23
Decal-Shaft Warning Not Shown HUS-525433601
...
23
Decal-Blade Direction Not Shown HUS-530056335
