Husqvarna PP3816AV Type 2 (2008-07) Chain Saw

Model: PP3816AV Type 2 (2008-07)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

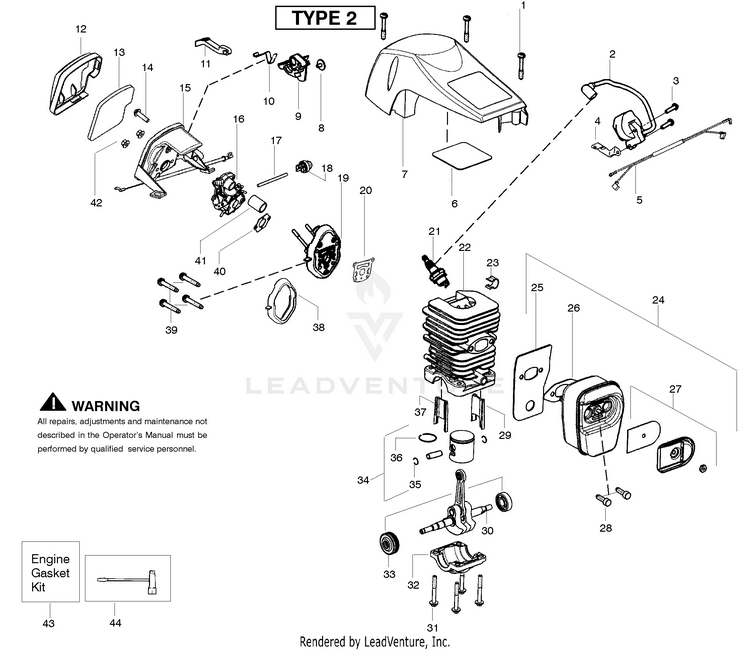

Engine - Type 2

...
...
1
Screw PLN-530016153
...
2
Module-Ignition PLN-530039232
...
3
Screw PLN-530016432
...
4
Strap-Ground PLN-530058661
...
5
Assy-Wire Harness PLN-530057943
...
6
Reflector-Tape PLN-530055698
...
7
Shield-Cylinder (Incl.1,6) PLN-530057872
...
8
Screw PLN-530016080
...
9
Lever-Ignition Switch PLN-530057891
...
10
Spring-Ignition Switch PLN-530057908
...
11
Knob-Choke PLN-530059399
...
12
Cover-Air Filter PLN-530059001
...
13
Filter-Air PLN-530057869
...
14
Screw PLN-530016425
...
15
Housing-Air Filter w/cable PLN-530150029
...
16
Carb-Zama W-26B PLN-545070601
...
17
Kit-Fuel Line (Small) PLN-530069247
...
18
Bulb-Purge "snap-in" PLN-530047721
...
19
Kit-Carb. Adaptor ( Incl. # 20,38,41) PLN-530071889
...
20
Gasket-cyl. o-ring (kit) PLN-530071894
...
21
BPMR7A NGK SPARK PLUG PLN-503235111
...
22
Kit-Cylinder (Incl. 29,37) PLN-530071885
...
23
Clip-High Tension Lead PLN-530058660
...
24
Kit-Muffler (Incl. 25,26,27,28) PLN-545006007
...
25
Backplate-Muffler PLN-530057942
...
26
Gasket-Muffler (kit) PLN-530071894
...
27
Kit-Spark Arrestor PLN-545006056
...
28
Bolt-Muffler PLN-530016338
...
29
Insert-Left (black) Cyl. PLN-545015301
...
30
Assy-Crankshaft/Rod PLN-545112901
...
31
Bolt PLN-530016417
...
32
Cap-Crankcase PLN-530057941
...
33
Assy-Bearing/Seal PLN-530056363
...
34
Kit-Piston (Incl. 35,36) PLN-530071882
...
35
Retainer-Piston Pin PLN-530015697
...
36
Ring-Piston PLN-545160401
...
37
Insert-Right (gray) Cyl. PLN-545015401
...
38
Seal-Adaptor (kit) PLN-530071894
...
39
Screw PLN-530016426
...
40
Gasket-Carb. (kit) PLN-530071894
...
41
Tube-Intake PLN-530057926
...
42
Nut-Carb. PLN-530016101
...
43
Kit-Gasket (Incl . 20,26,38,40) PLN-530071894
...
44
Scrench PLN-530031163
...
44
Manual-Operator Not Shown PLN-545186805
...
44
Decal-Warning Not Shown PLN-530059905
...
...
...
