Husqvarna PP325 Type 2 (2008-12) Trimmer/Edger

Model: PP325 Type 2 (2008-12)

Back To Assemblies

Save Part Not Listed?
product name

Shaft - Type 2

...
...
1
Assy-Throttle Cable HUS-530059759
...
2
Hsg-Throttle-right HUS-530057541
...
3
Screw HUS-530016406
...
4
Screw HUS-530015814
...
5
Assy-Wire HUS-530054183
...
6
Hsg-Throttle-left HUS-530059760
...
7
KIT SWITCH HUS-545049301
...
8
Trigger HUS-530049107
...
9
Clamp-Harness (upper) HUS-530057986
...
10
Clamp-Bracket HUS-530058563
...
11
Screw HUS-530015886
...
12
Assy-Handlebar (incl. grip,cap,decal) HUS-530071974
...
13
Clamp-Harness (lower) HUS-530057987
...
14
Screw HUS-530015940
...
15
Clamp-Handlebar HUS-545024501
...
16
KIT UPPER SHAFT BLACK (Incl. Flex and clamp) HUS-575260201
...
17
Screw HUS-530016344
...
18
Wingnut HUS-530401992
...
19
Bracket-Shield HUS-545150701
...
20
Gearbox HUS-530096100
...
21
Screw HUS-530016312
...
22
FLEXSHAFT SPLIT BOOM HUS-545173003
...
23
Assy-Lower Shaft HUS-530071789
...
24
Screw HUS-530015775
...
25
Screw HUS-530016014
...
26
Shoulder Strap HUS-530094417
...
27
Limiter-Line HUS-530052286
...
28
Screw HUS-530015814
...
29
Kit-Shield Assy (incl. 27,28) HUS-530071997
...
30
Bolt HUS-530015820
...
31
Assy - Fixed Line Head HUS-545053902
...
32
Cap-Fixed Line HUS-545049501
...
33
Accy-Line (12 pcs) HUS-952711635
...
34
Kit-Metal Shield HUS-530071383
...
35
Dust cup HUS-530095815
...
36
Accy-Weed Blade HUS-952711584
...
37
Washer HUS-530095816
...
38
Washer-Belleville HUS-530016240
...
39
Nut-Flange HUS-530015793
...
39
Operator Manual Not Shown HUS-545177326
...
39
Decal-Shaft Warning Not Shown HUS-545176003
...
39
Decal-Blade Direction Not Shown HUS-530056335
...
39
Wrench-Hex 5/32" Not Shown HUS-530031159
...
39
Decal-Upper Shaft warrning Not Shown HUS-545167703

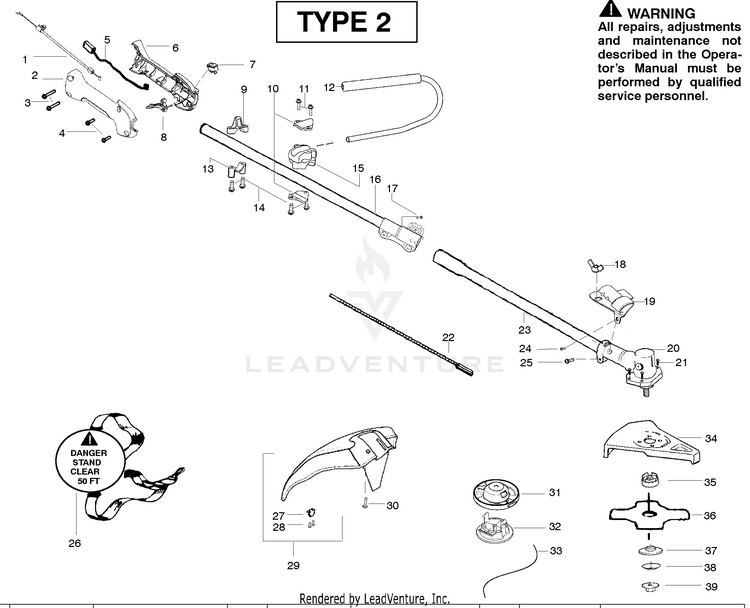

Schematic Image Zoomed
