Husqvarna PP22H50KA (1995) Tractor

Model: PP22H50KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

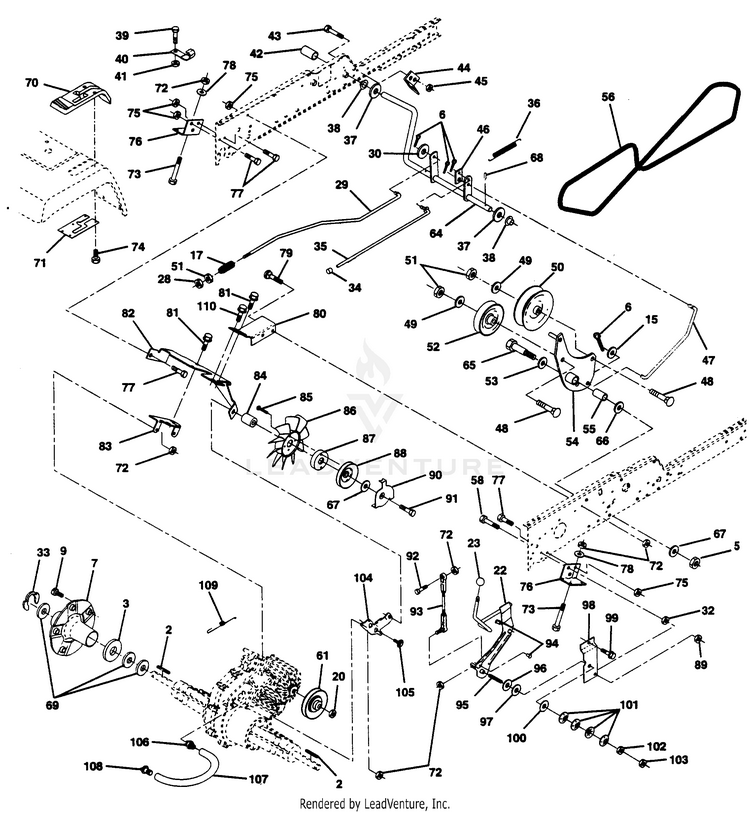

GROUND DRIVE

...
...
2
Key 1/4 x 2.5 HUS-532007070
...
3
Washer Thrust Axle Harden HUS-532007563
...
5
Nut Crownlock 3/8-16 HUS-873680600
...
6
Pin Cotter 1/8 x 3/4 HUS-876020412
...
7
Wheel Hub Asm. HUS-532140507
...
9
Bolt Hub HUS-532140080
...
15
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
17
Spring Rod Brake HUS-532140921
...
20
Nut Hex Jam Toplock 1/2-20 HUS-873940800
...
22
Shaft Arm Asm HUS-532140498
...
23
Knob HUS-532121274
...
28
Nut, Hex 3/8-16 HUS-873220600
...
29
Brake Rod HUS-532140494
...
30
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
31
COTTER PIN HUS-532003145
...
32
Nut Hex 7/16-14 HUS-873220700
...
33
Ring E HUS-812000053
...
34
Cap Plunger HUS-532071673
...
35
Rod Parking Brake HUS-532137648
...
36
SUB= 149412 HUS-532149412
...
37
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
38
Nyliner HUS-532110895
...
39
Screw Fin #10-24 x 1 HUS-874321016
...
40
Actuator, Interlock Switch HUS-532178575
...
41
Nut, Crownlock #10-24 HUS-532069180
...
42
Cover Pedal HUS-532123533
...
43
Bolt Hex Head 1/4-20 x 3/4 HUS-874760412
...
44
Bracket Interlock HUS-532104601
...
45
NUT.1/4C.NYLOC HUS-539976978
...
46
Retainer Spring HUS-532145170
...
47
Clutch Rod HUS-532138228
...
48
Bolt Carriage 3/8-16 x 1-3/4 Gr. 5 HUS-872110614
...
49
Washer 13/32 x 7/8 x 13 Ga HUS-819131413
...
50
PULLEY.IDLER.FLAT HUS-532173438
...
51
Nut, Crownlock 3/8-16 HUS-873680600
...
52
Pulley Idler Grooved HUS-532139123
...
53
Washer Hartdened HUS-532000207
...
54
Clutch Arm Asm HUS-532138390
...
55
Bearing, Idler HUS-532105706
...
56
V-Belt HUS-532140218
...
58
Bolt Fin Hex 7/16-14 x 1-1/2 HUS-874760724
...
61
Pullery Transaxle HUS-532140488
...
64
SUB= 154752 HUS-532154752
...
65
Bolt, Shoulder HUS-532179613
...
66
Washer Hardened HUS-532140296
...
67
WASHER HUS-734117201
...
68
Pin Roll HUS-532005142
...
69
Washer HUS-532123800
...
70
KIT CONS HYD ADJ YT GT HUS-532153762
...
71
Plate Console Shift HUS-532140927
...
72
Locknut Hex W/Washer Insert HUS-873800500
...
73
Bolt Fin Hex 5/16-18 x 3 HUS-874780548
...
74
Screw, Hex Wsh Hi-Lo 1/4-1/2 HUS-532142432
...
75
Nut Lock Hex 7/16 HUS-873800700
...
76
Bracket Transaxle HUS-532140481
...
77
Bolt 7/16-14 x 1 Gr 5 HUS-874780716
...
78
WASHER - 15X7.3X1.6 HUS-734116301
...
79
Bolt Carriage 5/16-18 x 5/8 HUS-872110505
...
80
Bracket Torque RH HUS-532140484
...
81
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
82
KIT.BRAKET/HDW.MOUNT.HYDRO HUS-532154561
...
83
Strap Torque Mid HUS-532140479
...
84
Spacer HUS-532140490
...
85
Screw #10-24 x 1-1/4 HUS-817541020
...
86
Fan 7" Hydro HUS-532140462
...
87
Adapter Fan HUS-532140491
...
88
PULLEY HUS-532161592
...
89
Nut, Crownlock 7/16-14 HUS-873680700
...
90
Keeper Belt HUS-532140489
...
91
Screw Thdrol 3/8-16 x 2-3/4 HUS-817490644
...
92
Bolt 5/16-18 x 1-1/4 HUS-874520520
...
93
Link Shift Asm HUS-532140502
...
94
Fastner Christmas Tree HUS-532133835
...
95
Screw Set 5/16-18 x 1.75 HUS-823200528
...
96
Washer Nickel Plated HUS-532141103
...
97
Bearing Trust HUS-532126874
...
98
Bracket Shift HUS-532141004
...
99
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
100
Washer Compression HUS-532126881
...
101
Washer Bellville HUS-532059285
...
102
Nut, Hex, Lock HUS-873930500
...
103
Hex, Nut 5/16-18 HUS-873220500
...
104
Bracket Idler HUS-532140480
...
105
HCS.1/4-20.X1/2 HUS-539990071
...
106
Fitting Vent Hose HUS-532142576
...
107
Vent Hose HUS-532142577
...
108
Cap Vent HUS-532142578
...
109
Spring Return Brake HUS-532140929
...
110
Screw, Hinge HUS-532088652
...
xx
Transaxle Hydro Not Shown. HUS-532140343
