Husqvarna PP22H50KA (1995) Tractor

Model: PP22H50KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

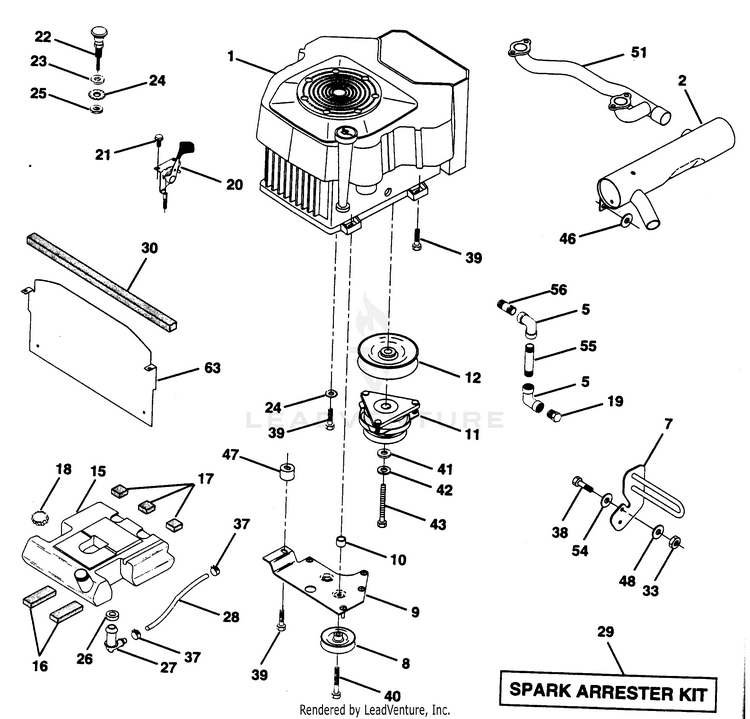

ENGINE

...
...
2
MUFFLER HUS-532161062
...
5
Elbow STD 90 Degree 3/8 - 18 NPT HUS-813200300
...
7
Muffler Assembly Guard HUS-532143599
...
8
Pulley, V-Idler HUS-532139123
...
9
Keeper Asm. Belt Engine VGT HUS-532177748
...
10
Bushing HUS-532105432
...
11
CLUTCH KIT HUS-532174509
...
12
Pulley Engine VGT Elect Clutch HUS-532143996
...
15
SUB= 151346 HUS-532151346
...
16
Pad Spacer HUS-532109227
...
17
Pad Spacer HUS-532106082
...
18
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
19
Plug Oil Drain (Order From Engine Manufacturer) HUS-813290300
...
20
CONTROL.THROTTLE 37.90 HUS-532162150
...
21
HCS 1/4C X 5/8 HUS-539990072
...
22
Control Choke HUS-532138672
...
23
Washer 13/32 X 13/16 x 16 Ga HUS-819131316
...
24
WASHER.3/8 HUS-539990118
...
25
Nut HUS-873680600
...
26
Bushing HUS-532003645
...
27
Stem Tank Fuel HUS-532139277
...
28
Line, Fuel HUS-532008542
...
29
Spark Arrester Kit HUS-532132920
...
30
Strip Foam 18" HUS-532105037
...
33
Nut HUS-873680600
...
37
Clamp Hose HUS-532123487
...
38
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
39
Screw TT 3/8-16 x 2-1/4 UNC HUS-817490636
...
40
Screw TT 3/8-16 x 4 UNC HUS-817490664
...
41
Washer 1-1/2 OD X 15/32 ID X .250 HUS-532126197
...
42
LOCKWASHER.7/16 HUS-539990247
...
43
SUB= 150280 HUS-532150280
...
46
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
47
Spacer Engine CV22 Round PM HUS-532142040
...
48
Washer 13/32 x 1-1/4 x 7 Ga. HUS-819132007
...
51
MANIFOLD PIPE VGT HUS-532161230
...
54
Washer Flat 13/32 x 7/8 x 14 Ga. HUS-819131414
...
55
Nipple Pipe 3/8 Npt X 4-1/2" HUS-813280336
...
56
Nipple, Pipe 3/8 NPT x 1.00 HUS-813090308
...
63
Shield, Heat VGT 22 HP YP/Husq. HUS-532145549
