Husqvarna PP22H50K (1995) Tractor

Model: PP22H50K (1995)

Back To Assemblies

Save Part Not Listed?
product name

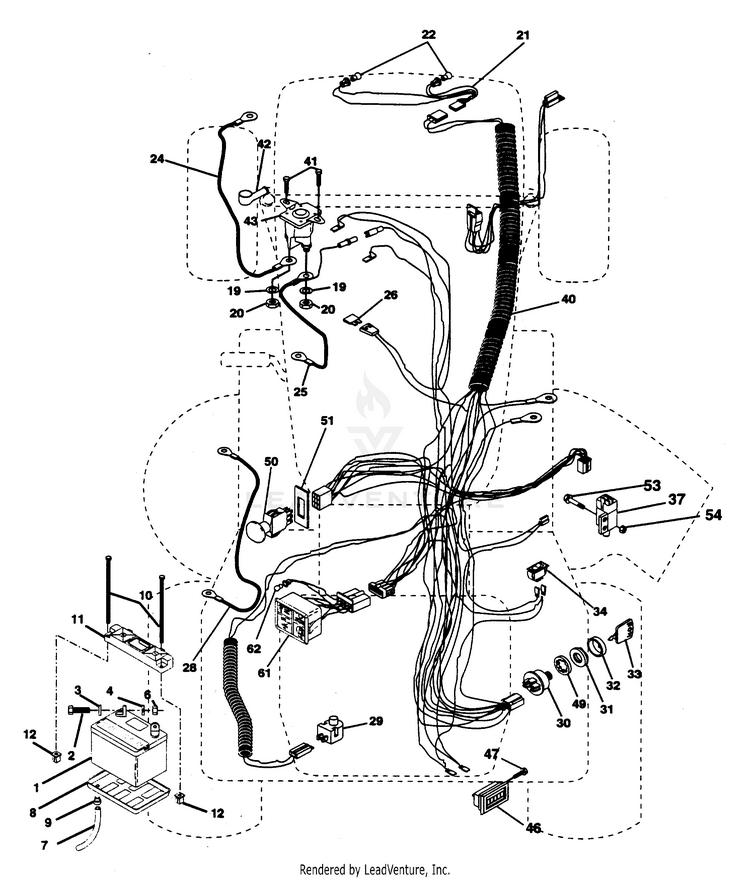

ELECTRICAL

...
...
1
HUS-532125603
...
2
Bolt Hex Head 1/4-20 x 3/4 HUS-874760412
...
3
Washer, Lock 1/4 HUS-810040400
...
4
Washer 9/32 x 5/8 x 16 Ga HUS-819091016
...
6
NUT.HEX..25-20.UNC HUS-532050675
...
7
Tube Plastic HUS-532007697
...
8
TRAY.BATTERY HUS-532007603
...
9
Clamp, Hose HUS-532109596
...
10
BATTERY TIEDOWN KIT HUS-532150177
...
11
SUB= 150109 HUS-532150109
...
12
BATTERY TIEDOWN KIT HUS-532150177
...
19
WASHER, LOCK 1/4 HUS-810040400
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
Harness Socket Light w/4152J HUS-532136850
...
22
Bulb Light HUS-532004152
...
24
Cable, Starter HUS-532004014
...
25
Cable, Battery HUS-532146686
...
26
Fuse HUS-532108824
...
28
Cable, Ground HUS-532006408
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
30
IGNITION SWITCH KIT HUS-532158913
...
31
KIT-WASHER/NUT HUS-532145774
...
32
Cover Switch Key HUS-532141226
...
33
Key HUS-532140401
...
34
Switch, Light HUS-532110712
...
37
SWITCH.N.C *SUBS/1* HUS-539101080
...
40
CABLE ASS HUS-532151873
...
41
HCS.1/4-20.X1/2 HUS-539990071
...
42
Cover, Terminal Red HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
46
HOUR METER HUS-532169642
...
47
Screw #10-24 x 1/2 HUS-817011008
...
49
Washer, Lock Internal Tooth 5/8 HUS-811151000
...
50
PTO SWITCH HUS-532174651
...
51
Ring Retainer PTO HUS-532140405
...
53
Screw, Pan Hd. #10-32 HUS-874641008
...
54
HUS-873161000
...
61
Light Pkg Asm HUS-532138101
...
62
Bulb, Light Pkg. HUS-532110143
