Husqvarna PP22H50K (1995) Tractor

Model: PP22H50K (1995)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE HYDRO GEAR MODEL NUMBER 214-3010

...
...
1
Assembly, Lh Housing HUS-532142874
...
2
Assembly, Rh Housing HUS-532142875
...
16
Brake Shaft Assembly HUS-532142876
...
20
Axle Mounting Horn Ass'y HUS-532142877
...
21
Washer, 1.0x1.63x.08 HUS-532142878
...
22
Washer, 1.0x2.06x.09 HUS-532142879
...
33
Brake Yoke Assembly HUS-532142929
...
35
Brake Arm HUS-532142880
...
36
Puck Plate HUS-532142882
...
37
Brake Puck HUS-532142883
...
38
Arm, Brake Actuator HUS-532122660
...
39
Castle Nut, 5/16-24 HUS-532142885
...
40
Cotter Pin HUS-532142886
...
41
Brake Actuating Pin HUS-532142887
...
42
Hi Pro Key HUS-532142888
...
43
Spacer HUS-532142889
...
45
Brake Disc HUS-532142890
...
46
Bolt, 1/4-20 X 1-1/2 HUS-532142891
...
47
Bolt, 1/4-20 X 1 HUS-532142892
...
49
Differential Assembly HUS-532142893
...
63
Dowel Pin HUS-532142894
...
64
SUB= 142876 HUS-532142876
...
65
Final Drive Pinion Ass'y HUS-532142897
...
67
Jack Shaft HUS-532142898
...
68
O Ring HUS-532142899
...
69
Washer,5/8 X 1-5/32 HUS-532142900
...
70
Washer,7/8 X 1-1/2 HUS-532142901
...
71
Bolt, Hex 5/16-18 X 3.5 HUS-532142902
...
72
Hex Lock Nut, 5/16-18 HUS-532142903
...
73
TORX.SCREW.(50868) HUS-532161159
...
74
Hex Cap Screw, 5/16-18 X 1 HUS-532142905
...
75
Washer, Differential HUS-532142906
...
76
Shoulder Bolt HUS-532142907
...
77
Freewheel Actuating Arm HUS-532142908
...
78
Oil Seal, .625 X 1.0 X .25 HUS-532142909
...
81
Bolt, Hex 5/16-18 X 1-3/4 HUS-532142910
...
82
Bolt, 5/16-18 X 4-1/2 HUS-532142911
...
89
FILTER.SPIN-ON.HYDRO-GEAR HUS-532182642
...
91
Pump Assembly, Complete HUS-532144576
...
95
Straight Thread Plug HUS-532142914
...
99
Washer, 11/32 X 9/16 HUS-532142915
...
103
Washer HUS-532142916
...
104
Cap Vent HUS-532142578
...
106
Fitting-O Ring Assembly HUS-532142918
...
108
Control Arm HUS-532142919
...
109
Set Screw HUS-532142920
...
110
Filter Head HUS-532142921
...
111
Hose, 5/16 X 12" Long HUS-532142922
...
113
90 degree 7/8 Sae Fitting HUS-532142923
...
116
45 degree 9/16 Sae Fitting HUS-532142924
...
117
90 degree 9/16 Sae Fitting HUS-532142925
...
118
90 degree Sae #6 Flare Male Fitting HUS-532142926
...
119
90 degree Sae #6 Flare Female Fitting HUS-532142927
...
121
Wire Retaining Ring HUS-532142928

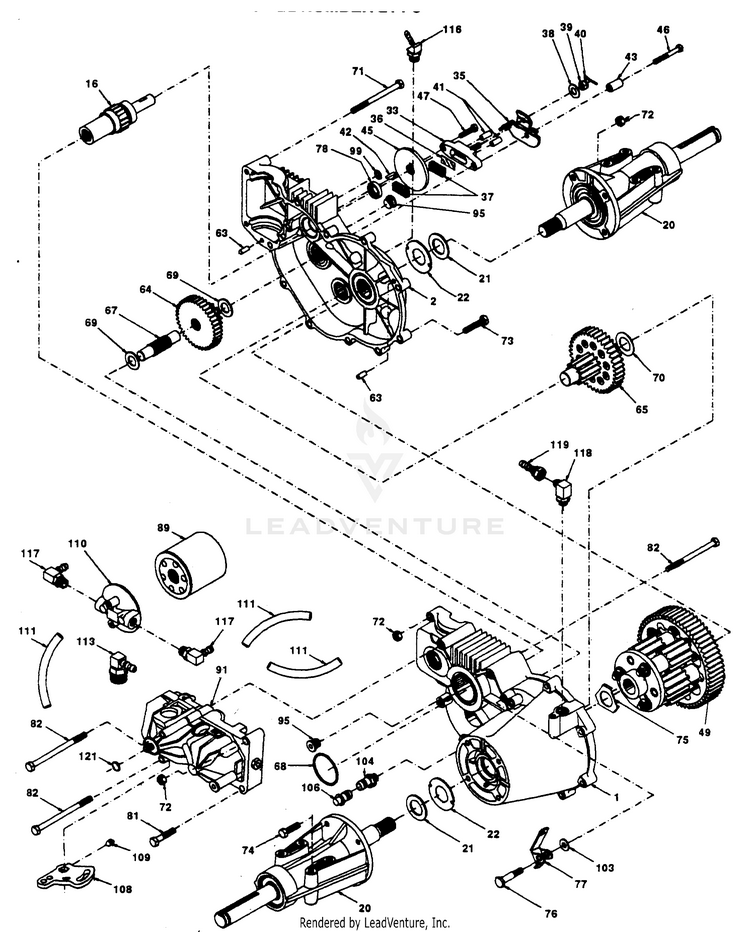

Schematic Image Zoomed
