Husqvarna PP20H50JA (1994) Tractor

Model: PP20H50JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

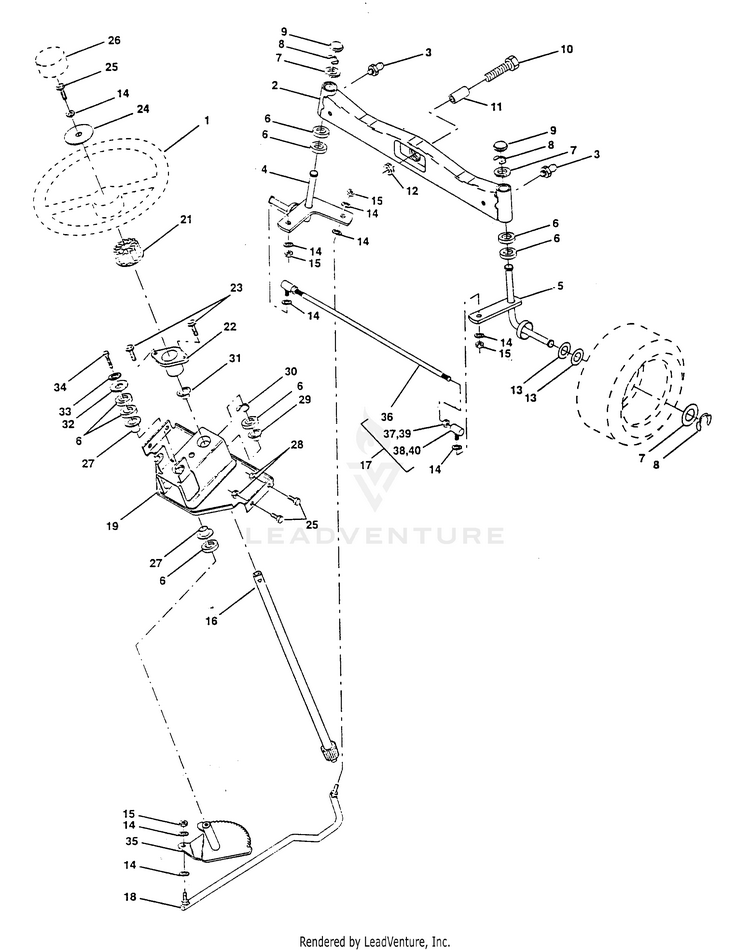

STEERING ASSEMBLY

...
...
1
STEERING WHEEL NLA HUS-532150546
...
2
Axle Asm., Front HUS-532178557
...
3
Fitting, Grease HUS-532183226
...
4
Spindle Asm, LH HUS-532161849
...
5
Spindle Asm., RH HUS-532161848
...
6
WASHER THRUST HUS-532006266
...
7
Washer 25/32 x 1-5/8 x 16 Ga. HUS-532121748
...
8
Ring, Klip #T5304-75 HUS-812000029
...
9
Cap, Spindle HUS-532121232
...
10
Bolt, Fin Hex 5/8-11 x 2-3/4 HUS-874781044
...
11
Spacer, Brg. Axle Front HUS-532136518
...
12
Nut, Crownlock HUS-873681000
...
13
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
14
WASHER.3/8 HUS-539990118
...
15
Nut HUS-873680600
...
16
Shaft Asm., Steering HUS-532104591
...
17
Tie Rod HUS-532186799
...
18
Draglink, Ball Joint Solid Vgt HUS-532175572
...
19
STEERING SUPPORT KIT HUS-532144673
...
21
STEERING.WHEEL.ADAPTER HUS-532437747
...
22
KIT/BUSH HUS-532155108
...
23
Screw, Hex Wsh. Tap #10-16 x 1/2 HUS-817211008
...
24
Washer 13/32 x 2 3/8 x 12 Ga. HUS-819133812
...
25
Bolt, Fin Hex 3/8-16 x 1 Gr.5 HUS-874780616
...
26
STEERING WHEEL NLA HUS-532150546
...
27
BEARING.STEERING.COLUMN HUS-532003366
...
28
Nut HUS-873680600
...
29
Bearing, Flange HUS-532104239
...
30
Ring, Klip Truarc #5304-75 HUS-812000034
...
31
Bushing, Nyliner Snap HUS-532138136
...
32
Washer 11/32 x 1 x 10 Ga. HUS-819111610
...
33
Washer, Lock Hvy Hlcl Spr 5/16 HUS-810040500
...
34
HCS.5/16-18X3/4 HUS-539976934
...
35
Gear, Sector Steering HUS-532138059
...
36
Tie Rod HUS-532186799
...
37
Jam Nut RH Thread HUS-873360600
...
38
JOINT.RH HUS-532121160
...
39
Jam Nut LH Thread HUS-873700600
...
40
Joint Asm. Ball LH Thread HUS-532109851
