Husqvarna PP20H50JA (1994) Tractor

Model: PP20H50JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

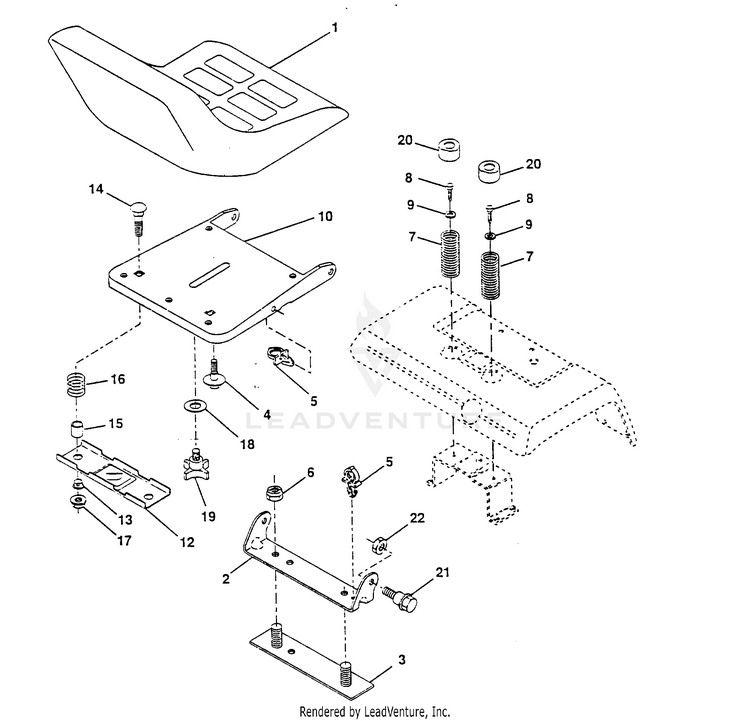

SEAT ASSEMBLY

...
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
...
2
Bracket, Pivot Seat HUS-532140551
...
3
Strap, Fender HUS-532140675
...
4
Bolt, Shoulder 5/16-18 X .62 HUS-532127018
...
5
Clip, Push In HUS-532140407
...
6
Nut HUS-873680600
...
7
SRPING.SEAT HUS-539110300
...
8
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
9
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
10
PAN, SEAT HUS-532195530
...
12
Bracket Mounting Switch HUS-532174648
...
13
Bushing, Snap HUS-532121248
...
14
Bolt, Carriage 1/4-20 X 1-3/8 HUS-872050411
...
15
Spacer, Split HUS-532121249
...
16
Spring, Cprsn HUS-532123740
...
17
Nut Crownlock 1/4-20 unc HUS-873680400
...
18
Washer 17/32 X 1-3/16 X 12 Ga. HUS-819171912
...
19
Knob Seat Adj. Wingnut HUS-532166369
...
20
Cap, Spring Seat HUS-532124238
...
21
Bolt, Shoulder 5/16-18 Unc HUS-532139888
...
22
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
