Husqvarna PP20H50JA (1994) Tractor

Model: PP20H50JA (1994)

Back To Assemblies

Save Part Not Listed?
product name

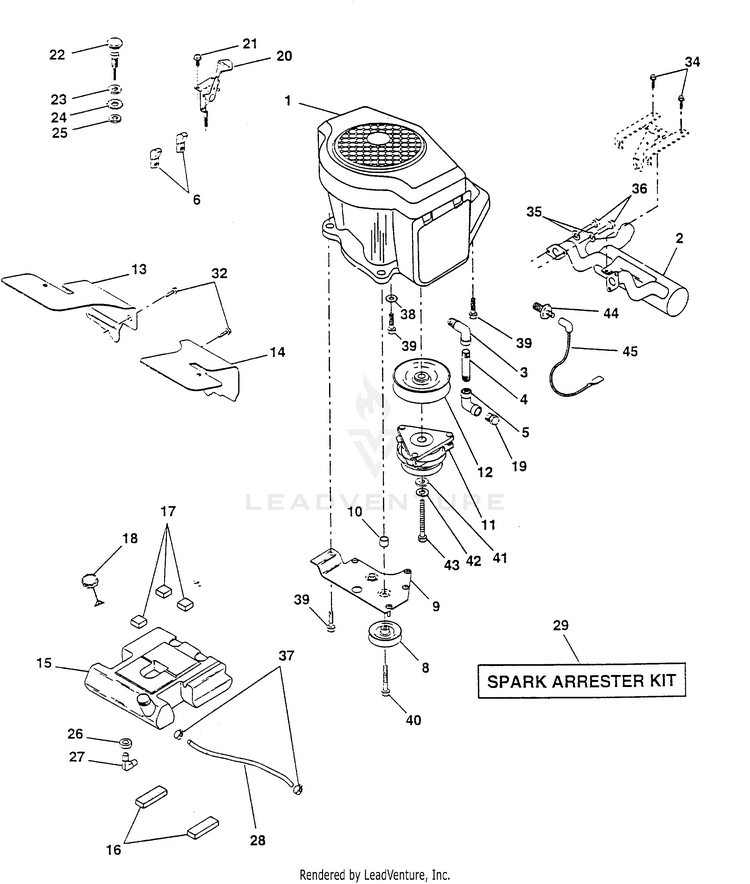

ENGINE

...
...
2
Muffler Asm Kohler VGT (Inc. Key No. 34) HUS-532144110
...
3
Elbow Street 3/8 NPT HUS-813240300
...
4
Nipple Pipe 3/8NPT X 3 - 1/2 HUS-813280328
...
5
Elbow STD 90 Degree 3/8 - 18 NPT HUS-813200300
...
6
Clamp Tube Double Engine HUS-532138129
...
8
Pulley, V-Idler HUS-532139123
...
9
Keeper Asm. Belt Engine VGT HUS-532177748
...
10
Bushing HUS-532105432
...
11
KIT CLUTCH ELECT REPL HUS-532142600
...
12
Pulley Engine VGT Elect Clutch HUS-532136907
...
13
BAFFLE HUS-532154575
...
14
Baffle Air RH Koh VGT HUS-532138487
...
15
SUB= 151346 HUS-532151346
...
16
Pad Spacer HUS-532109227
...
17
Pad Spacer HUS-532106082
...
18
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
19
Plug Oil Drain (Order From Engine Manufacturer) HUS-813290300
...
20
CONTROL.THROTTLE 37.90 HUS-532162150
...
21
HCS 1/4C X 5/8 HUS-539990072
...
22
Control Choke HUS-532138672
...
23
Washer 13/32 X 13/16 x 16 Ga HUS-819131316
...
24
WASHER.3/8 HUS-539990118
...
25
Nut HUS-873680600
...
26
Bushing HUS-532003645
...
27
Stem Tank Fuel HUS-532139277
...
28
Line, Fuel HUS-532008542
...
29
Spark Arrester Kit HUS-532132920
...
32
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
34
HCS.1/4-20.X1/2 HUS-539990071
...
35
Washer Lock 5/16 HUS-810040500
...
36
Screw Hex 5/16 - 16 UNC X 3/4 HUS-874570512
...
37
Clamp Hose HUS-532123487
...
38
WASHER.3/8 HUS-539990118
...
39
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
40
Screw Thdrol 3/8 - 16 X 3 - 1/4 HUS-817490652
...
41
Washer 1-1/2 OD X 15/32 ID X .250 HUS-532126197
...
42
LOCKWASHER.7/16 HUS-539990247
...
43
SUB= 150280 HUS-532150280
...
44
Switch Oil Sentry Kohler HUS-532142320
...
45
Wire Lead Sentry Kohler HUS-532142321
