Husqvarna PP20H50J (1994) Tractor

Model: PP20H50J (1994)

Back To Assemblies

Save Part Not Listed?
product name

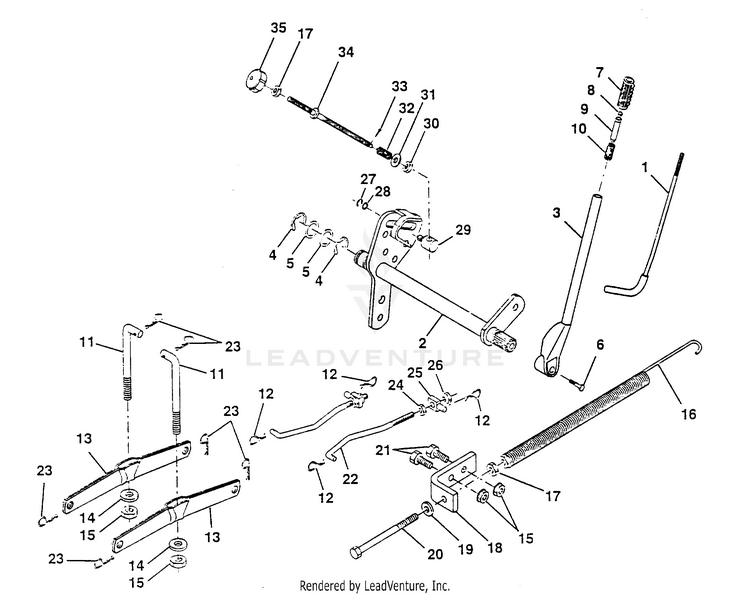

LIFT ASSEMBLY

...
...
1
Rod Asm., Lever HUS-532121006
...
2
Shaft Asm., Lift Vgt HUS-532137295
...
3
LIFT LEVER HUS-532123096
...
4
E-Ring Truarc #5133-87 HUS-812000022
...
5
Washer 29/32 x 1-1/4 x 16 Ga. HUS-819292016
...
6
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
7
GRIP, HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
9
PLUNGER BUTTON KIT HUS-532125925
...
10
SPRING HUS-532002876
...
11
Link Lift HUS-532145543
...
12
SPRING RETAINER HUS-532003146
...
13
Arm Suspension Rear HUS-532139868
...
14
BEARING.PIVOT.LIFT HUS-532169865
...
15
Nut HUS-873680600
...
16
SPRING HUS-532123994
...
17
Nut, Hex 3/8-16 HUS-873220600
...
18
Bracket, Spring Assist HUS-532143363
...
19
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
20
Bolt, Adjust Spring Assist HUS-532005328
...
21
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
22
Link, Front HUS-532127218
...
23
RETAINER SPRING HUS-532085902
...
24
Nut, Jam Hex 1/2-13 Unc HUS-873350800
...
25
Trunnion Blk Zinc HUS-532175689
...
26
NUT.1/2C.NYLOC HUS-539101331
...
27
Ring, Klip #T5304-37 HUS-812000037
...
28
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
29
Trunnion, Dp Stop Dbl Thds Plt HUS-532110810
...
30
Nut, Special HUS-532110807
...
31
Washer 13/32 x 5/8 x 16 Ga. HUS-819131016
...
32
Spring, Compression Inf Hgt HUS-532137150
...
33
COTTER PIN HUS-532003145
...
34
Rod, Adj Lift HUS-532137167
...
35
Knob, Inf 3/8-16 Unc HUS-532138057
