Husqvarna PP20H46A (1999) Tractor

Model: PP20H46A (1999)

Back To Assemblies

Save Part Not Listed?
product name

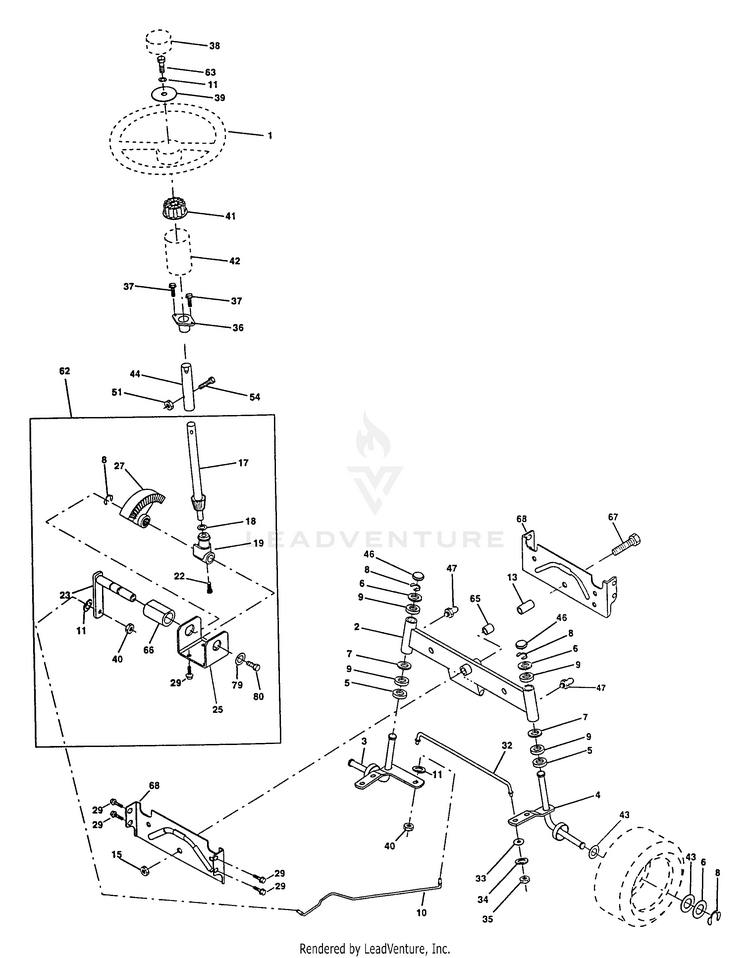

Steering Assembly

...
...
1
Wheel Steering HUS-121472X
...
2
Axle Asm Stmp Dropped STLT HUS-154427
...
3
Spindle Asm LH HUS-156483
...
4
Spindle Asm RH HUS-157473
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 X 1-5/8 X 16 Ga HUS-121748X
...
7
Washer 27/32 X 1-1/4 X 16 Ga HUS-19272016
...
8
Ring Klip #t5304-75 HUS-12000029
...
9
Bearing Col Strg Blk HUS-3366R
...
10
Link Drag Extended Stamped HUS-156438
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
Bearing Axle STLT/GT HUS-154779
...
15
Nut Lock Flange 5/8-11 Unc HUS-73901000
...
17
Shaft Asm Strg HUS-156546
...
18
Washer Thrust 515x 750x 033 HUS-57079
...
19
Support Shaft HUS-160395
...
22
Screw Hex Wsh Hd Torx HUS-165857
...
23
Shaft Asm Pittman HUS-165851
...
25
Bracket Steering HUS-154406
...
27
Gear Sector HUS-136874
...
29
Screw Thdrol 3/8-16x3/4 Ty-tt HUS-17490612
...
32
Rod Tie Ball J Adj VGT HUS-139929
...
33
Washer 11/32 x 3/4 x 16 Ga. HUS-19111216
...
34
Washer Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
35
Locknut 5/16-24 Unf 3847 HUS-73810500
...
36
Bushing Strg HUS-155099
...
37
Screw HUS-152927
...
38
Insert Cap Strg Wh Au HUS-126805X
...
39
Washer 13/32 X 2-3/8 X 8 Ga HUS-19133808
...
40
Lock nut HUS-7810H
...
41
Adaptor Wheel Strg HUS-100711L
...
42
Boot Steering Dash HUS-145054
...
43
Washer 25/32 X 1 1/4 X 16 Ga HUS-121749X
...
44
Extension Steering Shaft LR/LT HUS-153720
...
46
Cap Spindle Fr Top Blk HUS-121232X
...
47
Fitting Grease HUS-6855M
...
51
Nut Lock Hex w/ins 5/16-18 HUS-73800500
...
54
Bolt Fin Hex 5/16-18 Unc x 1-1/4 HUS-74780520
...
62
Kit, Steering Assembly Svc HUS-167902
...
63
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 HUS-74780616
...
65
Spacer Axle HUS-154780
...
66
Bearing Arm Pittman HUS-154404
...
67
Bolt, Fin Hex 5/8-11 UNC x 2-3/4 HUS-74781044
...
68
Axle, Brace HUS-154429
...
79
Washer 13/32 x 1-1/4 x 12 Ga. HUS-19132012
...
80
Bolt Hex Nylon 3/8-16 x 3/4 HUS-74950612
