Husqvarna PP20H46A (1999) Tractor

Model: PP20H46A (1999)

Back To Assemblies

Save Part Not Listed?
product name

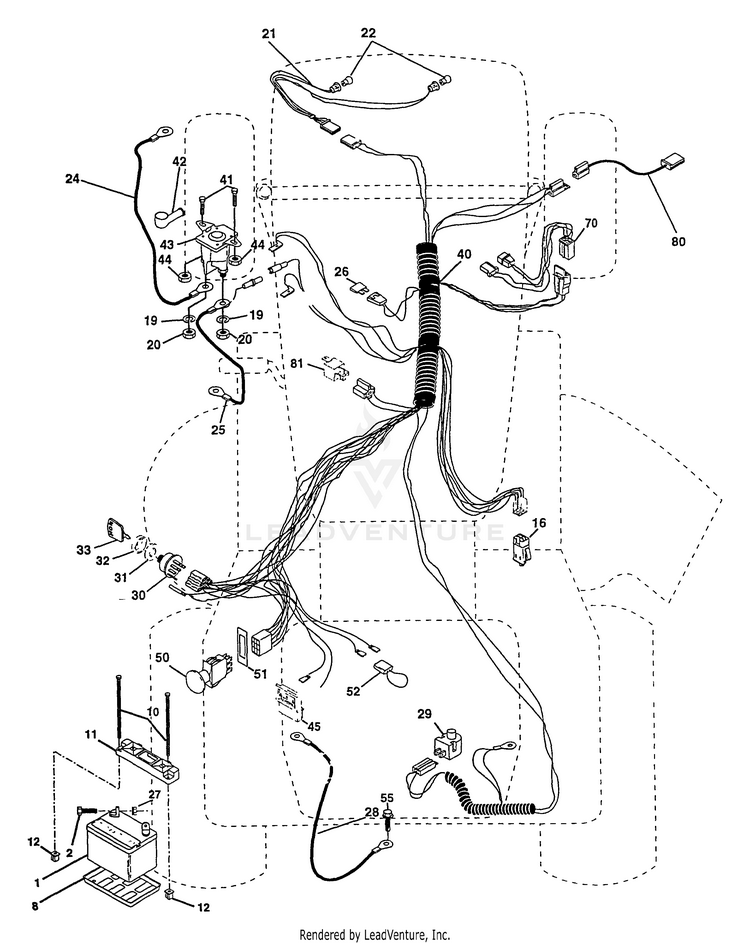

Electrical

...
...
1
Battery 12 Volt 35 AMP HUS-144927
...
2
Bolt Hex Hd 1/4-20 UNC X 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt, BTR FRT 1/4-20 x 7.5 HUS-145211
...
11
Hold Down Battery, Front HUS-150109
...
12
Nut, Push, Nylon HUS-145769
...
16
Switch Interlock Push-In HUS-153664
...
19
Washer Lock 1/4 HUS-10090400
...
20
Nut Jam Hex 1/4-20 UNC HUS-73350400
...
21
Harness Asm Light W/4152j HUS-166181
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery 6 Ga 11" red HUS-4799J
...
25
Cable Batterywire HUS-146147
...
26
Fuse 15 AMP HUS-166180
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable Ground HUS-145491
...
29
Switch Plunger Normal OP Olive HUS-160784
...
30
Switch Ign 4 pos w/lights HUS-140301
...
31
Nut Ignition HUS-124211X
...
32
Cover Sw Ignition HUS-141226
...
33
Key Ign Molded Indak HUS-122147X
...
40
Harness Ign. HUS-166150
...
41
Bolt Blk Fin Hex 1/4 - 20 x 1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-145673
...
44
Nut Keps Hex 1/4-20 UNC HUS-73640400
...
45
Ammeter Rectangular HUS-122822X
...
50
Switch, PTO 3PDT Black Delta 96 HUS-154959
...
51
Ring Retainer PTO HUS-140405
...
52
Protection Wire Loop HUS-141940
...
55
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
70
Harness, Eng. HUS-166668
...
80
Harness, Clutch EVX HUS-146685
...
81
Relay Asm HUS-109748X
