Husqvarna PP2050D (1993) Tractor

Model: PP2050D (1993)

Back To Assemblies

Save Part Not Listed?
product name

STEERING

...
...
2
STEERING WHEEL NLA HUS-532150546
...
3
Bolt, Hex 3/8-16 x 1 Grade 5 HUS-874780616
...
4
WASHER.3/8 HUS-539990118
...
5
Washer 13/32 x 2 3/8 x 12 Ga. HUS-819133812
...
6
STEERING WHEEL NLA HUS-532150546
...
7
STEERING.WHEEL.ADAPTER HUS-532437747
...
10
Bearing HUS-532009038
...
11
Support Assembly, Dash HUS-532101274
...
12
Nut Jam Hex 1/2-13 Unc HUS-873350800
...
13
SUB= 126881X HUS-532126881
...
14
Bearing, Flanged HUS-532104239
...
15
Klip, Ring HUS-812000034
...
16
WASHER THRUST HUS-532006266
...
17
Bracket, Frame Front HUS-532005213
...
18
BRACKET HUS-532104240
...
19
Nut HUS-873680600
...
20
Sector Assembly HUS-532120424
...
21
Bolt, Hex 1/2-13 x 5 Grade 5 HUS-874780880
...
22
Shaft, Steering HUS-532104591
...
23
Link, Drag HUS-532110497
...
24
Spindle, L.H. HUS-532139266
...
26
Rod, Tie (Inc. Key #56-60) HUS-532109849
...
27
Bearing, Flange HUS-532009040
...
28
RIM.ASM.8X5.FRONT.SERVICE.SLVR HUS-532148736
...
29
TIRE.FRT.(16X6).TURF.SAVER HUS-532122075
...
29A
Tube (Optional, Service Item Only) HUS-532008134
...
30
Klip, Ring HUS-812000029
...
31
Cap, Axle HUS-532104757
...
32
Washer 25/32 x 1-5/8 x 16 Gauge HUS-532121748
...
33
Cap, Valve HUS-532059192
...
34
Stem, Valve HUS-532065139
...
35
Fitting, Grease HUS-532000278
...
36
Spindle, R.H. HUS-532139265
...
38
Bellcrank Assembly HUS-532108137
...
39
Bolt, Hex 5/8-11 x 2-3/4 Grade 5 HUS-874781044
...
41
Fitting, Grease HUS-532183226
...
42
Nut, Crownlock HUS-873681000
...
44
Spacer Bearing HUS-532136518
...
45
Axle Asm., Front HUS-532178557
...
46
Bushing, Bellcrank HUS-532140015
...
48
Bracket, Axle HUS-532005284
...
49
Washer 29/32 x 1-1/4 x 16 Gauge HUS-819292016
...
56
Joint, Tie Rod, L.H. Thread HUS-532109851
...
57
Nut, Hex Jam 3/8-24 L.H. HUS-873700600
...
58
DRAG LINK HUS-532121159
...
59
Nut, Hex Jam 3/8-24 HUS-873360600
...
60
JOINT.RH HUS-532121160
...
61
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
62
Nut, Crownlock 3/8-16 HUS-873680600
...
63
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
64
Bolt, Hex 3/8-16 x 1 Grade 5 HUS-874780616
...
65
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
66
Nut HUS-873680600
...
67
Nut, Hex 3/8-16 HUS-873220600
...
72
PIN HUS-532677928
...
73
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
76
Collar Weld Assembly HUS-532121177
...
79
Tube HUS-532120199
...
80
Dust Cap Cover HUS-532121232
...
83
Clip 3/8 HUS-532100207

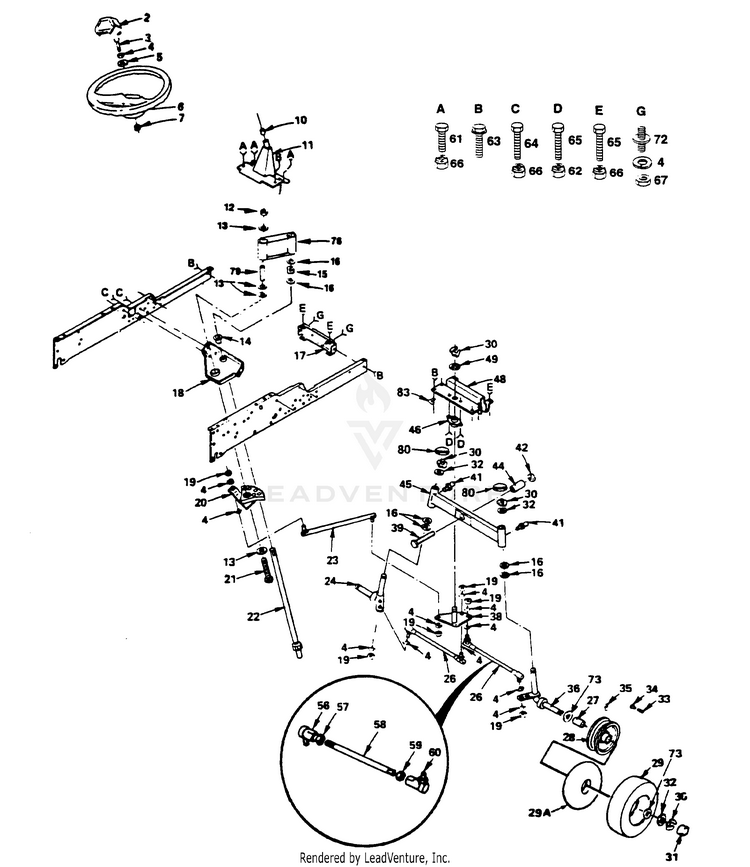

Schematic Image Zoomed
