Husqvarna PP2050D (1993) Tractor

Model: PP2050D (1993)

Back To Assemblies

Save Part Not Listed?
product name

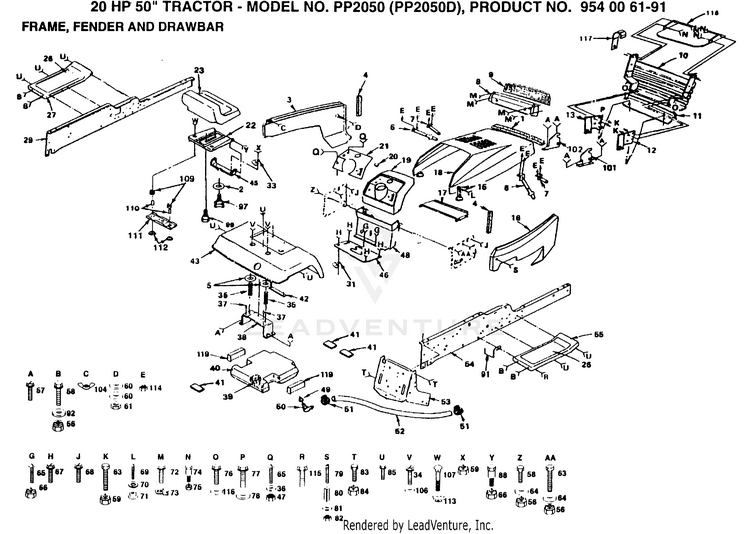

FRAME, FENDER AND DRAWBAR

...
...
1
Strip, Foam HUS-532109458
...
2
Washer 17/32 x 1-3/16 x 12 Gauge HUS-819171912
...
3
Panel-Side, L.H. HUS-532144525
...
4
Strip, Foam HUS-532106088
...
5
Cap, Spring HUS-532124238
...
6
Strap Assembly-Hinge, Rear HUS-532106784
...
7
Strap Assembly-Hinge, Front HUS-532104618
...
8
Bezel Assembly HUS-532124392
...
9
Lens HUS-532106395
...
10
Grill Assembly HUS-532122100
...
11
Strap, Grill HUS-532105419
...
12
Support, Grill, R.H. HUS-532110854
...
13
Support, Grill, L.H. HUS-532110855
...
15
Latch, Hood HUS-532109808
...
16
Panel, Side, R.H. HUS-532144526
...
17
Support, Battery HUS-532140229
...
18
Hood HUS-532144524
...
19
Dashboard HUS-532140398
...
20
Plug, Dash HUS-532125085
...
21
Dashplate HUS-532125457
...
22
PAN, SEAT HUS-532195530
...
23
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
...
26
Pad, Footrest HUS-532133671
...
27
Footrest, L.H. HUS-532124888
...
29
Rail, Frame, L.H. HUS-532140504
...
31
Clip, Insulated HUS-532126470
...
33
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
34
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
35
SRPING.SEAT HUS-539110300
...
36
WASHER - 15X7.3X1.6 HUS-734116301
...
37
Nut, Push HUS-532105531
...
38
Bracket, Fender HUS-532137113
...
39
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
40
SUB= 151346 HUS-532151346
...
41
Pad, Spacer HUS-532106082
...
42
Strap, Fender HUS-532124998
...
43
Fender HUS-532124998
...
45
Bracket, Pivot, Seat HUS-532126656
...
46
Cover, Shift-Gate HUS-532125458
...
47
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
48
Dash Assembly HUS-532104608
...
49
Bushing HUS-532003645
...
50
Stem, Tank Fuel HUS-532139277
...
51
Clamp, Hose HUS-532123487
...
52
Line, Fuel HUS-532008542
...
53
Drawbar, Gt HUS-532175282
...
54
Rail, Frame, R.H. HUS-532140505
...
55
Footrest, R.H. HUS-532124889
...
56
Nut HUS-873680600
...
57
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
58
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
59
Nut, Crownlock HUS-873680600
...
60
WASHER - M6 HUS-734115201
...
61
NUT.HEX..25-20.UNC HUS-532050675
...
63
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
64
Washer 13/32 x 13/16 x 16 Gauge HUS-819131316
...
65
Screw, Mach. Cr., Thd. 5/16-18 x 3/4 HUS-874180512
...
66
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
67
HCS.1/4-20.X1/2 HUS-539990071
...
68
Screw, Thdrol. 3/8-16 x 1/2 HUS-817490608
...
69
Screw, Pan Hd. #10-24 UNC HUS-871191008
...
70
Washer, Lock #10 HUS-810071000
...
71
NUT.WELD.#10-24 HUS-532002029
...
72
Screw, Hex Washer Hd Tap #10-16 x 5/8 HUS-817211010
...
73
"J" Fastener HUS-532104755
...
74
BOLT HUS-532007605
...
75
Nut, Crownlock 1/4-20 HUS-873680400
...
76
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-874760412
...
77
HCS.5/16-18X3/4 HUS-539976934
...
78
WASHER - 15X7.3X1.6 HUS-734116301
...
79
SCREW.PAN.HEAD HUS-874981024
...
80
Spacer, Split #10 x 3/4 HUS-532007206
...
81
WASHER HUS-734114601
...
82
NUT HUS-873271000
...
83
Bolt 7/16-14 x 1 Gr 5 HUS-874780716
...
84
Nut, Lock 7/16 HUS-873800700
...
85
Screw, Hex Washer Thread Rolling 3/8 x 16 x 1/2 HUS-817490608
...
88
Bolt, Shoulder HUS-532139888
...
91
Retainer, Belt, Lower HUS-532105500
...
92
WASHER HUS-734117201
...
97
Knob Seat Adj. Wingnut HUS-532166369
...
99
Bolt, Shoulder 5/16-18 x .62 HUS-532127018
...
101
Bracket, Assembly Pivot Frame, R.H. HUS-532110853
...
102
Bracket, Assembly Pivot Frame, L.H. HUS-532110852
...
104
KNOB BLK 1/2 NYLON HUS-532146525
...
106
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
107
Bolt, Carriage 1/4-20 x 1-3/8 HUS-872050411
...
109
Spring, Compression HUS-532123740
...
110
Spacer, Split HUS-532121249
...
111
Bracket Mounting Switch HUS-532174648
...
112
Bushing, Snap HUS-532121248
...
113
Nut Crownlock 1/4-20 unc HUS-873680400
...
114
Nut Crownlock 1/4-20 unc HUS-873680400
...
115
Screw 3/8-16 x 1-1/2 Smgml Tap/R Z HUS-817000616
...
116
Washer 9/32 x 5/8 x 16 HUS-819091016
...
117
Clip, Insulated HUS-532124967
...
118
Shield, Heat, Front HUS-532127637
...
119
Pad Idler HUS-532109227
