Husqvarna PP2050D (1993) Tractor

Model: PP2050D (1993)

Back To Assemblies

Save Part Not Listed?
product name

ELECTRICAL

...
...
1
Stop, Clutch HUS-532110882
...
2
WASHER.3/8 HUS-539990118
...
3
Bolt, Hex 3/8-16 x 3/4 HUS-874780612
...
4
Bolt, Hex 7/16-20 x 1-1/2 Gr. 5 HUS-871130724
...
5
Washer HUS-532126197
...
6
Clutch, Electric HUS-532127170
...
7
LOCKWASHER.7/16 HUS-539990247
...
8
Spacer, Clutch HUS-532128224
...
9
BATTERY CABLE HUS-532004799
...
10
KIT SOLENOID .95 HUS-532146154
...
11
Clip, Insulated HUS-532124967
...
12
Battery, Caps HUS-532121264
...
13
Cable, Starter HUS-532129458
...
15
Switch, Light HUS-532110712
...
16
Cover, Terminal Red HUS-532154336
...
17
Bulb, Light HUS-532004152
...
18
Harness, Socket, Light (w/4152J) HUS-532136850
...
19
Washer, Lock External Tooth 1/4 HUS-811150400
...
20
KNOB BLK 1/2 NYLON HUS-532146525
...
21
BUSHING HUS-734117771
...
22
SUB= 150109 HUS-532150109
...
23
BATTERY.DRY.30.AMP HUS-532123899
...
24
HUS-532004207
...
26
TRAY.BATTERY HUS-532007603
...
27
Bolt, Carriage 1/4-20 x 7-1/2 HUS-872240460
...
28
Tube, Plastic HUS-532007697
...
29
Clamp, Hose HUS-532109596
...
30
Clip HUS-532100207
...
31
SWITCH.N.C *SUBS/1* HUS-539101080
...
32
Switch, P.T.O. HUS-532126018
...
33
HEX NUT T HUS-532004022
...
34
Fuse HUS-532108824
...
35
HUS-873161000
...
38
SWITCH.SNAPMOUNT.NC HUS-532421062
...
39
Key HUS-532122147
...
40
Nut, Ignition HUS-532124211
...
41
Cover, Key Ignition HUS-532141226
...
42
KIT.SWITCH.IGNITN HUS-532365402
...
43
Screw, Slot, Pan Head #10-33 x 1/2 HUS-874641008
...
44
Harness, Ignition HUS-532139012
...
45
WIRE TIE HUS-532007192
...
46
Light Package HUS-532138101
...
47
WASHER, LOCK 1/4 HUS-810040400
...
48
NUT.HEX..25-20.UNC HUS-532050675
...
49
HCS.1/4-20.X1/2 HUS-539990071
...
50
Bolt, Hex Hd. 1/4-20 x 3/4 HUS-874760412
...
51
Washer 9/32 x 5/8 x 16 Gauge HUS-819091016
...
52
Washer, Lock 1/4 HUS-810040400
...
53
NUT.HEX..25-20.UNC HUS-532050675
...
54
Screw, Pan Hd. #10-32 HUS-874641008
...
55
HOUR METER HUS-532169642
...
56
Screw #10-24 x 1/2 (Black) HUS-817011008
...
57
Assembly, Relay HUS-532109748
...
59
WASHER.3/8 HUS-539990118
...
60
Bulb, Dashboard Light HUS-532110143

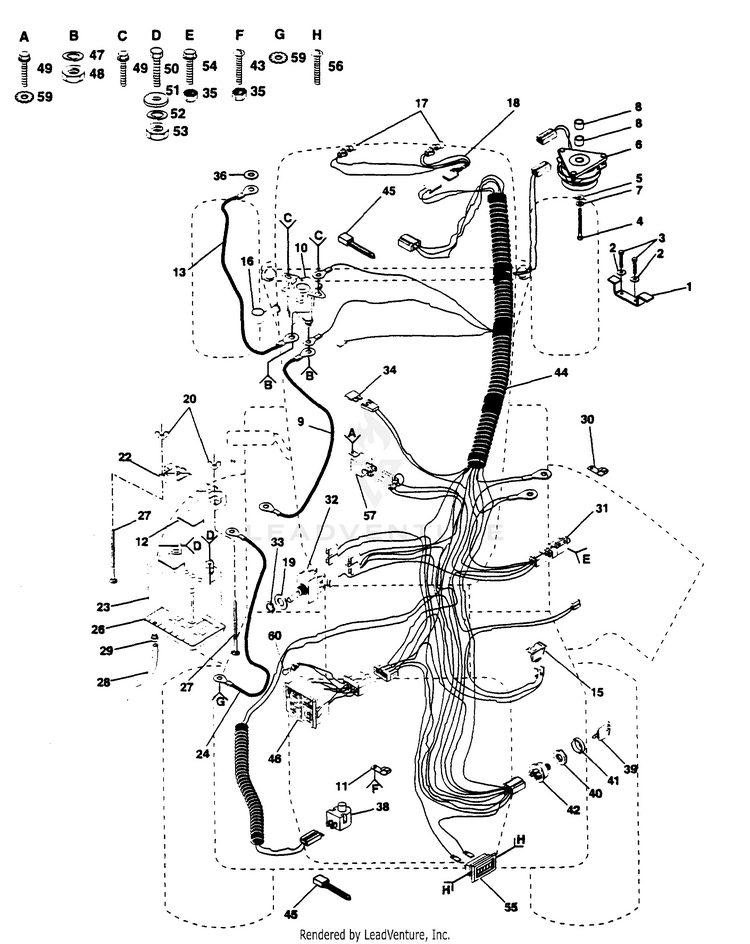

Schematic Image Zoomed
