Husqvarna PP2050D (1993) Tractor

Model: PP2050D (1993)

Back To Assemblies

Save Part Not Listed?
product name

GROUND DRIVE

...
...
1
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
3
Tube Assembly, Exhaust HUS-532110891
...
4
Washer, Lock Hvy Helical 1/4 HUS-810040400
...
5
Washer 9/32 x 3/4 x 12 Gauge HUS-819091212
...
6
Muffler, Exhaust HUS-532127881
...
8
Chaff Guard HUS-532110947
...
9
Spacer HUS-532133692
...
11
Base, Engine HUS-532110867
...
12
Adapter HUS-532104577
...
13
Pulley, Ground Drive HUS-532121355
...
14
Actuator, Interlock Switch HUS-532178575
...
15
Nut HUS-873680600
...
16
WASHER.3/8 HUS-539990118
...
17
Washer 13/32 x 13/16 x 16 Gauge HUS-819131316
...
18
Control, Throttle HUS-532132746
...
20
Control, Choke HUS-532132780
...
21
Cover, Pedal HUS-532123533
...
22
Washer 25/32 x 1-1/4 x 16 Gauge HUS-532121749
...
23
COTTER PIN HUS-532003145
...
25
Shaft, Foot Pedal HUS-532104375
...
26
Bracket, Interlock HUS-532104601
...
28
Yoke HUS-532100604
...
29
Rod, Brake HUS-532005308
...
30
Spring, Compression HUS-532007241
...
31
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
32
Nut HUS-873680600
...
33
BRAKE BRACKET HUS-532677637
...
34
Guide, Rod, Brake HUS-532007229
...
35
Rod, Clutch HUS-532101356
...
36
Pin, Clevis HUS-532005102
...
37
Cap, Plunger HUS-532071673
...
39
Rod, Parking Brake HUS-532136284
...
40
Bracket, Rod, Shift HUS-532105598
...
41
Pin, Roll 3/16 x 1-1/4 HUS-532005142
...
42
Knob HUS-532121466
...
43
Muffler, Guard HUS-532108885
...
44
Nut HUS-873680600
...
45
Nut, Crownlock 3/8-16 HUS-873680600
...
46
Bracket, V-Pulley, Drive, Mule HUS-532139994
...
47
Bolt, Carriage 3/8-16 x 1-3/4 HUS-872110614
...
48
Bracket, Idler, Flat HUS-532139871
...
49
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
50
Bolt, Carriage 3/8-16 x 3/4 HUS-872140606
...
51
Idler, Flat HUS-532102403
...
52
Pulley, Idler HUS-532101344
...
53
Keeper, Belt HUS-532122824
...
54
Rod, Shift, Hi - Lo HUS-532122253
...
55
Clip, Connecting Link, Spring HUS-532122268
...
57
Washer 13/32 x 7/8 x 13 Gauge HUS-819131413
...
58
PULLEY.IDLER.FLAT HUS-532173438
...
59
Retainer, Spring HUS-532121358
...
60
Retainer, Belt HUS-532121360
...
62
Bracket Assembly, Clutch HUS-532101358
...
64
Pulley, V-Idler HUS-532139123
...
65
Washer, Hardened HUS-532000207
...
66
Bracket, Clutch W/Bearing (Incl. Key No. 68) HUS-532121356
...
67
Ring, Klip HUS-812000039
...
68
Bearing, Idler HUS-532105706
...
70
Spring, Extension HUS-532121357
...
71
BOLT, FIN, HEX 3/8-16 X 1-3/4 HUS-874780628
...
72
Pulley, Transaxle HUS-532137524
...
73
Locknut 1/2-20 HUS-532009204
...
74
KEY HUS-532009858
...
75
V-Belt HUS-532110883
...
76
Washer, Thrust, Axle HUS-532007563
...
77
HUB.ASSEMBLY.WHEEL.REAR HUS-532634692
...
78
RIM.ASM.12"REAR.SILVER HUS-532106277
...
79
Ring, Klip HUS-812000034
...
80
HUS-532122077
...
80A
Tube, Rear (Optional, Service Item Only) HUS-532007154
...
81
Cap, Valve HUS-532059192
...
82
Stem, Valve HUS-532065139
...
83
Key, Woodruff #9 (3/16 x 3/4) HUS-532125096
...
84
SUPPORT BRACKET HUS-532156404
...
85
Band, Brake HUS-532101122
...
86
Drum, Brake HUS-532000214
...
89
NUT.1/4C.NYLOC HUS-539976978
...
90
Fitting, Grease HUS-532124860
...
94
WASHER.3/8 HUS-539990118
...
96
Screw, Hex Socket Hd. 5/16-16 x 3/4 HUS-874570512
...
97
Washer, Lock 1/4 HUS-810040400
...
98
Bolt, Hex 3/8-16 x 1-1/4 Grade 5 HUS-874760620
...
100
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
101
Bolt, Hex Head 3/8-16 x 1 Grade 5 HUS-874780616
...
102
Screw, Hex 5/16-18 x 1 HUS-817190516
...
103
Screw, Fin #10-24 x 1 HUS-874321016
...
104
Nut, Crownlock #10-24 HUS-532069180
...
105
Bolt, Hex Head 1/4-20 x 3/4 HUS-874760412
...
108
Bolt, Carriage 3/8-16 x 1 Grade 5 HUS-872110608
...
109
Bolt, Carriage 5/16-18 x 3/4 HUS-872110506
...
110
Nut, Lock Hex W/Ins. 5/16-18 HUS-873800500
...
111
Washer 13/32 x 1 x 12 Gauge HUS-819131612
...
114
Bolt, Fin Hex 7/16-14 x 1-1/4 HUS-874780720
...
115
LOCKWASHER.7/16 HUS-539990247
...
116
Bolt, Hub HUS-532140080
...
117
Bolt, Carriage 1/4-20 x 5/8 HUS-872140405
...
118
NUT.HEX..25-20.UNC HUS-532050675
...
119
Bolt 7/16-14 x 1 Gr 5 HUS-874780716
...
120
Nut, Crownlock 7/16-14 HUS-873680700
...
121
Screw, Mach. Udrcut. Flat Head 3/8-16 x 3/4 HUS-874370612
...
122
Locknut 5/16-18 HUS-532124949
...
123
HCS 1/4C X 5/8 HUS-539990072
...
124
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
126
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
127
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
128
Nyliner HUS-532110895
...
129
Pin, Cotter 1/4 x 1 HUS-876020816
...
131
Washer, Lock 5/16 HUS-810170500
...
133
SPARK ARRESTOR KIT HUS-532674380

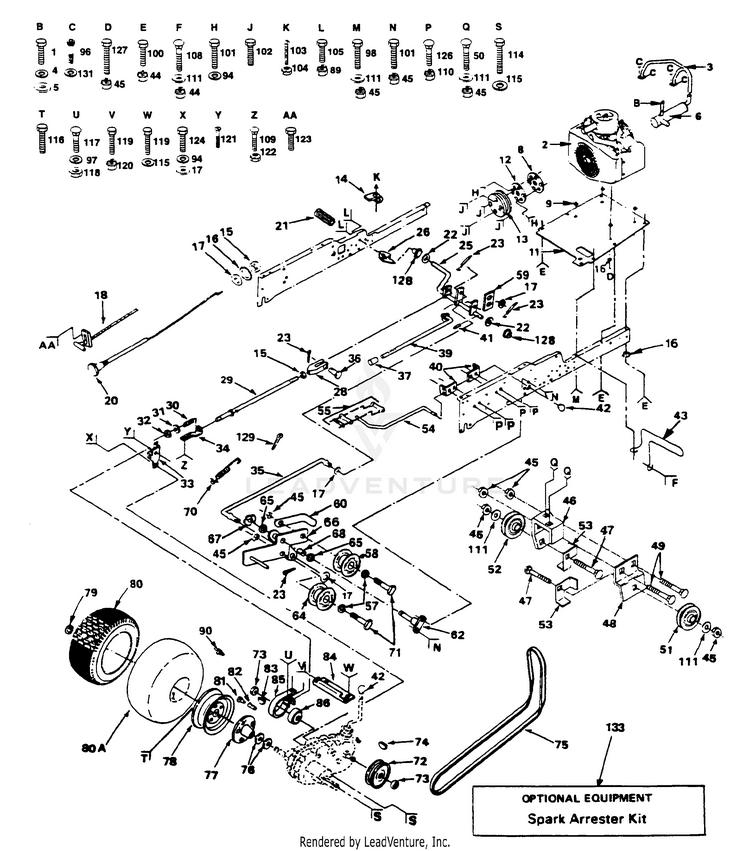

Schematic Image Zoomed
