Husqvarna PP2050D (1993) Tractor

Model: PP2050D (1993)

Back To Assemblies

Save Part Not Listed?
product name

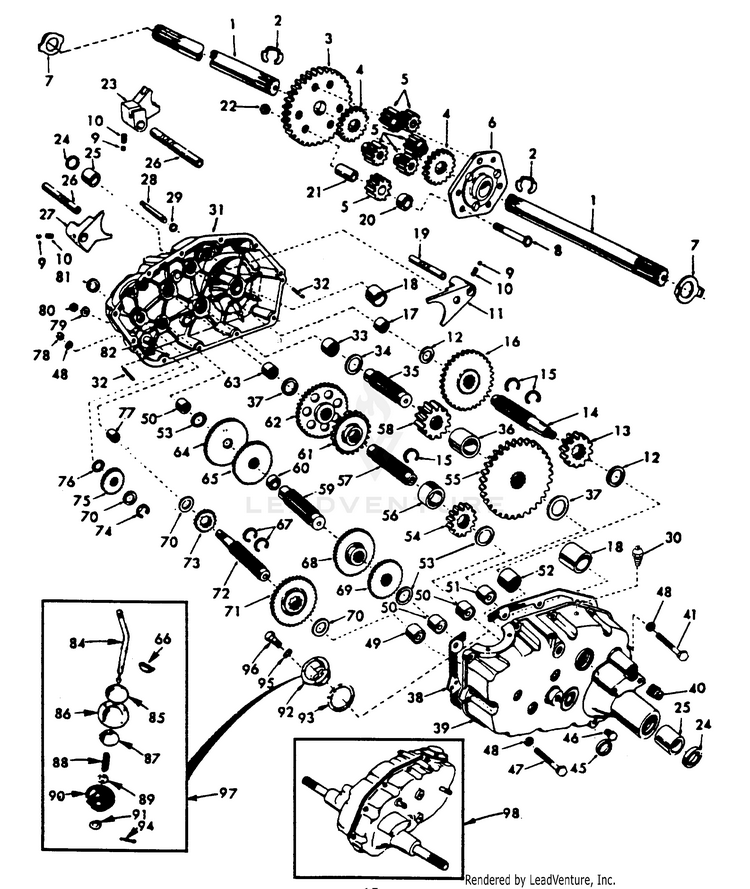

TRANSAXLE

...
...
1
AXLE SHAFT HUS-532004197
...
2
Retaining, Ring HUS-812000034
...
3
Transaxle, 6 Speed, Complete Assembly HUS-532184956
...
4
Differential Gear HUS-532004216
...
5
Differential Gear HUS-532004215
...
6
Differential Carrier HUS-532004217
...
7
WASHER HUS-532006256
...
8
Hex, Bolt 3/8-24 x 3-1/4 (1" Thread Length) HUS-874020652
...
9
HUS-532100482
...
10
KIT.SPRING.GT/TIL HUS-532145359
...
11
Shift Fork, High-Low Range HUS-532004985
...
12
WASHER THRUST HUS-532006266
...
13
PINION HUS-532004212
...
14
GEAR SHAFT HUS-532004196
...
15
SNAP RING HUS-532006276
...
16
GEAR HUS-532063363
...
17
Needle Bearing HUS-532008118
...
18
BEARING HUS-532008740
...
19
Shift Fork Shaft, High-Low Range HUS-532122238
...
20
Differential Pinion Spacer HUS-532004218
...
21
PINION HUS-532006252
...
22
Nut HUS-873680600
...
23
Shift Fork, L.H. HUS-532004986
...
24
OIL SEAL HUS-532007393
...
25
BEARING.OUTER.PM.TRANSAXLE HUS-532178285
...
26
SHAFT HUS-532006216
...
27
Shift Fork, R.H. HUS-532006262
...
28
Shift Shaft, High-Low Range HUS-532122254
...
29
Oil Seal HUS-532006269
...
30
Pressure Relief Valve HUS-532005855
...
31
Transaxle Assembly Less Brake Drum Shift Lever (Inc. 17,18,25,33,50,63,76,77, and 82) HUS-532137982
...
32
Dowel Pin HUS-532006277
...
33
Needle Bearing HUS-532004225
...
34
Thrust Bearing Race HUS-532007396
...
35
4th Reduction Gear Shaft HUS-532004198
...
36
4th Reduction Gear Spacer HUS-532004200
...
37
Thrust Bearing Race HUS-532007395
...
38
Gearcase Gasket HUS-532121878
...
39
Transaxle Assembly Less Brake Drum Shift Lever HUS-532137982
...
40
Pipe Plug 1/2-14 N.P.T. HUS-813320400
...
42
Bolt, Hex 5/16-18 UNC x 1-5/8 HUS-874780526
...
45
Oil Seal HUS-532006271
...
46
Pipe Plug 1/4-18 N.P.T. HUS-813060200
...
47
HCS.5/16-18X1 1/2.GR5 HUS-539976935
...
48
Washer Lock Hvy Hlcl Spr 5/16 HUS-810040500
...
49
BEARING HUS-532004895
...
50
Needle Bearing HUS-532004222
...
51
Needle Bearing HUS-532001529
...
52
Needle Bearing HUS-532008119
...
53
Thrust Bearing Race HUS-532004220
...
54
3rd Reduction Pinion-Low HUS-532004209
...
55
GEAR HUS-532004213
...
56
3rd Reduction Pinion Spacer HUS-532004442
...
57
2nd Reduction Gear Shaft HUS-532004195
...
58
Final Drive Pinion HUS-532004214
...
59
1st Reduction Gear Shaft HUS-532004194
...
60
1st Reduction Shaft Spacer HUS-532007528
...
61
PINION HUS-532004208
...
62
2nd Reduction Gear HUS-532124665
...
63
Needle Bearing HUS-532007398
...
64
LOW SPEED GEAR HUS-532004203
...
65
Reverse Gear HUS-532004204
...
66
Key-Hi-Pro 1/8 x 17/32 HUS-532002898
...
67
Snap Ring Crescent Type HUS-532004926
...
68
Intermediate Speed Gear HUS-532004205
...
69
High Speed Gear HUS-532004206
...
70
Thrust Bearing Race HUS-532001370
...
71
GEAR.CLUSTER.GT. HUS-532063369
...
72
Input Shaft HUS-532000208
...
73
Low Speed Pinion HUS-532004201
...
74
E-Ring HUS-812000002
...
75
Reverse Idler Gear HUS-532001153
...
76
Reverse Idler Thrust Washer HUS-532124862
...
77
Needle Bearing HUS-532003990
...
78
Hex, Nut 5/16-18 HUS-873220500
...
79
Sealing Washer HUS-532001167
...
80
Nut, Hex 7/16-20 HUS-873610700
...
81
SEAL HUS-532006270
...
82
SHAFT HUS-532007384
...
84
Gear Shift Lever Bent HUS-532005384
...
85
Gear Shift Cap HUS-532002978
...
86
COVER HUS-532063385
...
87
GUIDE BALL HUS-532008739
...
88
Spring HUS-532004924
...
89
Washer HUS-532052160
...
90
Shift Mechanism Seal HUS-532110542
...
91
Washer 9/16 x 15/16 x 12 Ga. HUS-819181511
...
92
Gear Shift Gate and Reinforcement HUS-532000075
...
93
Shift Ball Cover Gasket HUS-532006274
...
94
Cotter Pin 1/8 x 3/4 HUS-876020412
...
95
Lockwasher 5/16 HUS-810040500
...
96
Hex, Bolt 5/16 x 18 UNC x 7/8 HUS-874760514
...
97
Gear Shift Lever Assembly HUS-532124863
...
98
Transaxle Assembly Less Brake Drum Shift Lever HUS-532137982
