Husqvarna PP18H44J (1994) Tractor

Model: PP18H44J (1994)

Back To Assemblies

Save Part Not Listed?
product name

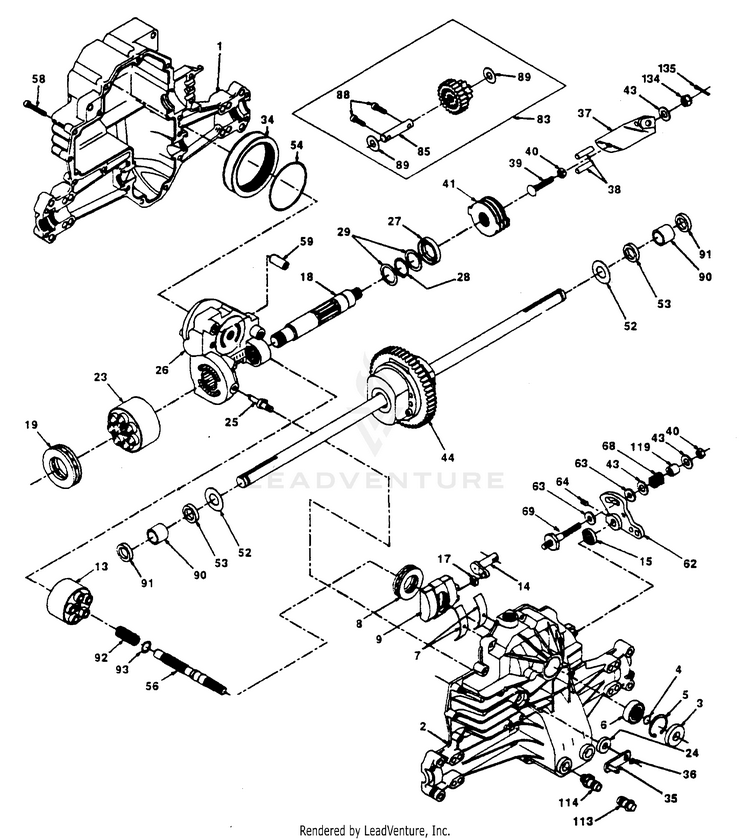

HYDRO-GEAR TRANSAXLE -- MODEL NUMBER 319-0750

...
...
1
Housing, Lower HUS-532142930
...
2
Assembly, Upper Housing HUS-532142931
...
3
Seal, Lip HUS-532142932
...
4
Ring, Wire Retaining HUS-532142928
...
5
Ring, Retaining HUS-532142933
...
6
Bearing, Shaft Ball HUS-532142934
...
7
Bearing, Cradle HUS-532142935
...
8
BEARING, THRUST HUS-532150771
...
9
Swashplate, Variable HUS-532142937
...
13
RETAINER HUS-532169898
...
14
Arm, Trunnion HUS-532142939
...
15
Seal, Lip HUS-532142940
...
17
Guide, Slot HUS-532142941
...
18
Shaft, Motor HUS-532142942
...
19
Bearing, Thrust 42 x 68 x 16 HUS-532142943
...
23
Block, Cylinder Assembly HUS-532142944
...
24
Seal, Lip 10 x 25 x 7 HUS-532142945
...
25
Actuator, Bypass HUS-532142946
...
26
Center Section Assembly Kit HUS-532142947
...
27
Seal, Lip 26 x 42 x 8 HUS-532142948
...
28
Ring, Retaining HUS-532142949
...
29
Washer 26 x 35 x 1 HUS-532142950
...
34
FILTER HUS-532169893
...
35
Arm, Bypass HUS-532142952
...
36
Ring, Retaining HUS-532142953
...
37
Arm, Brake Actuator HUS-532122660
...
38
Pin, Actuating HUS-532142955
...
39
Bolt 5/16-24 x 1-3/4 HUS-532142956
...
40
Locknut, Hex 5/16-24 UNJC HUS-532142957
...
41
Brake Rotor/Stator Kit HUS-532142958
...
43
Arm, Brake Actuator HUS-532122660
...
44
Differential Assembly HUS-532142959
...
52
Washer 3/4 x 1.5 x .03 HUS-532142960
...
53
Seal .75 x 1.25 x .250 HUS-532142961
...
54
O-Ring .103 x 2.987 ID HUS-532142962
...
56
Shaft, Input HUS-532142963
...
58
Bolt 1/4-20 x 1.38 HUS-532142964
...
59
Pin .5 OD x .43 ID x .750 HUS-532142965
...
62
Arm, Control HUS-532142966
...
63
Puck, Dampener HUS-532142967
...
64
Set Screw HUS-532142920
...
65
Bolt #8-32 x .875 HUS-532142968
...
68
Spring HUS-532142969
...
69
Socket Set Screw HUS-532142970
...
83
Jack Shaft Assembly HUS-532142971
...
85
Jack Shaft HUS-532142972
...
88
Capscrew HUS-532142973
...
89
Washer HUS-532142974
...
90
Sleeve Bearing HUS-532142975
...
91
SEAL LIP HUS-532169054
...
92
Spring, Block HUS-532142977
...
93
Washer, Block Thrust HUS-532142978
...
95
Strap, Locking HUS-532142979
...
113
Cap Vent HUS-532142578
...
114
Fitting, O-Ring Assembly HUS-532142918
...
119
Spacer HUS-532142980
...
121
Jam Nut 5/16-24 HUS-532142981
