Husqvarna PP1846 (1999 & Before) Tractor

Model: PP1846 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

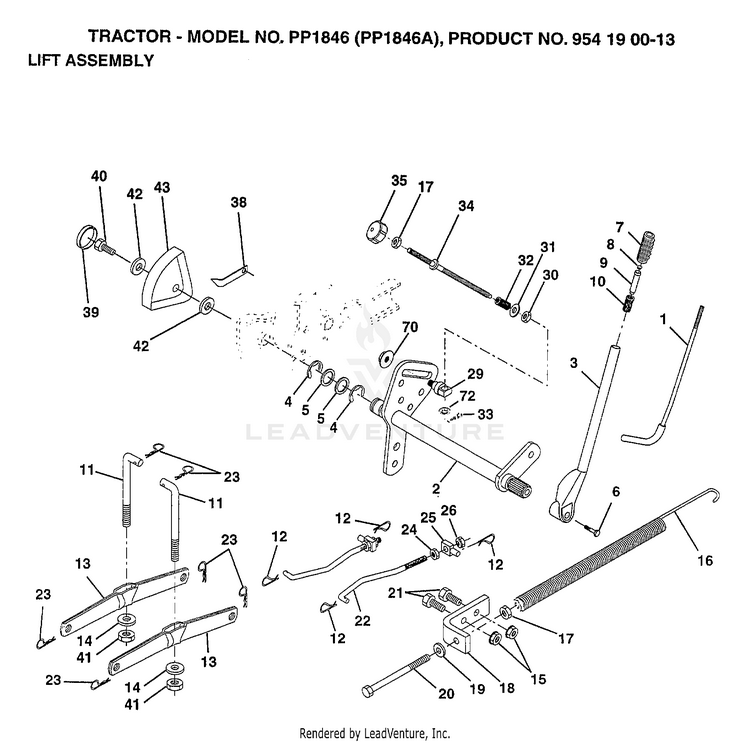

LIFT ASSEMBLY

...
...
1
LEVER ROD LT HUS-121006X
...
2
SHAFT AMS LIFT HUS-154389
...
3
SUB= 123096X HUS-121002X
...
4
E-RING HUS-12000022
...
5
WASHER HUS-19292016
...
6
"BOLT,HEX" HUS-74780624
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-124526X
...
9
SUB= 125925X HUS-122364X
...
10
SPRING T HUS-2876H
...
11
LINK.LIFT.MWR.VGT HUS-146704
...
12
RETAINER.SPRING HUS-3146R
...
13
ARM SUSP REAR HUS-139868
...
14
BEARING PVT LH HUS-140302
...
15
SUB= 73690600 HUS-73680600
...
16
SUB= 918674A247 HUS-674A247
...
17
NUT HUS-73350600
...
18
BRACKET SPRING AS HUS-143363
...
19
WASHER HUS-19131316
...
20
BOLT-ADJ SPRING T HUS-5328J
...
21
BOLT HUS-74760616
...
22
LINK.FRONT HUS-127218
...
23
SUB= 85902 HUS-4939M
...
24
NUT HUS-73350800
...
25
TRUNION HUS-130171
...
26
NUT.LK.W/WSH.1/2. HUS-73800800
...
29
TRUNNION HUS-150233
...
30
NUT T HUS-110807X
...
31
WASHER HUS-19131016
...
32
SPRING.COMP.INF.H HUS-137150
...
33
SUB= 3145 HUS-76020308
...
34
ROD.ADJ.LIFT HUS-137167
...
35
KNOB INF 3/8-16 HUS-138057
...
36
SCREW HUS-17490612
...
38
POINTER-INDICAT HUS-155097
...
39
"PLUG,HOLE" HUS-123935X
...
40
SCREW HUS-17490512
...
41
NUT.CROWNLOCK.3/8 HUS-73540600
...
42
WASHER HUS-19112410
...
43
HEIGHT INDICATOR HUS-123934X
...
70
NUT.HXFLG.LOCK. HUS-145212
...
72
NUT PUSH M HUS-110452X
