Husqvarna PP1844KA (1995) Tractor

Model: PP1844KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

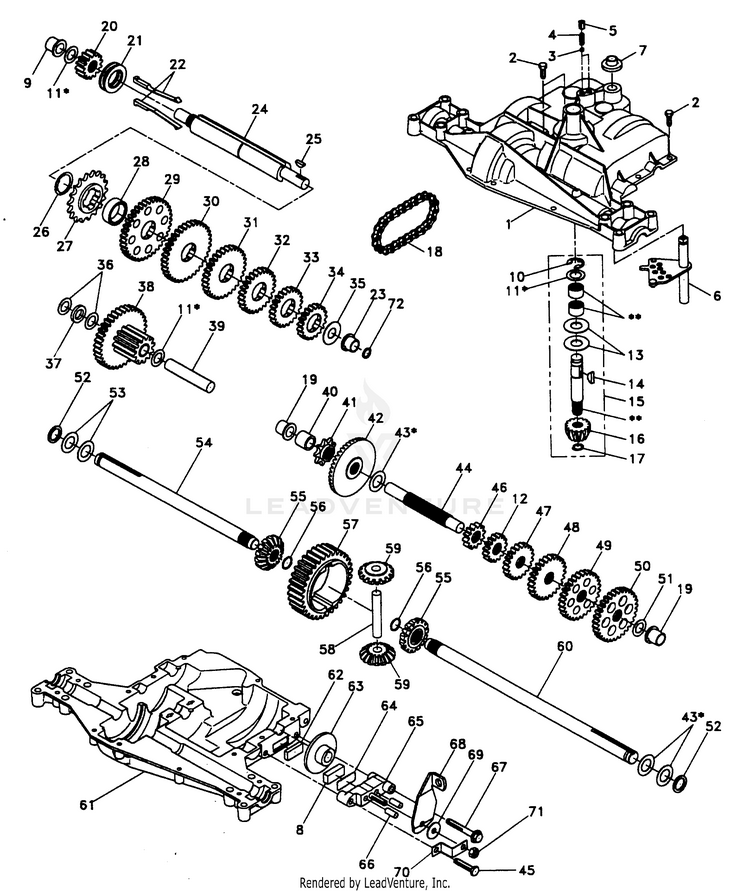

DANA TRANSAXLE--MODEL NUMBER 4360-96

...
...
1
Housing, Upper HUS-532132671
...
2
Screw, Tapping, Large 1/4-20 x .734 HUS-532002274
...
3
Ball, Detent HUS-532068003
...
4
Spring, Detent HUS-532105904
...
5
Screw, Set HUS-532105905
...
6
Kit, Shifter Assembly HUS-532134788
...
7
Boot, Shifter HUS-532134399
...
8
Puck, Friction HUS-532120951
...
9
Bearing, Flange HUS-532148266
...
10
Ring, Retaining HUS-532002225
...
11
Assembly, Kit, Shim, .625 Shaft HUS-532134793
...
12
Gear, Spur, 15 Teeth HUS-532143679
...
13
Washer, Plain .632 x 1.38 x .046 HUS-532120415
...
14
Key, Woodruff, #9 HUS-532142674
...
15
Assembly, Kit, Input Shaft HUS-532106846
...
16
INPUT SHAFT HUS-532167148
...
17
Ring, Retaining HUS-532105909
...
18
Chain, 24 Pitches HUS-532105910
...
19
Bearing, Flange HUS-532105911
...
20
Gear, Spur, 14 Teeth HUS-532142675
...
21
Collar, Clutch HUS-532148267
...
22
Assembly, Kit, Clutch Keys HUS-532138236
...
23
Bearing, Flange HUS-532148268
...
24
SHAFT INTER 5404 HUS-532143673
...
25
Key, Woodruff, #61 HUS-532002244
...
26
Ring, Retaining HUS-532105916
...
27
Sprocket, 18 Teeth HUS-532120470
...
28
Spacer HUS-532110070
...
29
Gear, Spur, 37 Teeth HUS-532142677
...
30
Gear, Spur, 35 Teeth HUS-532142681
...
31
Gear, Spur, 30 Teeth HUS-532124644
...
32
Gear, Spur, 25 Teeth HUS-532108980
...
33
Gear, Spur, 22 Teeth HUS-532120406
...
34
Gear, Spur, 19 Teeth HUS-532134796
...
35
Washer, Plain .640 x 1.37 x .061 HUS-532105925
...
36
Washer, Plain .632 x 1.00 x .026 HUS-532002232
...
37
Spacer .630 x 1.00 x .169 HUS-532108978
...
38
Assembly, Gear, Combination, 12 & 35 Teeth HUS-532110079
...
39
Shaft, Idler HUS-532124639
...
40
Spacer .633 x .87 x .755 HUS-532120472
...
41
Sprocket, 9 Teeth HUS-532105928
...
42
Gear, Bevel, 42 Teeth HUS-532106605
...
43
Assembly, Kit, Shim, .750 Shaft HUS-532134394
...
44
Shaft, Drive HUS-532120473
...
45
Screw, Tapping, Large 5/16-18 x 1.44 HUS-532106596
...
46
Gear, Spur, 12 Teeth HUS-532142678
...
47
Gear, Spur, 20 Teeth HUS-532120407
...
48
Gear, Spur, 25 Teeth HUS-532106589
...
49
Gear, Spur, 28 Teeth HUS-532120408
...
50
Gear, Spur, 31 Teeth HUS-532105937
...
51
Washer, Plain .632 x 1.00 x .060 HUS-532002226
...
52
Washer, Neoprene HUS-532134401
...
53
Washer, Plain .758 x 1.25 x .031 HUS-532002264
...
54
AXEL KIT, LH HUS-532154658
...
55
GEAR KIT HUS-532169651
...
56
Ring, Retaining HUS-532105941
...
57
Gear, Spur, 32 Teeth HUS-532110071
...
58
Shaft, Cross HUS-532120952
...
59
GEAR KIT HUS-532169651
...
60
Axle, R.H. HUS-532120475
...
61
Housing, Lower HUS-532142680
...
62
Puck, Friction HUS-532120961
...
63
Disc, Brake HUS-532007294
...
64
Spacer HUS-532108989
...
65
JAW BRAKE HUS-532164670
...
66
Pin, Dowel HUS-532120954
...
67
Screw, Tapping 5/16-18 x 2.25 HUS-532134799
...
68
Lever, Actuating HUS-532108992
...
69
Washer, Plain .321 x 1.00 x .055 HUS-532108996
...
70
Bracket, Anti-Rotation HUS-532120956
...
71
NUT HUS-873610500
...
72
Seal, Oil HUS-532148269
...
73
Shell Durina-O Grease (20 oz.) HUS-532126976
