Husqvarna PP1844KA (1995) Tractor

Model: PP1844KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

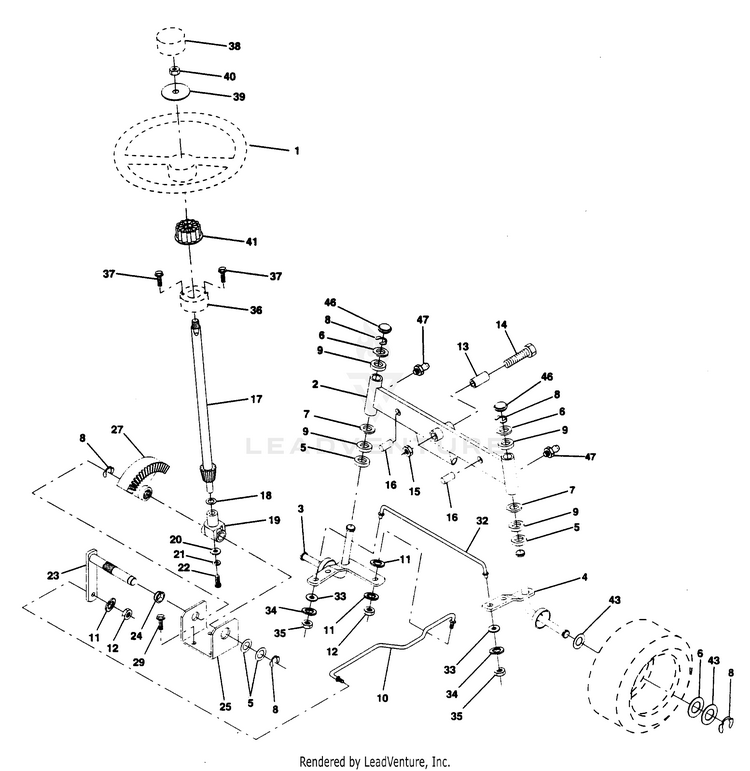

STEERING ASSEMBLY

...
...
1
STEERING WHEEL NLA HUS-532150546
...
2
Axle Asm Fr LT W/gzks 38/42 HUS-532142033
...
3
Spindle Asm LH HUS-532135227
...
4
Spindle Asm RH HUS-532135228
...
5
WASHER THRUST HUS-532006266
...
6
Washer 25/32 X 1-5/8 X 16 Ga HUS-532121748
...
7
Washer 27/32 X 1-1/4 X 16 Ga HUS-819272016
...
8
Ring Klip #t5304-75 HUS-812000029
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
10
Link Drag Sol Ball Jt 20 064 HUS-532130468
...
11
WASHER.3/8 HUS-539990118
...
12
Nut HUS-873680600
...
13
KIT-AXLE HUS-532155134
...
14
Bolt Hex 5/8-11 Unc X 3-1/2 HUS-874011056
...
15
Nut, Crownlock HUS-873681000
...
16
Pin Axle 5/8 X 1 55/1 54 Lg HUS-532132624
...
17
HUS-532156544
...
18
Washer Thrust 515x 750x 033 HUS-532057079
...
19
SUPPORT SHAFT HUS-532160395
...
20
Washer 9/32 x 5/8 x 16 Ga HUS-819091016
...
21
Washer Lock Hvy Helical 1/4 HUS-810040400
...
22
SCREW HUS-532165857
...
23
PITMAN SHAFT ASSY HUS-532156365
...
24
Nyliner Snap In HUS-532109816
...
25
Bracket Steering HUS-532124036
...
27
Gear Sector HUS-532136874
...
29
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
32
ROD.ASM.TIE.BALL.JOINT.NOVAN HUS-532170162
...
33
WASHER - 15X7.3X1.6 HUS-734116301
...
34
Washer, Lock Hvy Hlcl Spr 5/16 HUS-810040500
...
35
NUT HUS-873610500
...
36
Bushing Strg 3/4" Angle HUS-532145207
...
37
Screw Slftp #10-24 X 1/2 Ty-b HUS-817541008
...
38
STEERING WHEEL NLA HUS-532150546
...
39
Washer 53 X 2 25 X 160 Zinc HUS-532100712
...
40
Nut Hex Jam Toplock 1/2-20 Unf HUS-873940800
...
41
STEERING.WHEEL.ADAPTER HUS-532437747
...
43
Washer 25/32 X 1 1/4 X 16 Ga HUS-532121749
...
46
Cap Spindle Fr Top Blk HUS-532121232
...
47
Fitting, Grease HUS-532183226
