Husqvarna PP1844KA (1995) Tractor

Model: PP1844KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

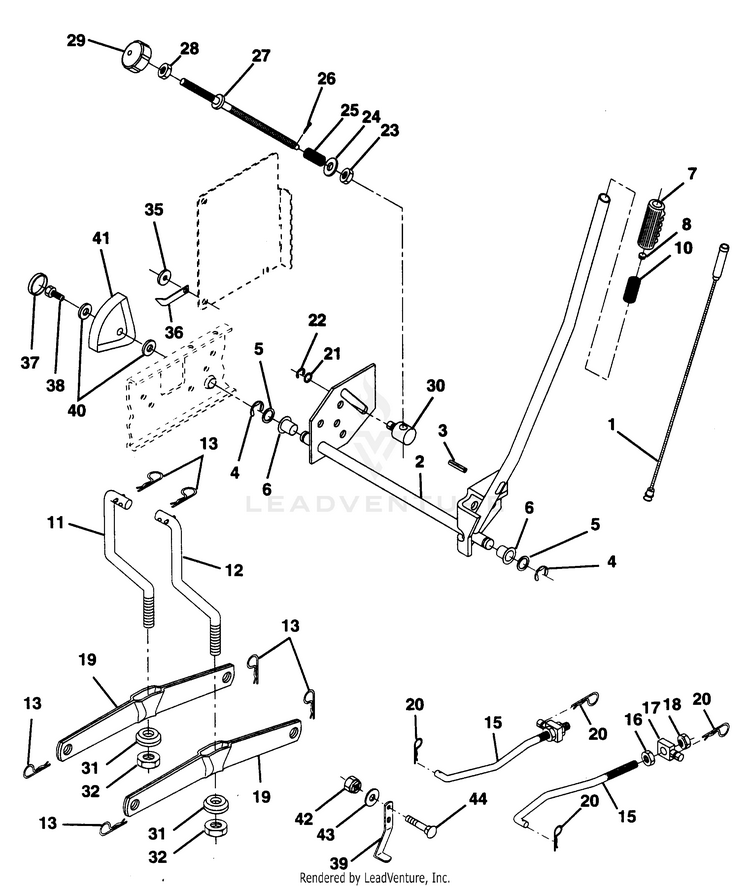

MOWER LIFT ASSEMBLY

...
...
1
Wire Asm Inner/Sprg W/plunger LT HUS-532159461
...
2
Shaft Asm Lift RH w/Inf W/T HUS-532136968
...
3
Pin Groove 1 500 Zinc HUS-532138284
...
4
E Ring #5133-62 HUS-812000002
...
5
Washer 21/32 X 1 X 21 Ga HUS-819211621
...
6
Bearing Nylon Blk 629 Id HUS-532120183
...
7
GRIP, HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
10
Spring Cprsn 3 750 Oiled HUS-532122512
...
11
LIFT LINK LH HUS-532145537
...
12
LIFT LINK RH HUS-532145536
...
13
RETAINER SPRING HUS-532085902
...
15
Link Front HUS-532127218
...
16
Nut Jam Hex 1/2-13 Unc HUS-873350800
...
17
Trunnion Blk Zinc HUS-532175689
...
18
NUT.1/2C.NYLOC HUS-539101331
...
19
Arm Suspension Rear HUS-532139868
...
20
SPRING RETAINER HUS-532003146
...
21
Washer 15/32 X 3/4 X 16 Ga HUS-819151216
...
22
Ring Klip #t5304-37 HUS-812000037
...
23
Nut Special HUS-532110807
...
24
Washer 13/32 X 5/8 X 16 Ga HUS-819131016
...
25
Spring Compression Inf. Hgt. HUS-532137150
...
26
COTTER PIN HUS-532003145
...
27
Rod Adj Lift Zinc 9 75 Wrk Lg HUS-532137167
...
28
Nut, Hex 3/8-16 HUS-873220600
...
29
Knob Inf 3/8-16 Unc Blk W/sym HUS-532138057
...
30
Trunnion Dp Stop Dbl Thds PLT HUS-532110810
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
32
Nut Crownlock 3/8-24 HUS-873540600
...
35
Washer Nylon .44 x .75 x .032 HUS-532120529
...
36
HEIGHT INDICATOR PNTR HUS-532123933
...
37
Plug Hole Blk 1.485/1.515 Dia. HUS-532123935
...
38
HCS.5/16-18X3/4 HUS-539976934
...
39
Stop over Center 44" 20/23" T 94 HUS-532142992
...
40
Washer 11/32 x 1-1/2 x 10 Ga. HUS-819112410
...
41
Scale Ind Height Blk HUS-532123934
...
42
Nut HUS-873680600
...
43
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
44
Bolt Carriage 3/8-16 x 1 HUS-872240608
