Husqvarna PP1844KA (1995) Tractor

Model: PP1844KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

CHASSIS AND ENCLOSURES

...
...
1
Chassis Weldment 11 Ga HUS-532145501
...
2
HUS-532145009
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
6
Saddle HUS-532145206
...
8
Clip Insulator HUS-532126471
...
9
Dash Black Yard Pro HUS-532140398
...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
11
Panel Pnt Dash Lh HUS-532145218
...
13
Panel Pnt Dash Rh HUS-532145217
...
14
Screw Thdrol 3/8 - 16 x Ty-TT HUS-817490608
...
15
Screw Mach Trhd 5/16 - 18 UNC x 3/4 HUS-874180512
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
17
Hood Pnt HUS-532144524
...
24
Bolt Fin Hex 3/8 - 16 Unc x 1 HUS-874780616
...
25
WASHER HUS-734117201
...
26
Nut HUS-873680600
...
27
Screw Hex WSHD 8-18 x 7/8 HUS-532161464
...
28
Grille Asm HUS-532131681
...
29
Lens/Clip Asm Bar Clear HUS-532146459
...
30
Fender Pnt HUS-532144523
...
31
Bracket Pnt Fender HUS-532137113
...
33
Footrest Pnt Lh HUS-532147947
...
34
Footrest Pnt Th HUS-532147948
...
35
Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4 HUS-872110606
...
36
Nut Pal HUS-532108067
...
38
Bracket Asm Pivot Lh HUS-532139886
...
44
Strap Asm. Fender HUS-532140675
...
45
Beze. Asem. HUS-532124392
...
47
Nut Push Nylon HUS-532105531
...
50
Support Pnt Dash HUS-532145205
...
51
NUT.1/4C.NYLOC HUS-539976978
...
56
Dash Extension HUS-532145151
...
59
SNAP BUSHING T HUS-532009151
...
64
DASH LOWER LT HUS-532150272
...
66
Plate Silkscreened Dash HUS-532142122
...
67
WASHER - 15X7.3X1.6 HUS-734116301
...
69
Strap Asm Pnt Hinge Rear (blk) HUS-532106784
...
70
Strap Asm Pnt Hinge Front HUS-532104618
...
71
Nut Keps Hex 1/4 - 20 UNC HUS-873640400
...
72
Strap Grille HUS-532147944
...
73
HCS.1/4-20.X1/2 HUS-539990071
...
75
BOLT HUS-532007605
...
77
Screw, Pan Hd. #10-24 UNC HUS-871191008
...
78
Washer Lock #10 HUS-810071000
...
79
NUT.WELD.#10-24 HUS-532002029
...
80
Latch Chute Blk HUS-532109808
...
81
KNOB BLK 1/2 NYLON HUS-532146525
...
82
SCREW.PAN.HEAD HUS-874981024
...
83
Spacer Split #10 x 3/4 Cad/Zin HUS-532007206
...
84
WASHER HUS-734114601
...
85
NUT HUS-873271000
...
86
Panel Pnt Rh Side HUS-532144526
...
87
Panel Pnt Lh Side HUS-532144525
...
90
WASHER - M6 HUS-734115201
...
91
NUT.HEX..25-20.UNC HUS-532050675
...
92
Washer Lock Hvy. Helical 1/4 HUS-810040400
...
xx
Cover Access Black Square Not Shown. HUS-532121794

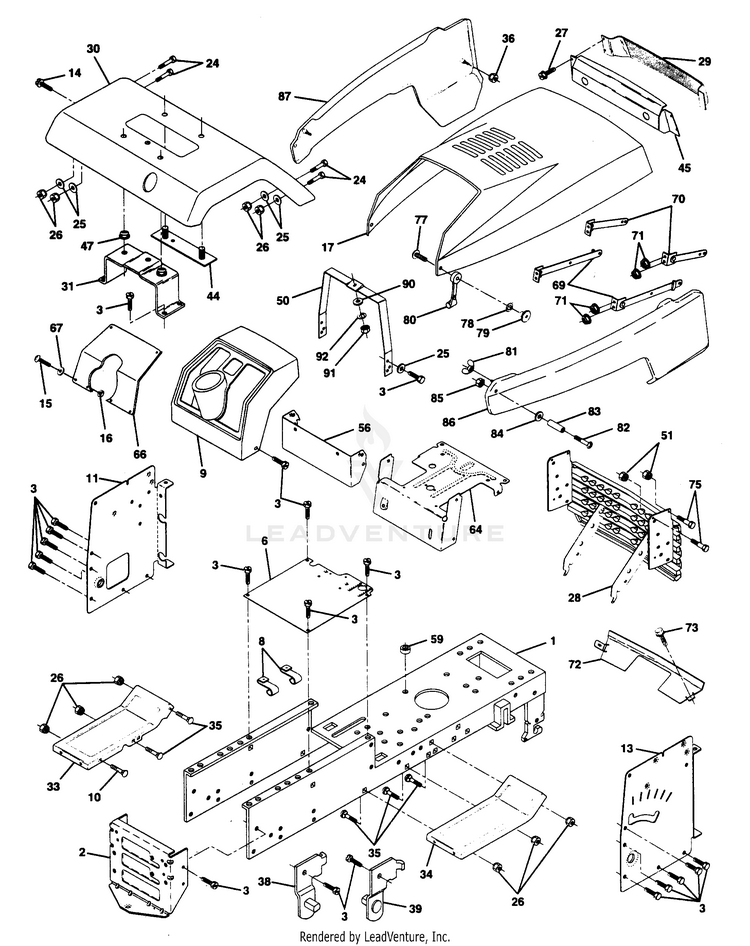

Schematic Image Zoomed
