Husqvarna PP1844KA (1995) Tractor

Model: PP1844KA (1995)

Back To Assemblies


product name

SEAT ASSEMBLY

...
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043

...
2
Bracket Pivot Seat 8 720 HUS-532140551

...
5
Clip Push-in Hinged HUS-532145006

...
7
SRPING.SEAT HUS-539110300

...
8
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508

...
9
Washer 13/32 x 1 x 12 Ga. HUS-819131612

...
10
PAN, SEAT HUS-532195530

...
11
Knob Seat Adj. Wingnut HUS-532166369

...
12
Bracket Mounting Switch HUS-532174648

...
13
Bushing Snap Blk Nyl 50 Id HUS-532121248

...
14
Bolt Rdhd Sht Nk 1/4-20x1-3/8 HUS-872050411

...
15
Spacer Split 28x 88 Yel Zinc HUS-532121249

...
16
Spring Cprsn 1 310 Blk Pnt HUS-532123740

...
17
Nut Crownlock 1/4-20 unc HUS-873680400

...
18
Cap Spring Seat HUS-532124238

...
21
Bolt Shoulder 5/16-18 Unc Blkz HUS-532139888

...
22
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500

...
24
Washer 17/32 X 1-3/16 X 12 Ga HUS-819171912

...
25
Bolt Shoulder 5/16-18 X 62 HUS-532127018

...
27
Screw Thdrol 3/8 - 16 x 1/2 Ty-TT HUS-817490608

...
28
Nut Crownlock 3/8-16 Unc HUS-873680600

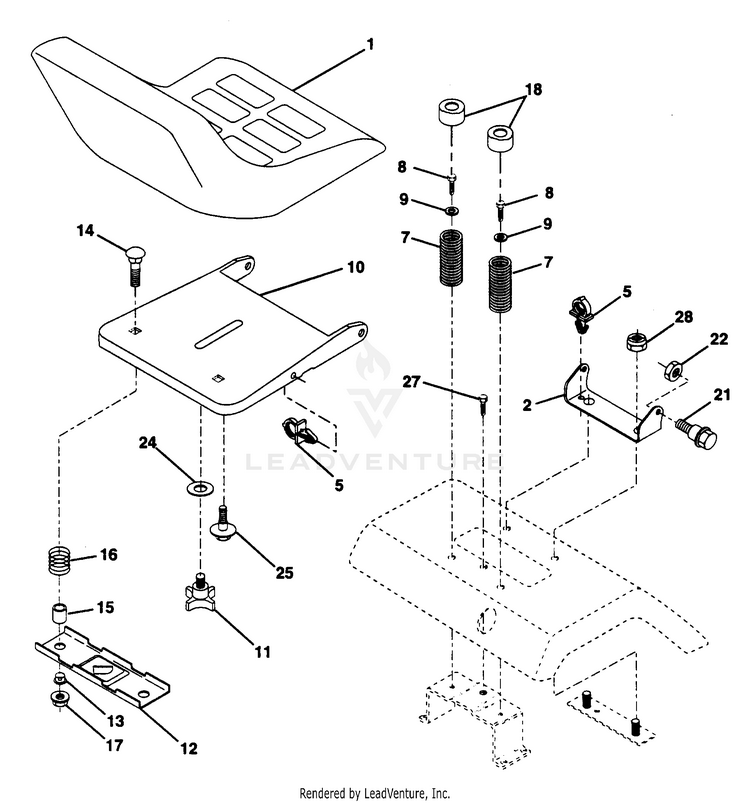

Schematic Image Zoomed
