Husqvarna PP1844 (1991) Tractor

Model: PP1844 (1991)

Back To Assemblies

Save Part Not Listed?
product name

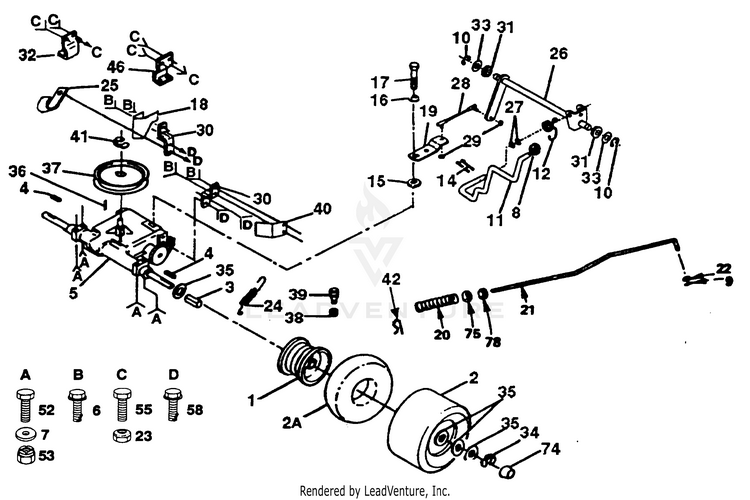

TRANSAXLE AND REAR WHEEL

...
...
1
Rim Asm 8" rear Service HUS-532125122
...
2
HUS-532138756
...
2A
Tube, Tire HUS-532007154
...
3
Spacer, Split HUS-532108097
...
4
SQ KEY HUS-532009396
...
5
Transaxle, Peerless HUS-532123797
...
6
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
7
Washer 11/32 x 3/4 x 14 Gauge HUS-819111214
...
8
Knob, Control HUS-532121274
...
9
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
10
Ring, Klip HUS-812000008
...
11
Rod Shifter HUS-532141002
...
12
Spring, Torsion HUS-532123782
...
14
Pin, Cotter 1/8 x 1 HUS-876020416
...
15
Washer, Shift Plate HUS-532105701
...
16
WASHER - M6 HUS-734115201
...
17
Bolt, Hex 1/4-28 x 3/4 Grade 8 HUS-871040412
...
18
Keeper, Belt, Transaxle, LH HUS-532123791
...
19
Arm, Shift HUS-532123794
...
20
Spring, Rod, Brake HUS-532126909
...
21
Rod, Brake HUS-532123786
...
22
Washer 13/32 x 13/16 x 16 Gauge HUS-819131316
...
23
Locknut 3/8-16 HUS-873680600
...
24
Spring Return Brake HUS-532146682
...
25
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
26
Shaft Assembly, Shifter HUS-532123772
...
27
BUSHING HUS-734117771
...
28
LINK, TRANSAXLE HUS-532166230
...
29
NUT HUS-873610400
...
30
Strap, Torque HUS-532123787
...
31
Bushing, Steering Rod HUS-532071208
...
32
Bracket, Transaxle, LH HUS-532123780
...
33
Washer 21/32 x 1-1/4 x 16 Gauge HUS-819212016
...
34
E-Ring HUS-812000053
...
35
Washer 1-1/32 x 1-5/8 x 16 Gauge HUS-532123800
...
36
Woodruff Key 3/16 x 3/4 HUS-532125096
...
37
Pulley, Transaxle HUS-532121327
...
38
Cap, Valve HUS-532059192
...
39
Stem, Valve HUS-532065139
...
40
Keeper, Belt, Transaxle, RH HUS-532123792
...
41
Ring, Retainer HUS-812000004
...
42
RETAINER M HUS-532004497
...
46
Bracket, Transaxle, RH HUS-532123776
...
52
Bolt, Hex 5/16-18 x 2-3/4 HUS-874780544
...
53
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
55
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
58
HCS.5/16-18X3/4 HUS-539976934
...
74
Cap, Axle HUS-532104757
...
75
Nut HUS-873680600
...
78
Nut, Hex 3/8-16 HUS-873220600
