Husqvarna PP1844 (1991) Tractor

Model: PP1844 (1991)

Back To Assemblies

Save Part Not Listed?
product name

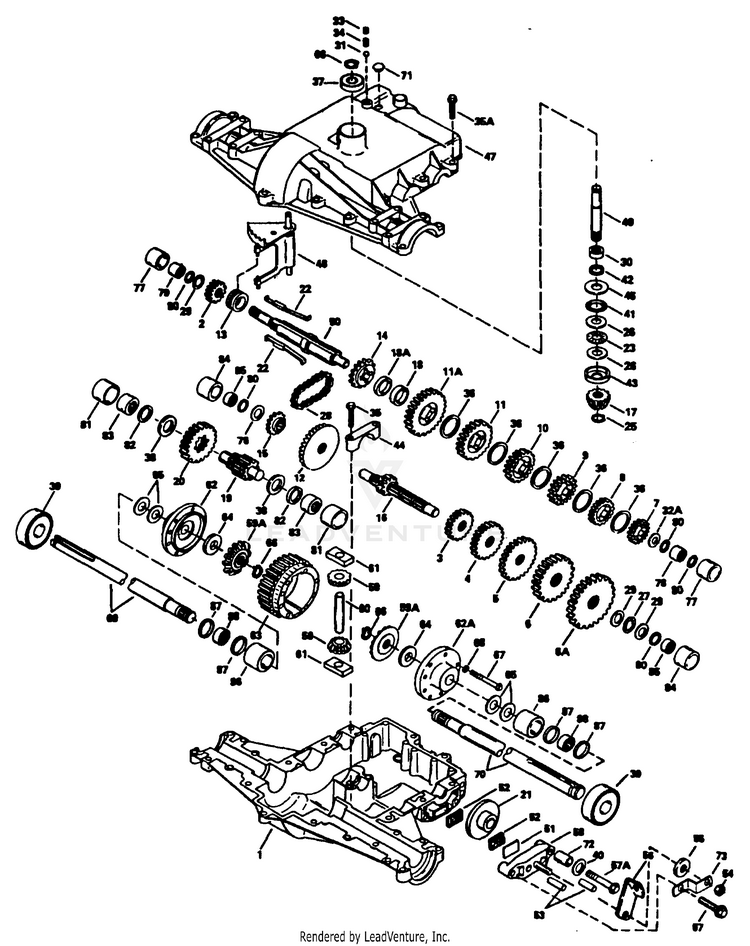

TRANSAXLE - PEERLESS MODEL NUMBER 820-016

...
...
1
Case, Transaxle HUS-770088
...
2
Gear, Spur (15 teeth) HUS-778253
...
3
Gear, Spur (12 teeth) HUS-778211
...
4
Gear, Spur (18 teeth) HUS-778240
...
5
Gear, Spur (25 teeth) HUS-778201
...
6
Gear, Spur (28 teeth) HUS-778202
...
6A
Gear, Spur (31 teeth) HUS-778208
...
7
Gear, Spur (19 teeth) HUS-778209
...
8
Gear, Spur (22 teeth) HUS-778203A
...
9
Gear, Spur (25 teeth) HUS-778204A
...
10
Gear, Spur (32 teeth) HUS-778239A
...
11
Gear, Spur (37 teeth) HUS-778207A
...
11A
Gear, Spur (41 teeth) HUS-778216A
...
12
Gear, Bevel (33 teeth) HUS-778246
...
13
Collar, Shift HUS-784216
...
14
Sprocket (18 teeth) HUS-786123
...
15
Sprocket (9 teeth) HUS-786082
...
16
Shaft, Counter (w/9 tooth gear) HUS-776291
...
17
Bevel Pinion, Input (13 teeth) HUS-778245
...
18
Spacer, Neutral (.350/.340 thick) HUS-786121
...
18A
Spacer, Neutral (.276/.268 thick) HUS-786122
...
19
Shaft, Output (9 teeth) HUS-776275
...
20
Gear, Output (35 teeth) HUS-778247
...
21
Disk, Brake HUS-790043
...
22
Key HUS-792138
...
23
Bearing, Thrust HUS-780084
...
25
Ring, Retaining HUS-788040
...
26
Washer, Thrust HUS-780051
...
27
Bearing, Thrust HUS-780071
...
28
Chain, Roller (No. 41 chain, 24 links) HUS-786081
...
29
Washer, Thrust HUS-780072
...
30
Bearing, Needle HUS-780155
...
31
Ball, Steel HUS-792077
...
32A
Washer, Thrust HUS-780139
...
33
Screw, Set, 3/8-16 x 3/8 HUS-792078
...
34
Spring HUS-792079
...
35
Screw, Flanged hex hd. thread-forming, 1/4-20 x 1-1/4 HUS-792073
...
35A
Screw, Hex hd. thread forming, 5/16-18 x 1-1/4 HUS-792129
...
36
Washer, Thrust HUS-780108
...
37
Bearing, Ball HUS-780119
...
38
Washer, Thrust HUS-780128
...
39
Bearing, Ball HUS-780050
...
40
Washer, Flat HUS-792128
...
41
"O" Ring HUS-788077
...
42
Seal, Oil HUS-788042
...
43
Washer, Cupped HUS-780166
...
44
Cap, Bearing HUS-786131
...
45
Washer, Flat HUS-780165
...
47
Cover, Transaxle HUS-772098
...
48
Rod & Fork Assy., Shift HUS-784342
...
49
Shaft, Input HUS-776274
...
50
Shaft, Brake (4 Keyed) HUS-776313
...
51
Plate, Brake pad HUS-790007
...
52
Pad, Brake HUS-790006
...
53
Pin, Dowel HUS-786026
...
54
Locknut, 5/16-24 HUS-792075
...
55
Washer, Flat HUS-792076
...
56
Lever, Brake HUS-790047
...
57
Screw, Flanged hex hd. thread-forming, 1/4-20 x 1-1/4 HUS-792073
...
57A
Screw, Flanged hex hd. thread-forming, 1/4-20 x 2-1/4 HUS-792085
...
58
Holder, Brake pad HUS-790025
...
59
Pinion, Differential bevel HUS-778197
...
59A
Gear, Bevel HUS-778198
...
60
Pin, Drive HUS-786019
...
61
Block, Drive HUS-786027
...
62
Carrier, Differential (Threaded holes) HUS-774833
...
62A
Carrier, Differential HUS-774834
...
63
Gear, Ring (31 teeth) HUS-778248
...
64
Washer HUS-780107
...
65
Washer, Thrust HUS-780042
...
66
Ring, Snap HUS-792018
...
67
Screw, Hex hd., 1/4-20 x 2-1/4 HUS-792020
...
68
Lockwasher, 1/4" HUS-792006
...
69
Axle (12-5/16" long) HUS-774832
...
70
Axle (16-3/16" long) HUS-774831
...
71
Plug, Hex hd., 9/16-18 thread HUS-792074
...
72
Spacer HUS-786067
...
73
Bracket, Brake lever HUS-786086
...
76
Washer HUS-780153
...
77
Sleeve (stepped) HUS-786144
...
78
Bearing, Needle HUS-780150
...
79
Bearing, Needle (capped) HUS-780152
...
80
"O" Ring HUS-792001
...
81
Sleeve (stepped) HUS-786142
...
82
Ring, Square cut HUS-788071
...
83
Bearing, Needle (capped) HUS-780049
...
84
Sleeve (stepped) HUS-786143
...
85
Bearing, Needle (capped) HUS-780151
...
86
Sleeve (stepped) HUS-786145
...
87
Ring, Square cut HUS-788070
...
88
Bearing, Needle HUS-780031
